2 Preparations for the Programming
10 Programming Instructions E-Tacho 1323.02
2.3 Connection STC 1601.25 to the E-Tacho
1. Connect STC via the programming line E-Tacho to the E-
Tacho 1323.02 as shown in Fig. 4.
Programming line E-Tacho
Plug A white Õ Mounting plug A
B yellow Õ B
D brown Õ D
2. Connect the power supply line Pos. 4, to the
programming line E-Tacho.
3. Connect power supply line to STC.

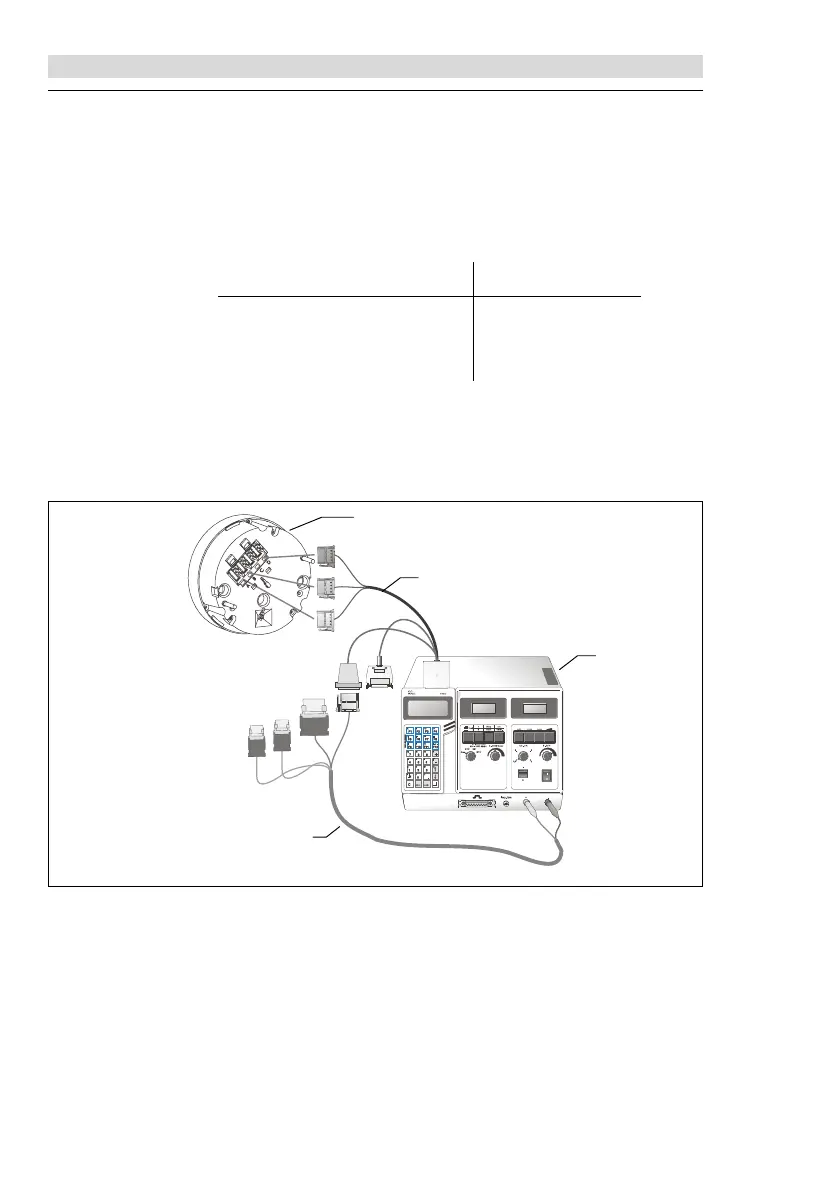

Fig. 4: Wiring diagram E-Tacho programming by means of STC
(1) E-Tacho 1323.02 (3) STC 1601.25
(2) Programming line E-Tacho (4) Power supply line
(Accessories STC 1601.25)
1
2
4
3
