q Power indicator
This is lit as follows according to the power status:
•Power on : O
•Normal standby : Red
•When “HDMI PassThrough” (vpage 129) or “HDMI Control”
(vpage129) is set to “On” : Orange
•When “IP Control” (vpage149) is set to “Always On” : Orange
w Power operation button (X)
This turns the power on/o (standby) (vpage44).
e Headphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be
output from the connected speakers or from the PRE OUT connectors.
NOTE
•To prevent hearing loss, do not raise the volume level excessively when using
headphones.
r SETUP MIC jack
Used to connect the supplied Setup and measurement microphone
(vpage139).
t M-DAX button
This enables the M-DAX mode (vpage124).
y SLEEP button
This sets the sleep timer (vpage105).
u Tuner preset channel buttons (PRESET CH +, –)
These select preset FM radio stations (vpage58).
i DISPLAY button
This displays various pieces of information (vpage153).

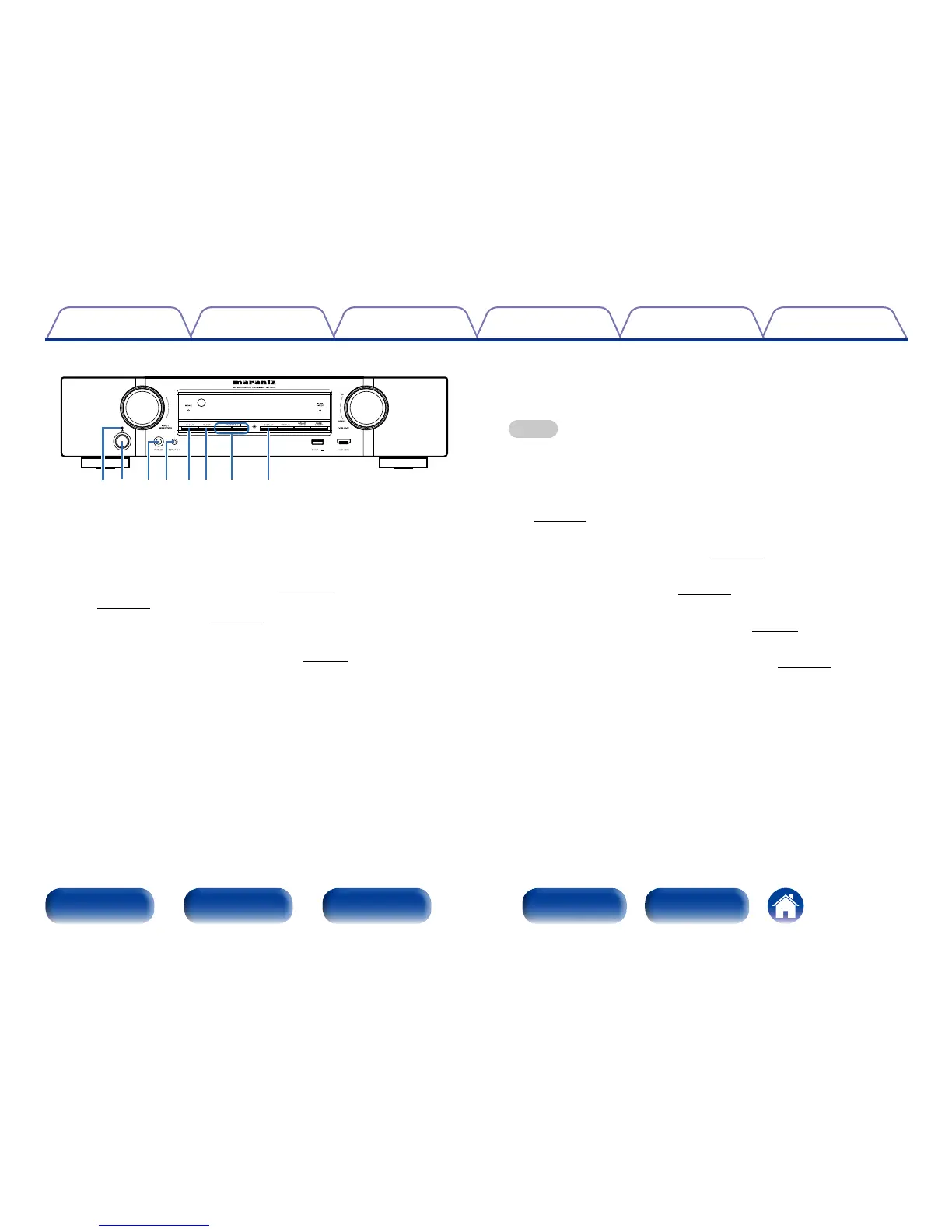

q er y utw i
