122

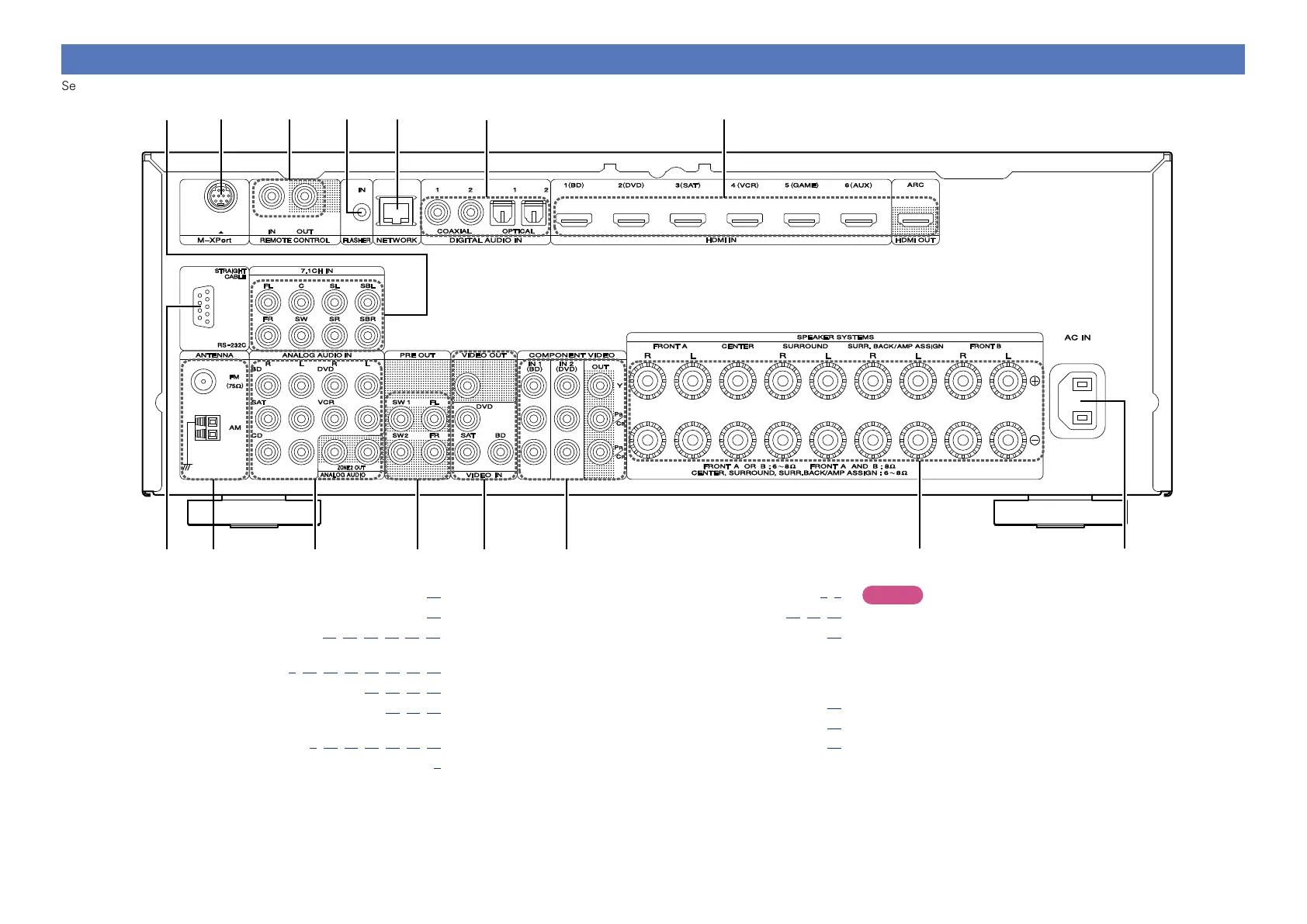

Rear panel
See the page indicated in parentheses ( ).
o
q w
e r t y u i
Q0
Q5 Q2Q3Q4 Q1
q RS-232C connector ·································································· (66)
w FM/AM antenna terminals ····················································· (15)
e Analog audio connectors ·························· (11, 12, 13, 15, 16, 17)
r PRE OUT connectors
·················································· (C 6, 17, 58, 59, 60, 61, 62, 63)
t VIDEO connectors ················································· (10, 11, 12, 13)
y COMPONENT VIDEO connectors ······························· (10, 11, 12)
u Speaker terminals
························································ (C 6, 58, 59, 60, 61, 62, 63)
i AC inlet (AC IN) ·································································· (C 5)
o HDMI connectors ··························································· (C 3, 8)
Q0 Digital audio connectors ············································· (10, 12, 15)
Q1 NETWORK connector ······························································ (18)
Q2 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q3 REMOTE CONTROL jacks ······················································· (66)
Q4 M-XPort connector ·································································· (16)
Q5 7.1CH IN connectors ································································ (16)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
