Marantz SR5006 - Part Names and Functions; Front Panel

120

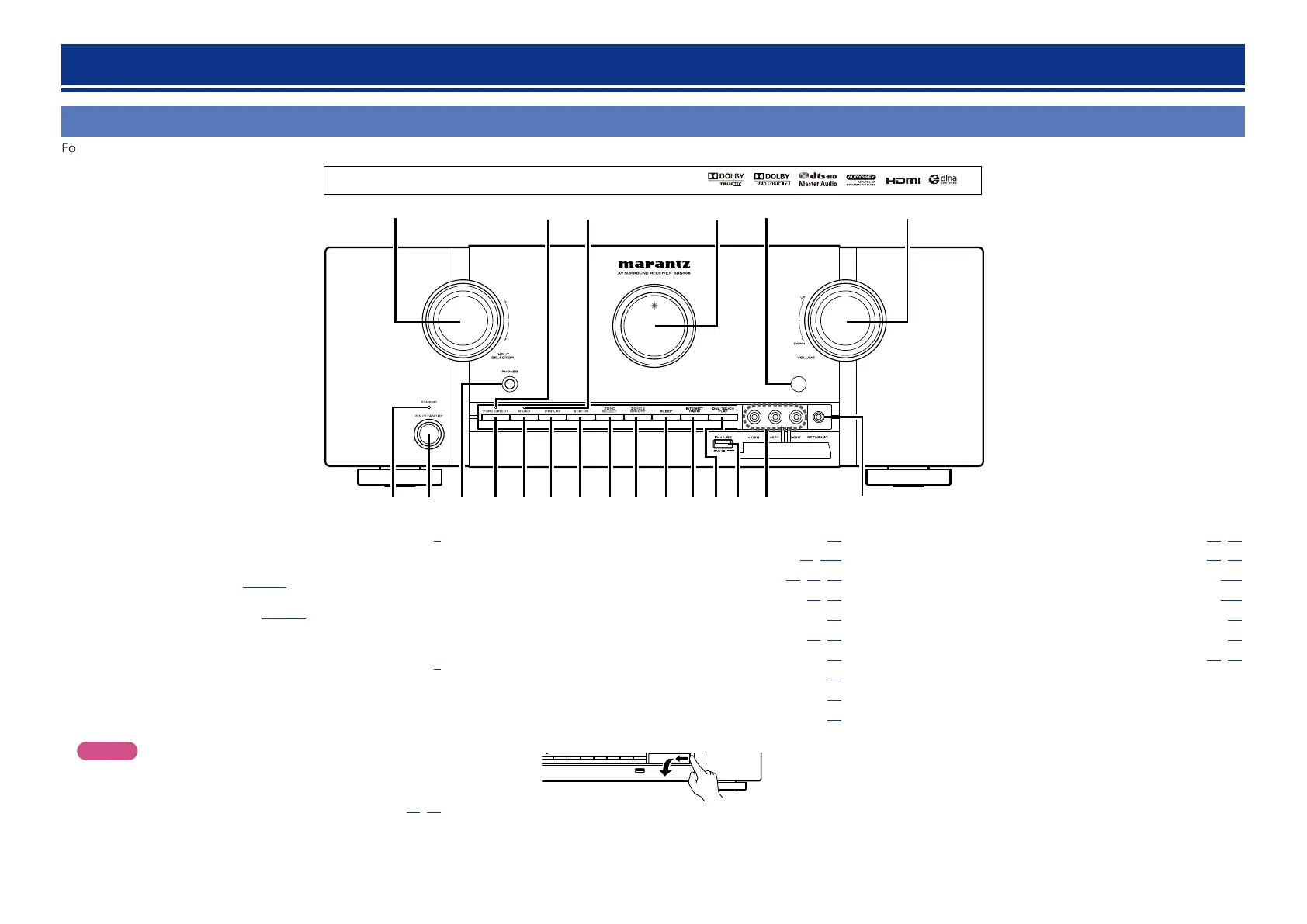

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
W1
Q8Q8Q8Q8
Q9W0 Q7 Q6
Q5Q3r t y u i o Q0 Q1 Q2 Q4wq e
q Power indicator (STANDBY) ············································ (C 5)
GPower indicator status in standby modeH
•Normal standby : Red
•When “HDMI Control” (vpage95)
is set to “ON” : Orange
•When “Network Standby” (vpage99)
is set to “ON” : Orange
w Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r PURE DIRECT button ························································ (51, 76)
Q5 SETUP MIC jack ································································· (21, 64)
Q6 VOLUME control knob ······················································ (27, 79)
Q7 Remote control sensor ························································· (124)
Q8 Display ···················································································· (121)
Q9 M-DAX indicator ······································································ (89)
W0 PURE DIRECT indicator ··························································· (51)
W1 INPUT SELECTOR knob ···················································· (26, 79)
t M-DAX button ········································································· (89)
y DISPLAY button ······························································· (76, 102)
u STATUS button ··························································· (29, 70, 76)
i ZONE SELECT button ······················································· (76, 79)
o ZONE2 ON/OFF button ··························································· (79)
Q0 SLEEP button ····································································· (68, 79)
Q1 INTERNET RADIO button (V) ··············································· (39)
Q2 ONE TOUCH PLAY button ······················································ (32)
Q3 iPod/USB port ········································································· (14)
Q4 AUX INPUT connectors ·························································· (13)
Remove the cap covering the connectors when you want to use
them.
Part names and functions
Basic version
Advanced version
InformationInformation
