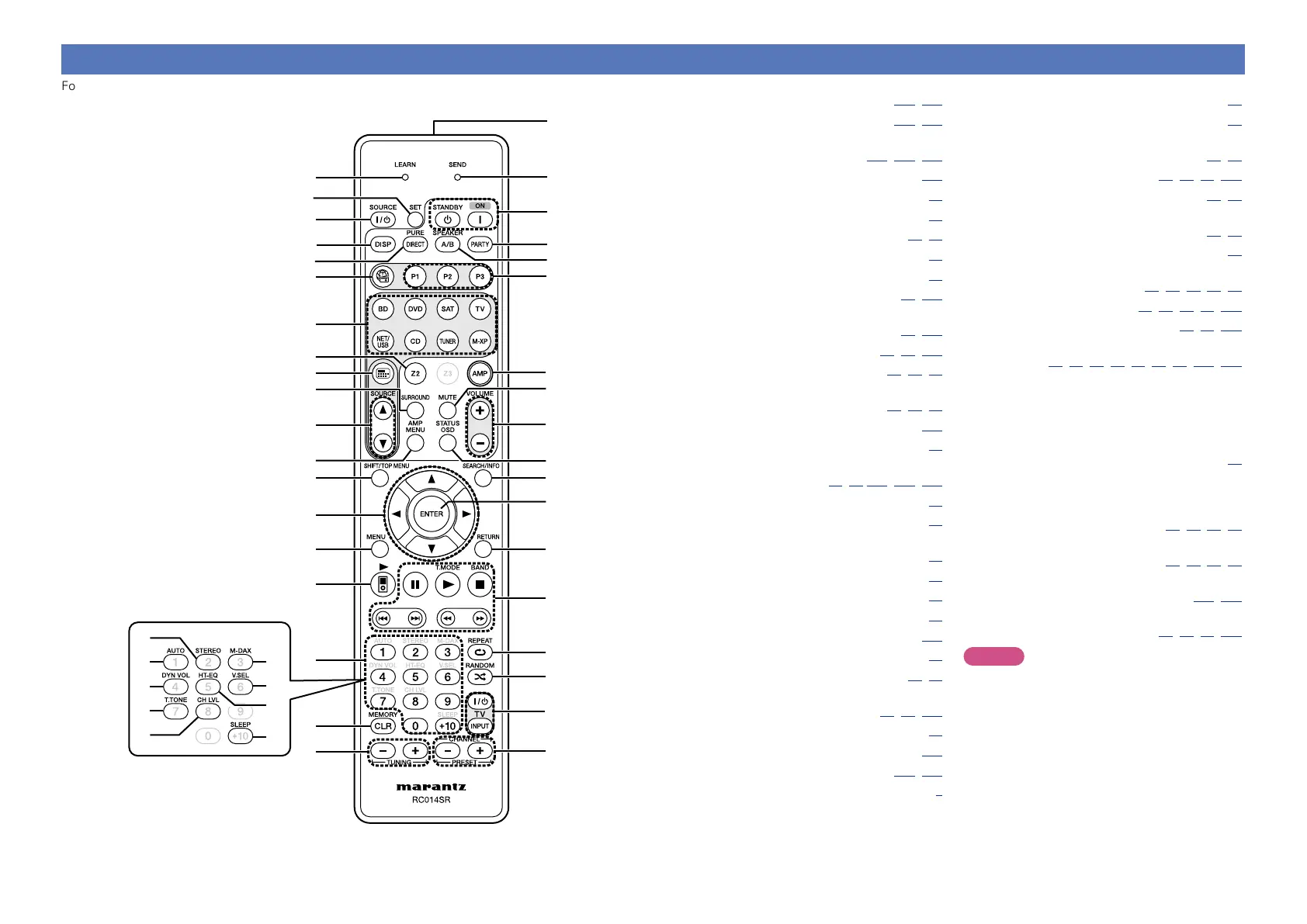

Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
r
e
w
q
y
u
o
Q1
Q3
Q5
Q6
Q7
Q9
Q8
W3
W4
W6
W5
W0
W1
W2
W7
W8
Q4
Q2
Q0
t
i
R5
R6
R4
R3
R2
R1
E9
E8
E7
E4
E5
E2
E1
E0
W9
E3
E6
R0
q LEARN indicator ······························· (113, 117)
w SET button ········································ (113, 117)
e SOURCE power button
(Z / X) ·········································· (113, 115,116)
r Display button (DISP) ······························· (102)
t PURE DIRECT button ································· (51)
y Internet radio button (V) ························· (39)
u Input source select buttons ················· (26, 79)
i Zone mode buttons (Z2) ···························· (79)
o Source select menu button (3) ··············· (27)
Q0 SURROUND button ···························· (51, 117)
Q1 Source select buttons
(SOURCE d f) ····································· (26, 113)
Q2 AMP MENU button ······················ (85, 91, 105)
Q3 SHIFT/TOP MENU button ·············· (34, 40, 83)
Q4 Cursor buttons
(uio p) ·········································· (82, 83, 97)
Q5 MENU button ············································ (115)
Q6 iPod play button (21) ······························· (30)
Q7 Number buttons
········································ (34,40 113, 115,116)
Q8 STEREO button ··········································· (51)
Q9 AUTO buttons ············································· (51)
W0 Audyssey Dynamic Volume
®
button
(DYN VOL) ··················································· (88)
W1 Test tone button (T.TONE) ························ (94)
W2 Channel level button (CH LVL) ·················· (69)
W3 M-DAX button ············································ (89)
W4 Video select button (V.SEL) ···················· (108)
W5 HT-EQ button ·············································· (86)
W6 SLEEP button ········································ (68, 79)
W7 Clear (CLR)/MEMORY button
······················································· (40, 41, 116)
W8 TUNING buttons (+, –) ······························· (33)
W9 Remote control signal transmitter ········· (124)
E0 SEND indicator ································· (113, 117)
E1 Power buttons (ON, STANDBY) ·········· (C 5)
E2 PARTY button ············································· (71)
E3 SPEAKER A/B button ································· (27)
E4 Preset channel buttons
(P1 – P3) ················································· (40, 41)
E5 AMP button ····························· (20, 64, 69, 112)
E6 Muting button (MUTE) ························ (27, 79)
E7 Volume control buttons
(VOLUME +, –)· ····································· (27, 79)
E8 STATUS OSD button ································· (90)
E9 SEARCH/Information (INFO) button
············································· (29, 31, 34, 49, 84)
R0 ENTER button ··················· (82, 83, 85, 91, 105)
R1 RETURN button ···························· (85, 91, 105)
R2 System buttons
················· (30,32,42,44,46,48,50,115,116)
•Pause button (3)
•Play button (1)
•Stop button (2)
•Skip buttons (8, 9)
•Search buttons (6, 7)
Tuner system buttons ································ (34)
•FM/AM band switching button (
BAND)
•Tuning mode button (T.MODE)
R3 REPEAT button (0)
··················································· (30, 32,44,50)
R4 RANDOM button (1)
··················································· (30, 32,44,50)
R5 TV operation buttons
(TV Z / X / INPUT) ····························· (115,116)
R6 CHANNEL/PRESET buttons
(+, –) ········································· (34, 40, 72, 116)
NOTE
The Z3 button cannot be used.
Basic version
Advanced version
InformationInformation
vSee overleaf
