Connecting a external power amplifier
•You can use this unit as a pre-amp by connecting a commercially available power amp to the PRE OUT
connector. Adding a power amp to each of the channels provides an even greater sound presence.
•Select the terminal to use and connect the device.

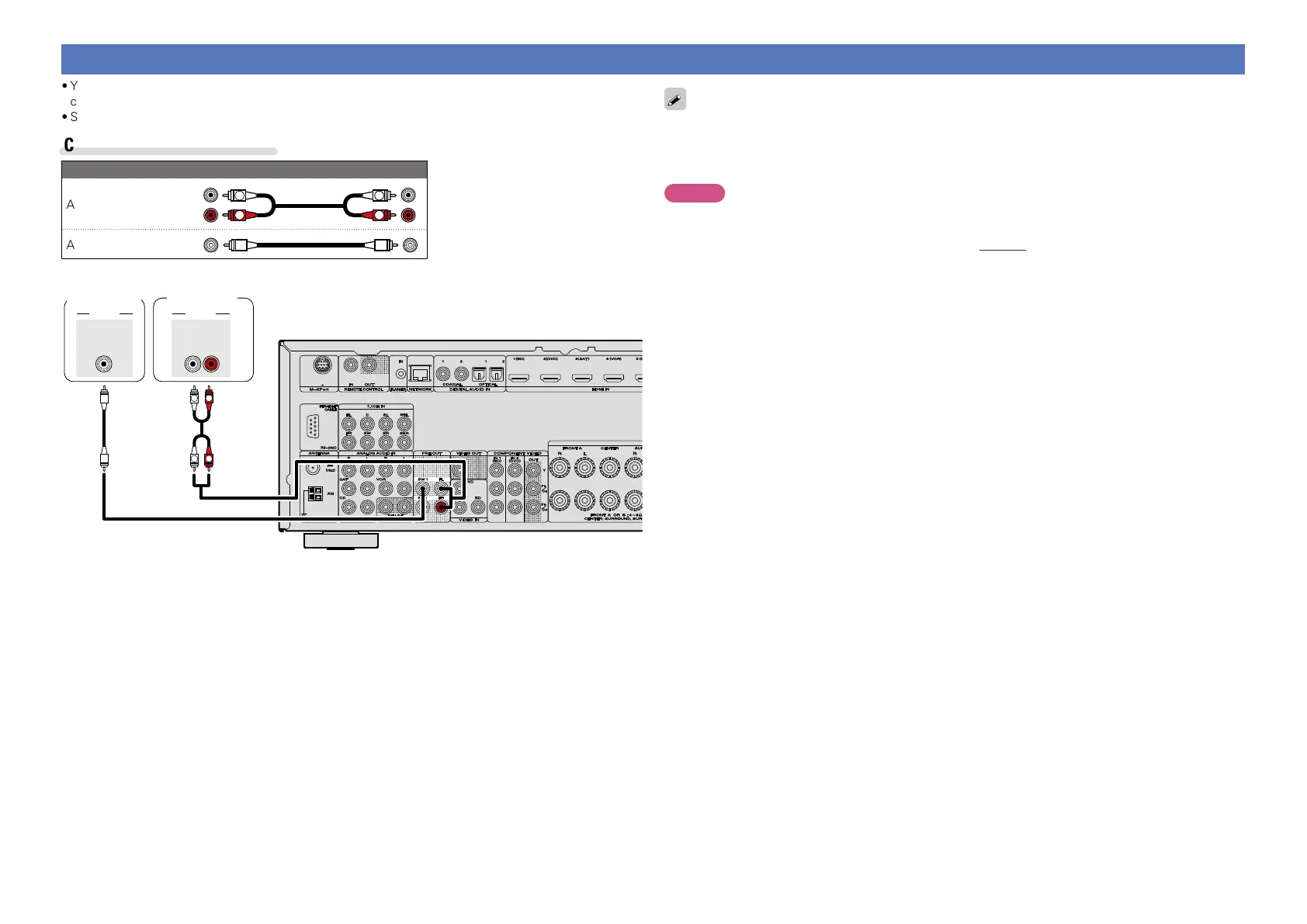

Cables used for connections
Audio cable (sold separately)
Audio cable
R
L
R
L
Audio cable
L
L
R
R
SUB-
WOOFER
1
FRONT
RL
AUDIOAUDIO
Power
amplifier
Subwoofer
•When using just one surround back speaker, connect it to the left channel (L) terminal.
•Use the volume control on the subwoofer to control subwoofer volume.
•If the subwoofer volume sounds low, use the volume control provided on the subwoofer to adjust the
volume.
NOTE
•When external power amplifier have been connected to PRE OUT terminals, do not connect the speakers
to the speaker terminals.
•Depending on the settings in the “Amp Assign” (vpage 92) menu or listening mode, the channel
output from the SBL terminal or SBR terminal of the PRE OUT terminal differs.
