Marantz SR5008/U1B - PCB HDMI Disassembly

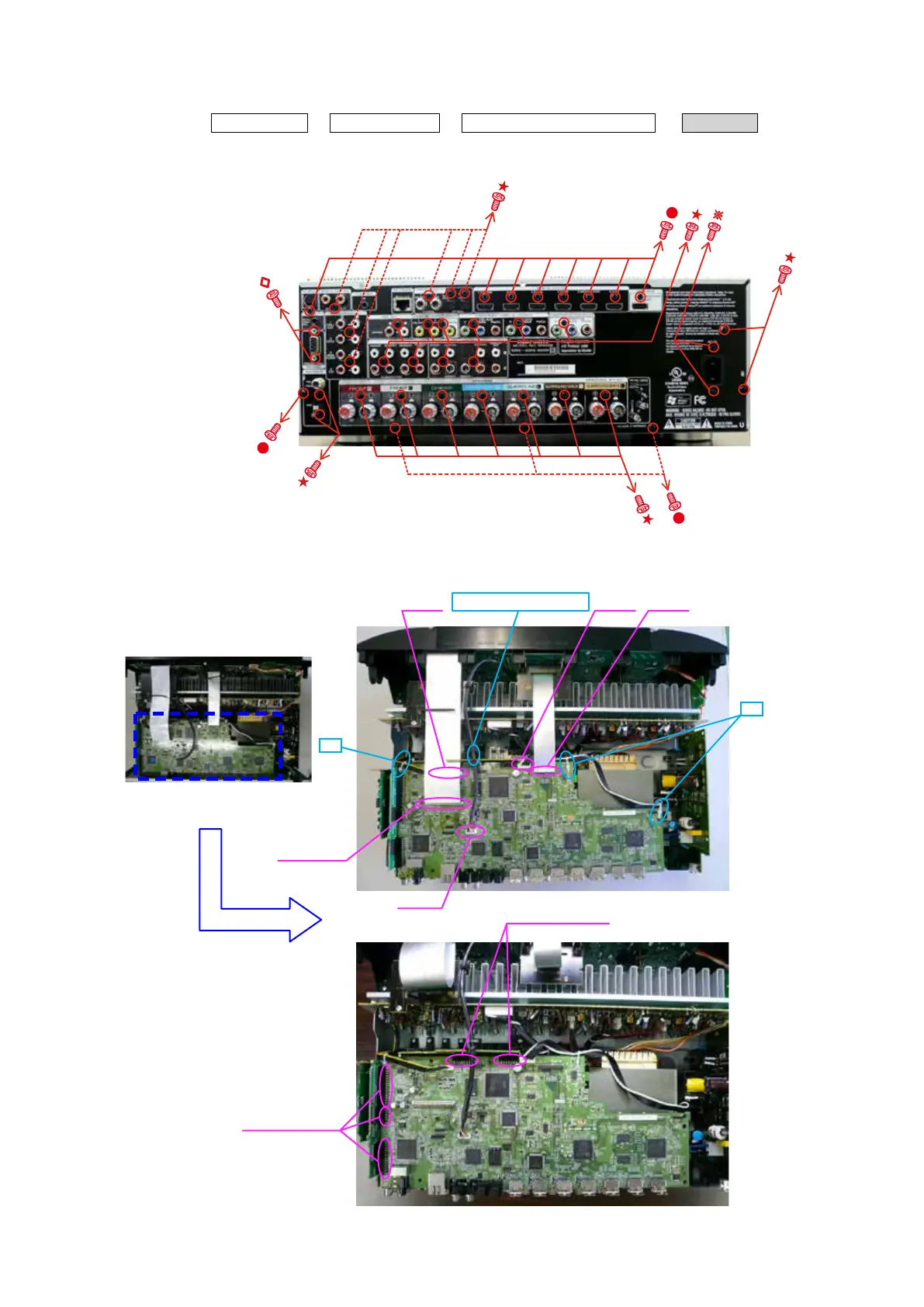

3. PCB HDMI
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
PCB HDMI
(1) Remove the screws.
(2)
Cut the wire clamp band, then disconnect the connector wires and FFC, disconnect the connector board and HOLDER.
Shooting of photograph: A
N2801
FFC cable
Board to board
Board to board
FFCN3601N3405
cut
cut
STYLE PIN : Loosen
15
