Marantz SR5008/U1B - Video Conversion Function

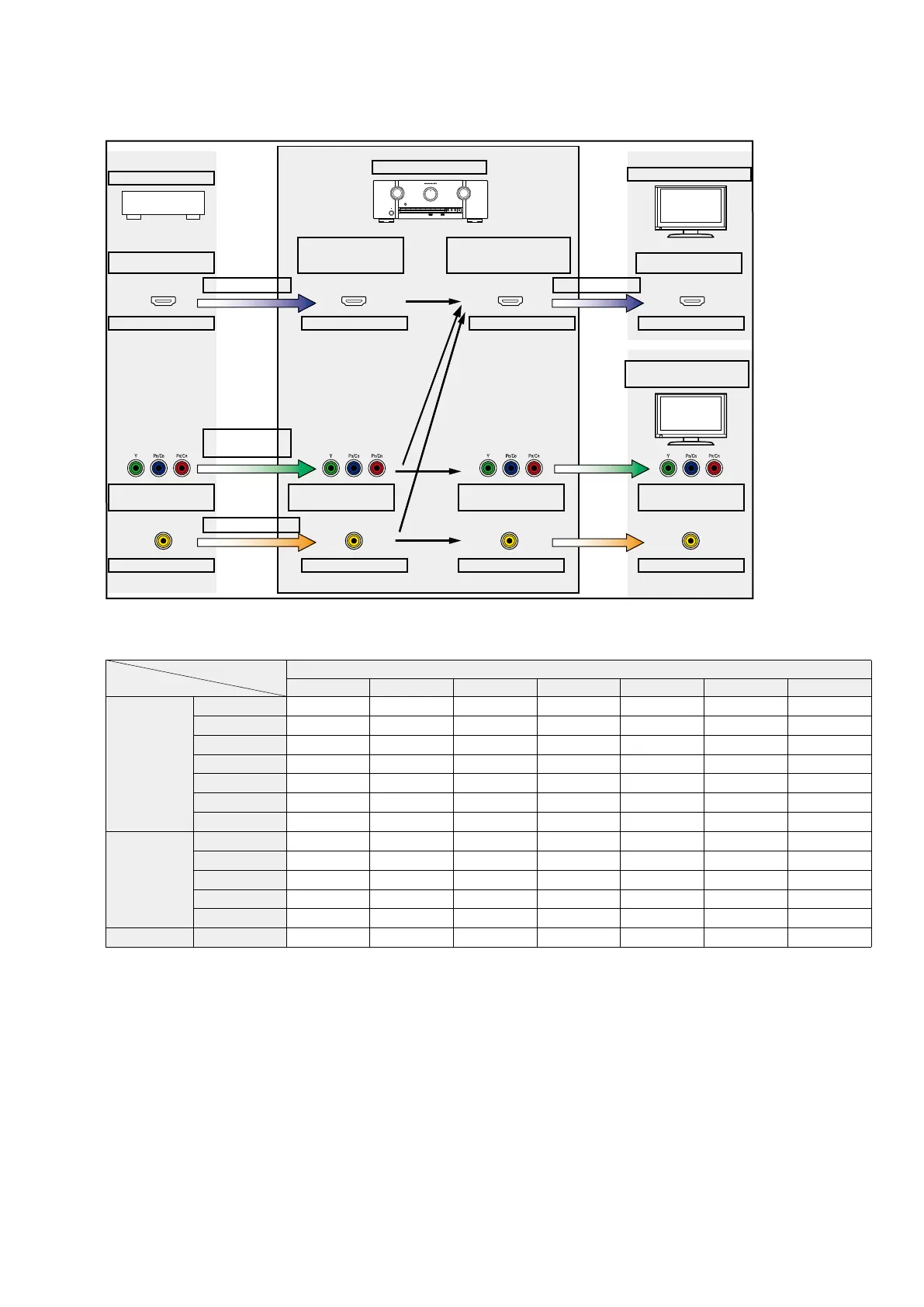

HDMI connector
HDMI signal HDMI signal
Component video
signal
Video signal
Video connector
HDMI-compatible TV
HDMI connector
Component video
connectors
Component video
connectors
Video connector
HDMI connectorHDMI connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
HDMI-incompatible TV
Video connector
Component video
connectors
Component video
connectors
Video connector
This unit can convert the input video signals to the resolution that is set for “Resolution” in the menu before outputting them to the TV.
Output signal
Input signal
HDMI
480i/576i 480p/576p 720p 1080i 1080p 1080p 24Hz 4K 30/25/24Hz
HDMI
480i/576i
P P P P P P P
480p/576p
P P P P P P
720p
P P P P P
1080i
P P P P P
1080p 24Hz
P P P
1080p
P P P
4K 30/25/24Hz
P
Component
Video
480i/576i
P P P P P P P
480p/576p
P P P P P P
720p
P P P P P
1080i
P P P P P
1080p
P P P
Video 480i/576i
P P P P P P P
The main zone video conversion function is
compatible with the following formats: NTSC, PAL,
SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.
VIDEO CONVERSION FUNCTION
This unit automatically converts the input video signals as shown in the diagram below before outputting them to the TV.
