Marantz SR5008/U1B - Pcb Video; Pcb Recout

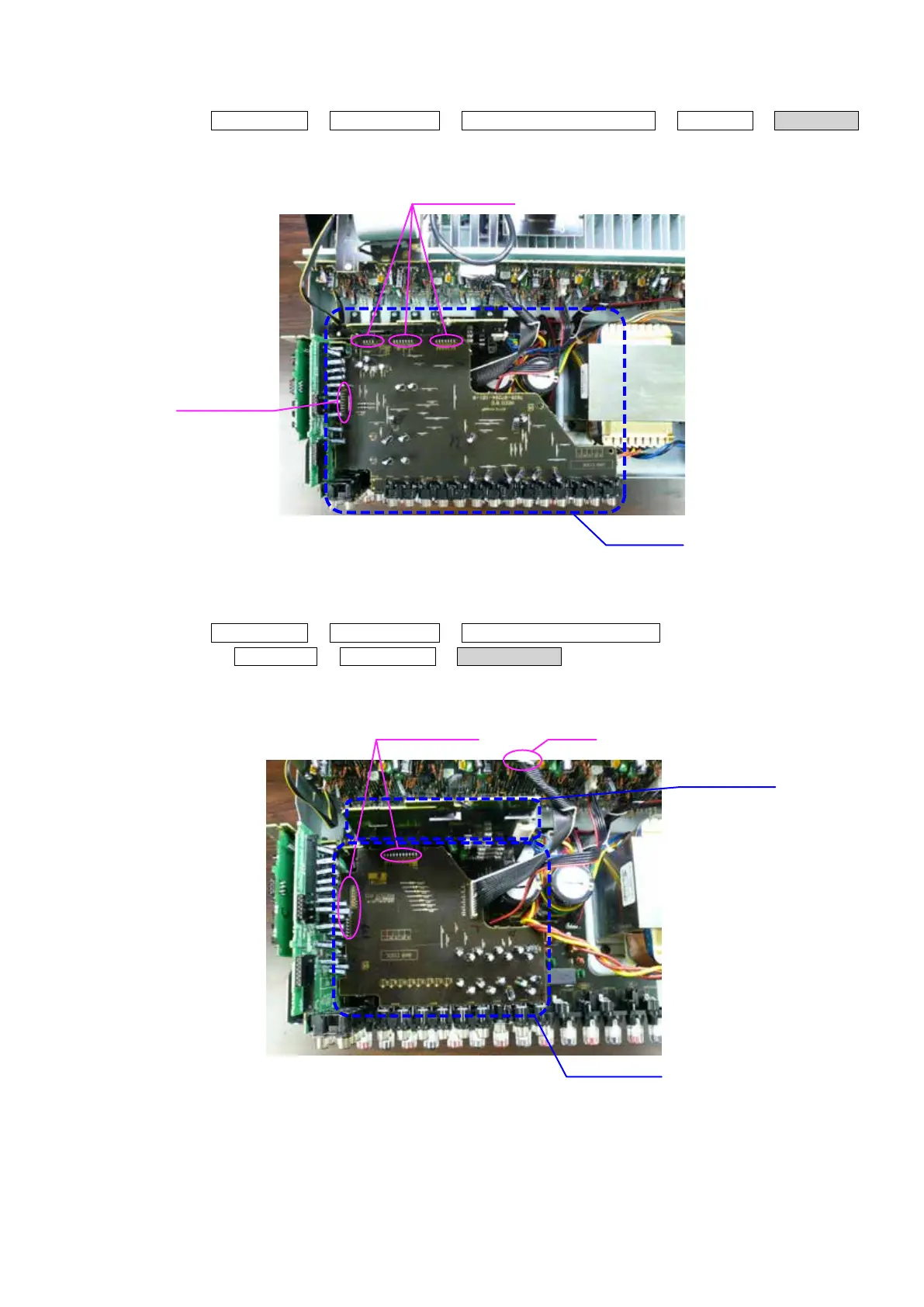

5. PCB VIDEO
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
PCB HDIM
→
PCB VIDEO
(1) Disconnect the connector board.
6. PCB RECOUT
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
PCB VIDEO
→
PCB PREOUT
(1) Disconnect the connector wire and disconnect the connector board.
PCB VIDEO
Board to board
Board to board
PCB PREOUT
Board to board
CP401
PCB FRONT CNT
17
