Marantz SR5008/U1B - Radiator Assy

9. RADIATOR ASSY
Proceeding : TOP COVER
→
RADIATOR ASSY

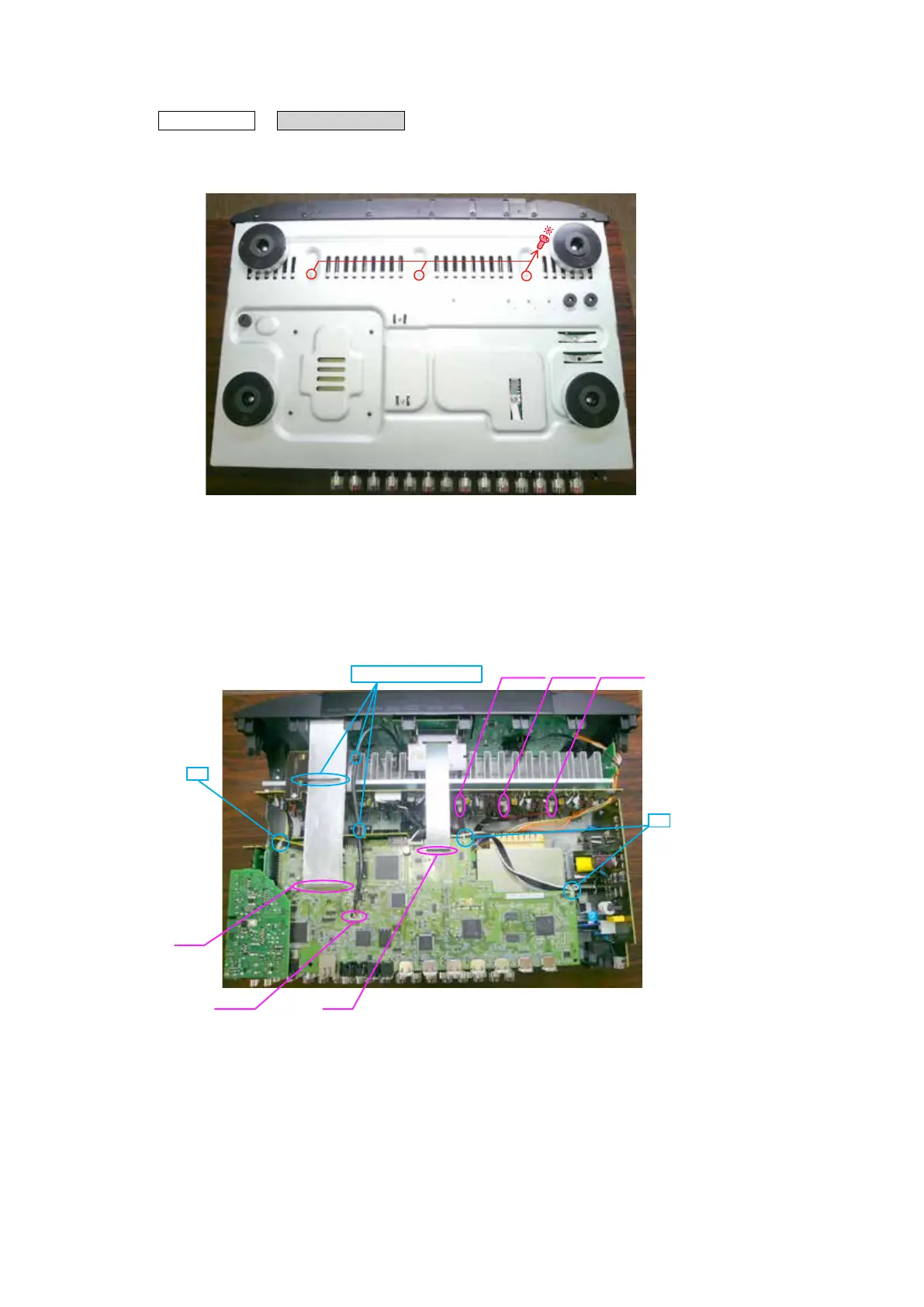

(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Remove the screws.
View from the bottom
STYLE PIN : Loosen
cut
cut
N2801
FFC
FFC
CP402 CP403 CP405
20
