Marantz SR5008/U1B - Power Trans Main

4. POWER TRANS MAIN
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
POWER TRANS MAIN
(1)

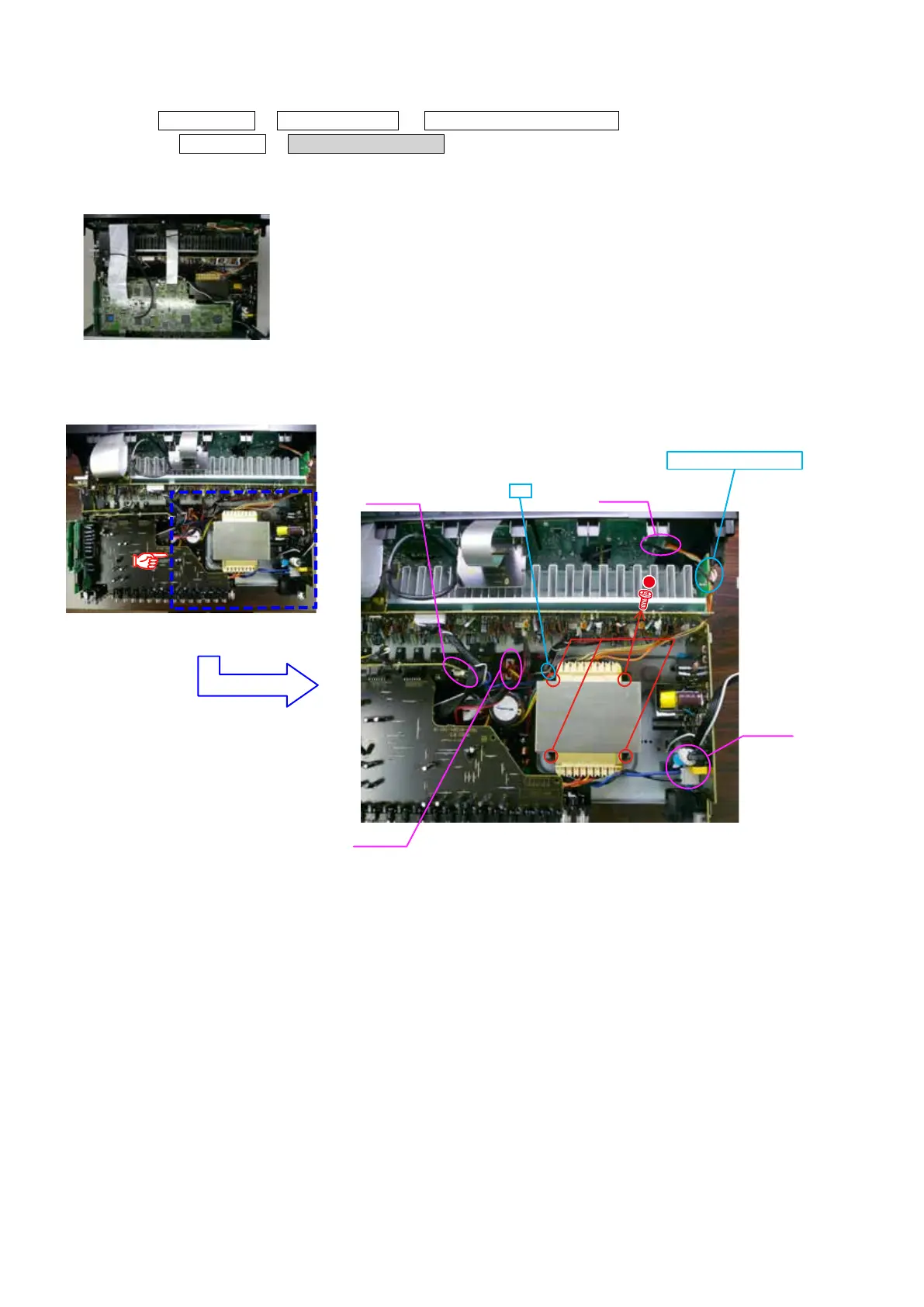

Remove the "PCB MX PORT/PCB RC232C" and "PCB HDMI"
.
(1)
Cut the wire clamp band, then disconnect the connector and FFC, then disconnect the connector board and HOLDER
.
CP4142
CP5003
CP4000
CP4400
STYLE PIN : Loosen
cut
