Install the PrimerSense® onto the primer tube assembly. Then install the primer back up rod.
Once the sensor is oriented in the desired position tighten the setscrew to lock in place.
Note: If connecting the APEX 10™ to an autodrive platform remove the battery before
powering on the machine.

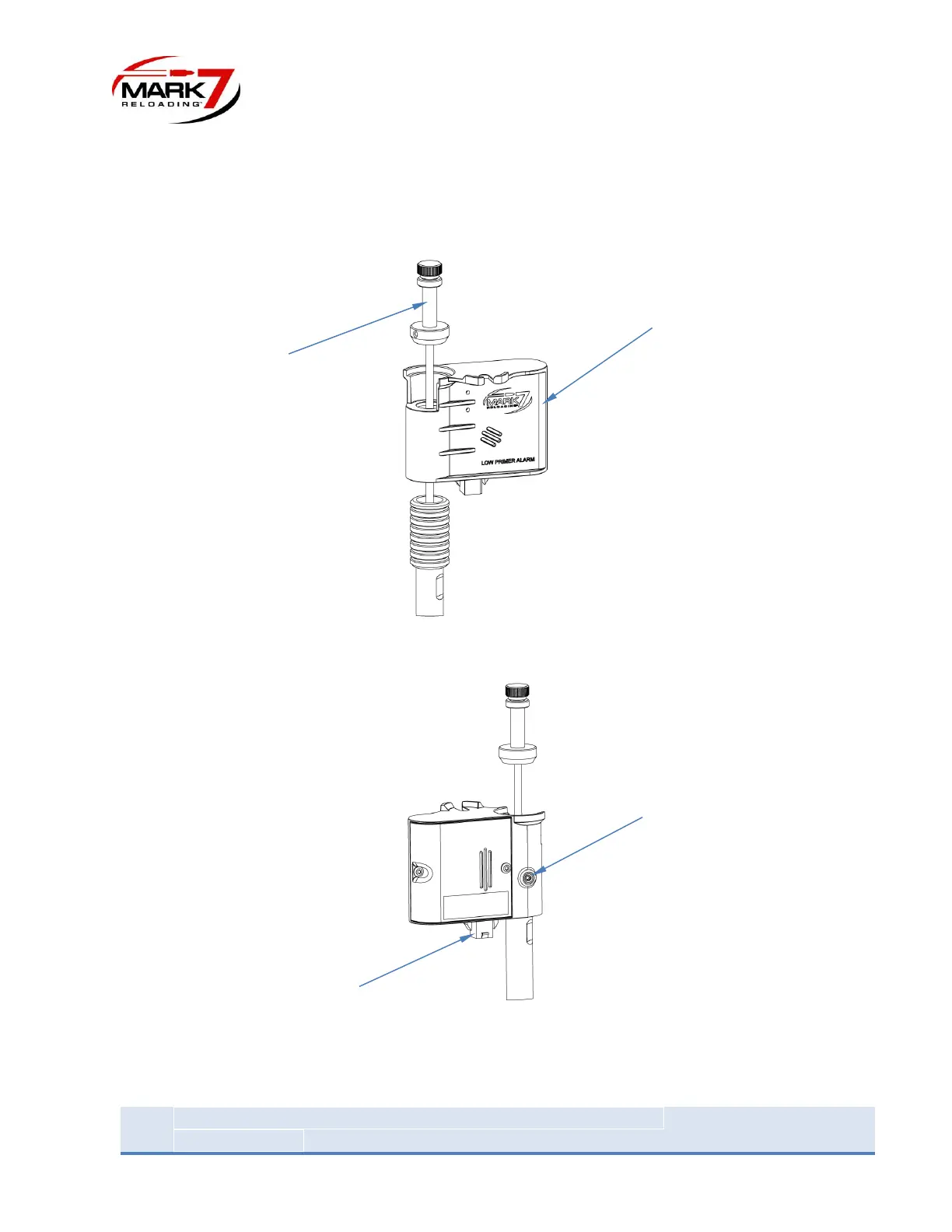

Figure 11: Low Primer Sensor (Front) exploded view
Figure 12: Low Primer Sensor (Rear)
Primer Back up
Rod
PrimerSense®
Low Primer Alarm
Connector
(Autodrive only.
Remove battery
before plugging in)
Set Screw to lock
sensor in position
