Position the press so the handle does not contact the leading edge of the workbench, while tool
head is in the bottom position. Using the machine as a template mark the 4-hole locations. For reference
the baseplate mounting holes are 5” square and need be large enough to clear a 3/8 -16 socket head
screw. Mounting hardware is provided with the press.

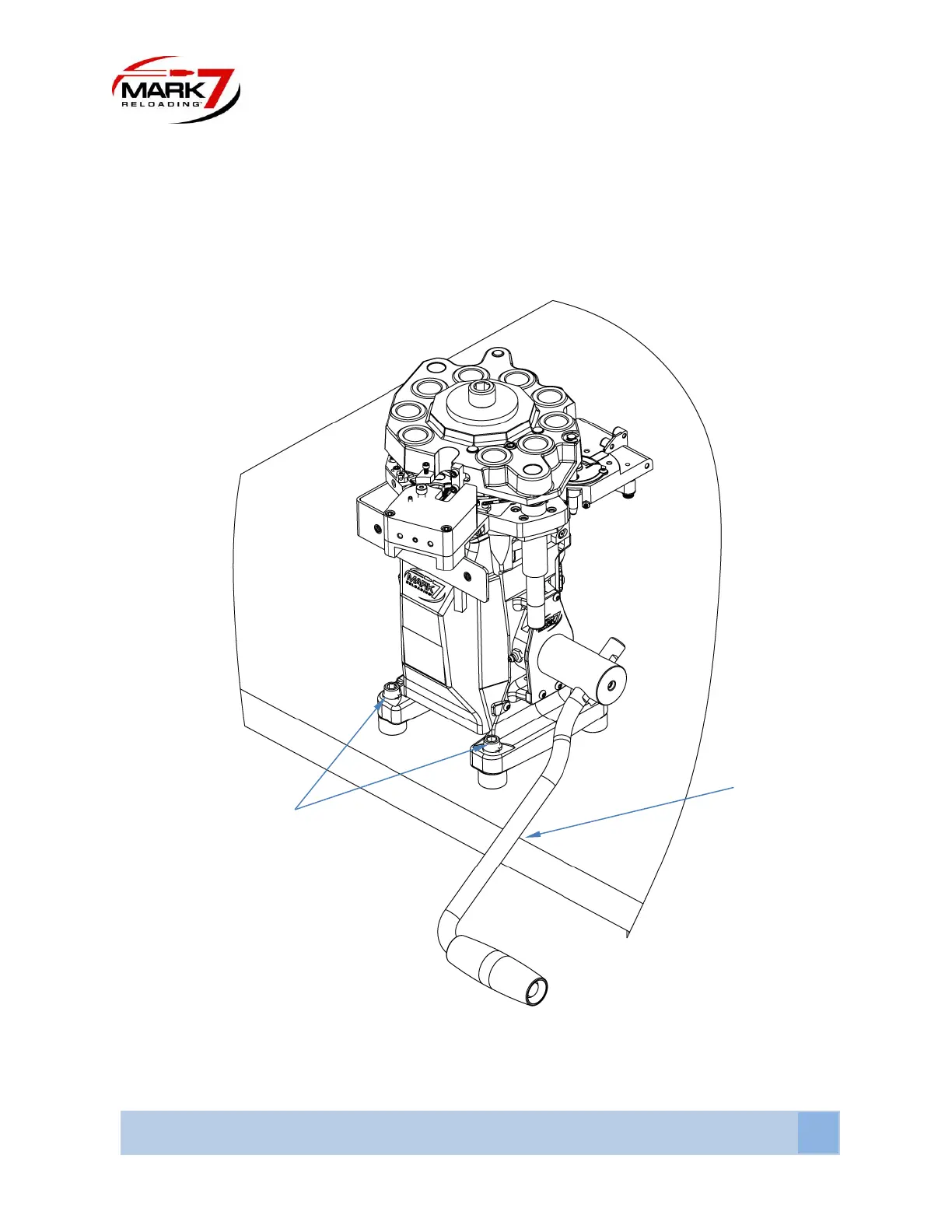

Figure 4: Mount to workbench with the machine orientated as shown.
