Primer Orientation Sensor Instructions
The Primer Orientation Sensor is compatible on all Revolution and Evolution Press platforms, including
systems equipped with No priming, Standard priming and Automated priming Systems. The sensor is
packaged in a single corrugated box (6” X 6” X 1-1/4"). Please check the packaging contents below
before installing the sensor.

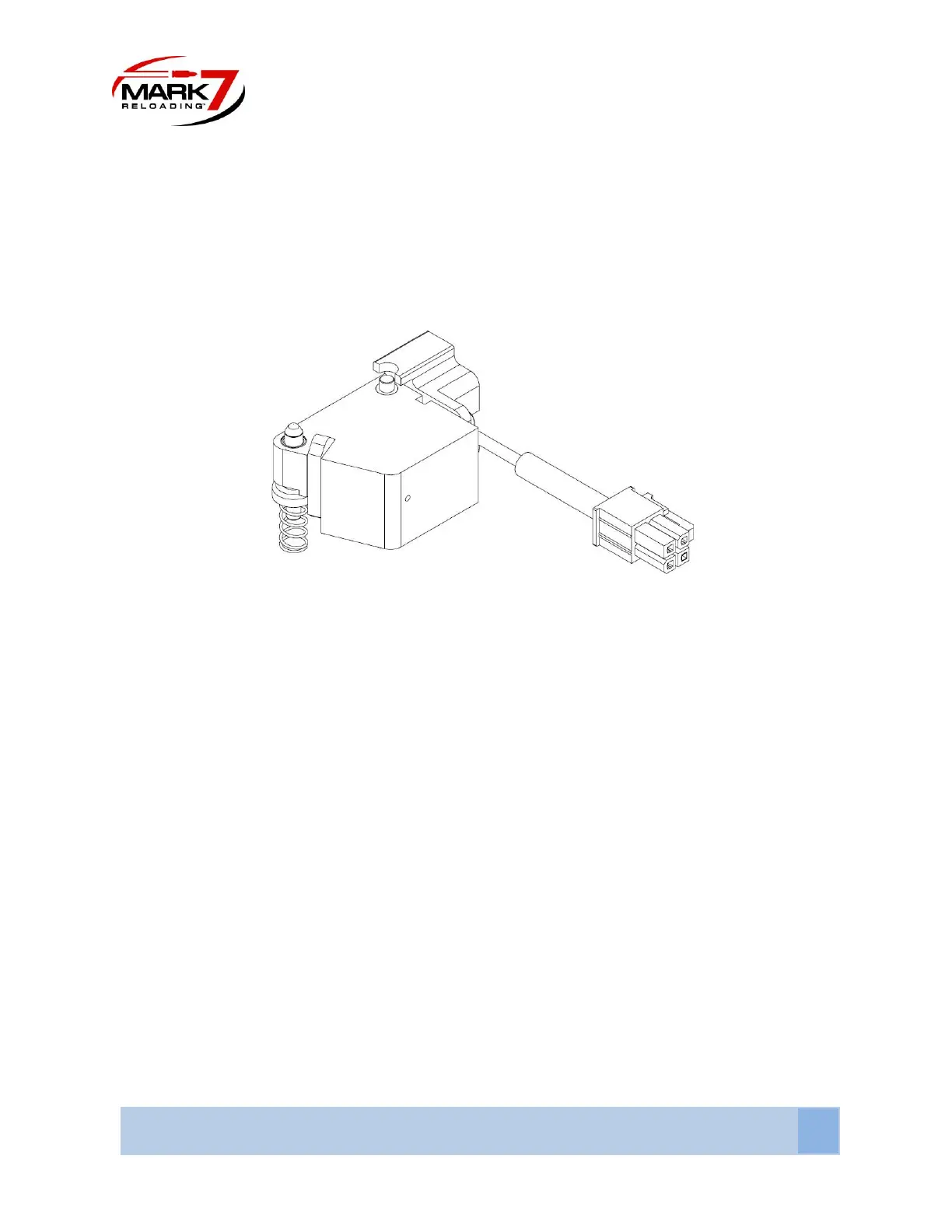

Figure 29: Primer Orientation Sensor
Packaging Contents:
Bag 1: Primer Orientation Sensor Main Body (QTY 1)
Bag 2: Hardware
1. Probe (QTY 1)
2. Probe Spring (QTY 1)
3. Indicator Spring (QTY 1)
Bag 3: Spare Hardware
1. Mounting Hardware: 8-32 Thread Size, 1/2" Long, Socket Head Screw (QTY 2)
2. Extra Springs: Probe and Indicator (QTY 1 Each)
