Step 2: Installing Probe Retractor and Springs
Place the two springs into the spring wells in the primer housing as shown. Apply a small amount of red
and tacky grease on the springs. Once the springs are installed, insert the probe retractor into the large
spring.

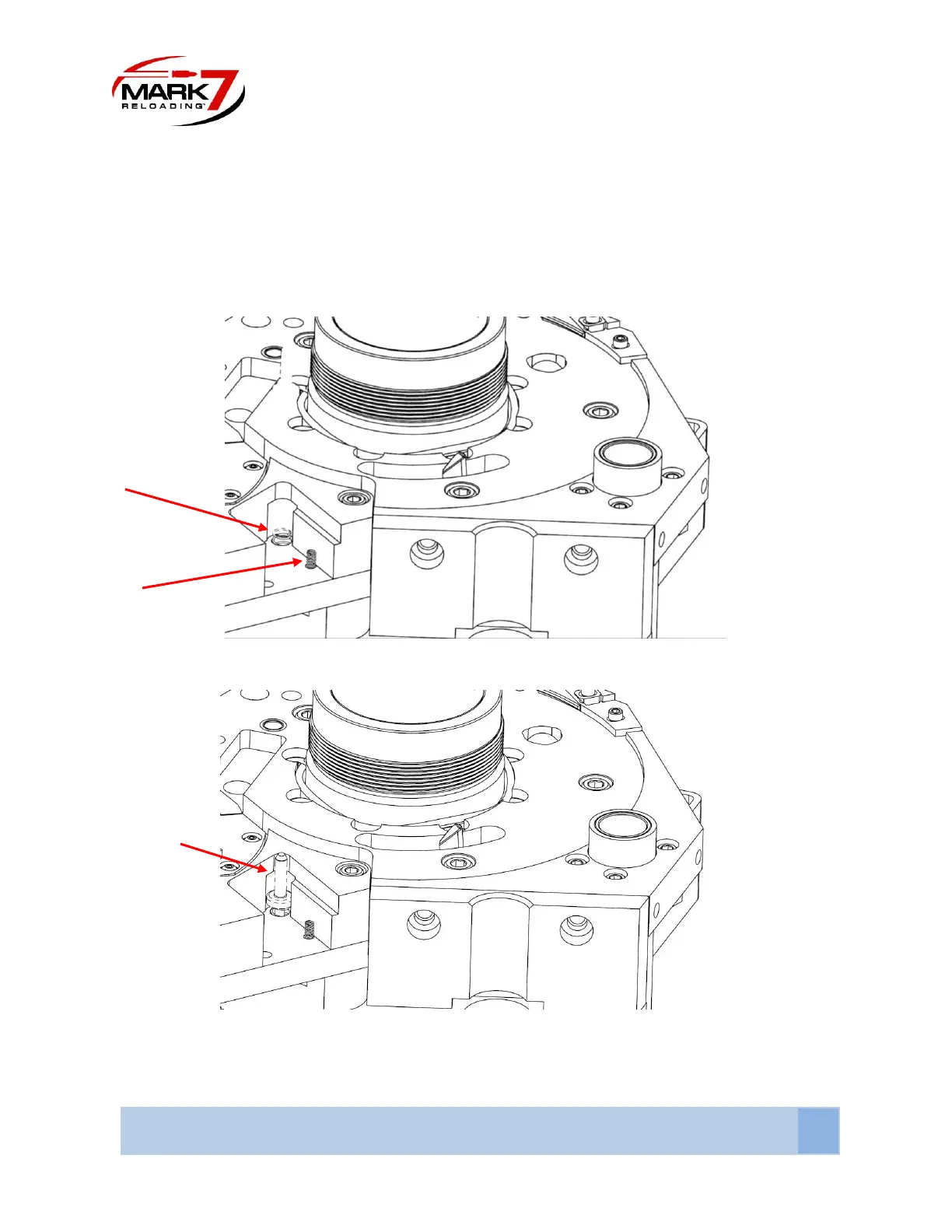

Figure 31 : Pace Probe Retractor and Indicator Springs in Spring Pockets as shown.
Figure 32: Probe Retractor Installed with Springs
NOTE: The probe must be installed at a slight angle in order to clear the undercut in the priming
housing.
