Step 3: Installing the Primer Orientation Sensor Main Body
Carefully lower the sensor body straight down so the probe retractor enters the bronze sleeve bearing
and the indicator finger pin enters the spring. The sensor should mount fully flush into the pocket with
no resistance. If it does not seat properly remove and reseat. Re-use the QTY 2 8-32 screws from the
underside of the priming system to secure the sensor the priming assembly. Spare screws are included
if needed.

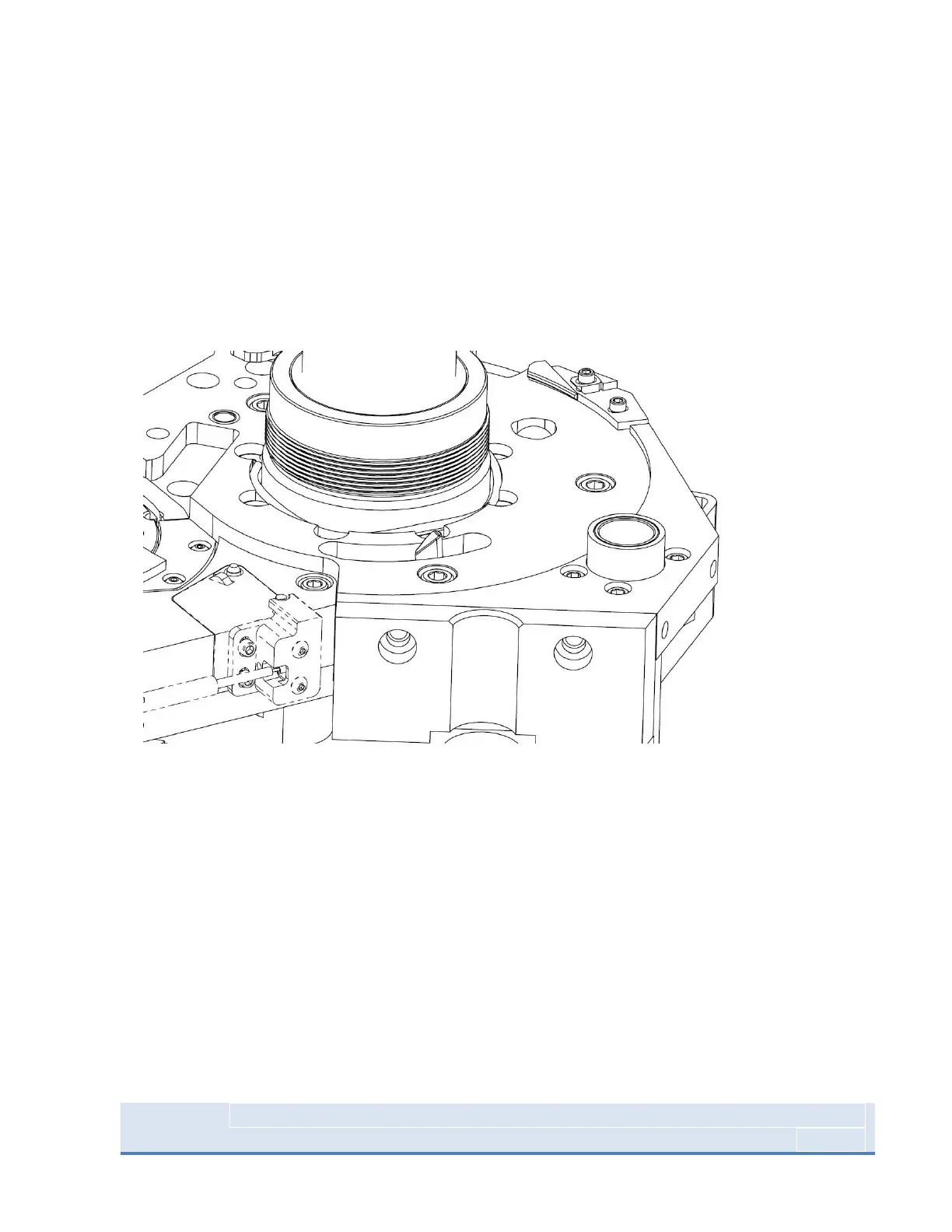

Figure 33: Primer Orientation Sensor Installed
Once the Sensor is fully installed add a couple drops of light weight oil on the probe retractor and
moving components and manually actuate the sensor to make sure it is moving smoothly.
Step 4: Re-install the Press components
1. Install Shellplate
2. Install Shellplate Spring and set tension
3. Install Shellplate Nut
4. Install Tool Head*
Note: When installing the Tool Head always perform the final tightening of the Tool Head with the crank
assembly in the down position.
