• Check that the fixture’s power voltage and frequency settings match the local AC power source (see
“Setting power voltage and frequency” on page 9). Adjust settings if necessary.
• If drawing power from a socket, install a suitable power plug on the power cable as described in “Power
cable” on page 10.
Connections panel
A - DMX data output connector (3-pin XLR)
B - DMX data input connector (3-pin XLR)
C - Power input connector
D - Fuseholders
E - DMX data input connector (5-pin XLR)
F - DMX data output connector (5-pin XLR)

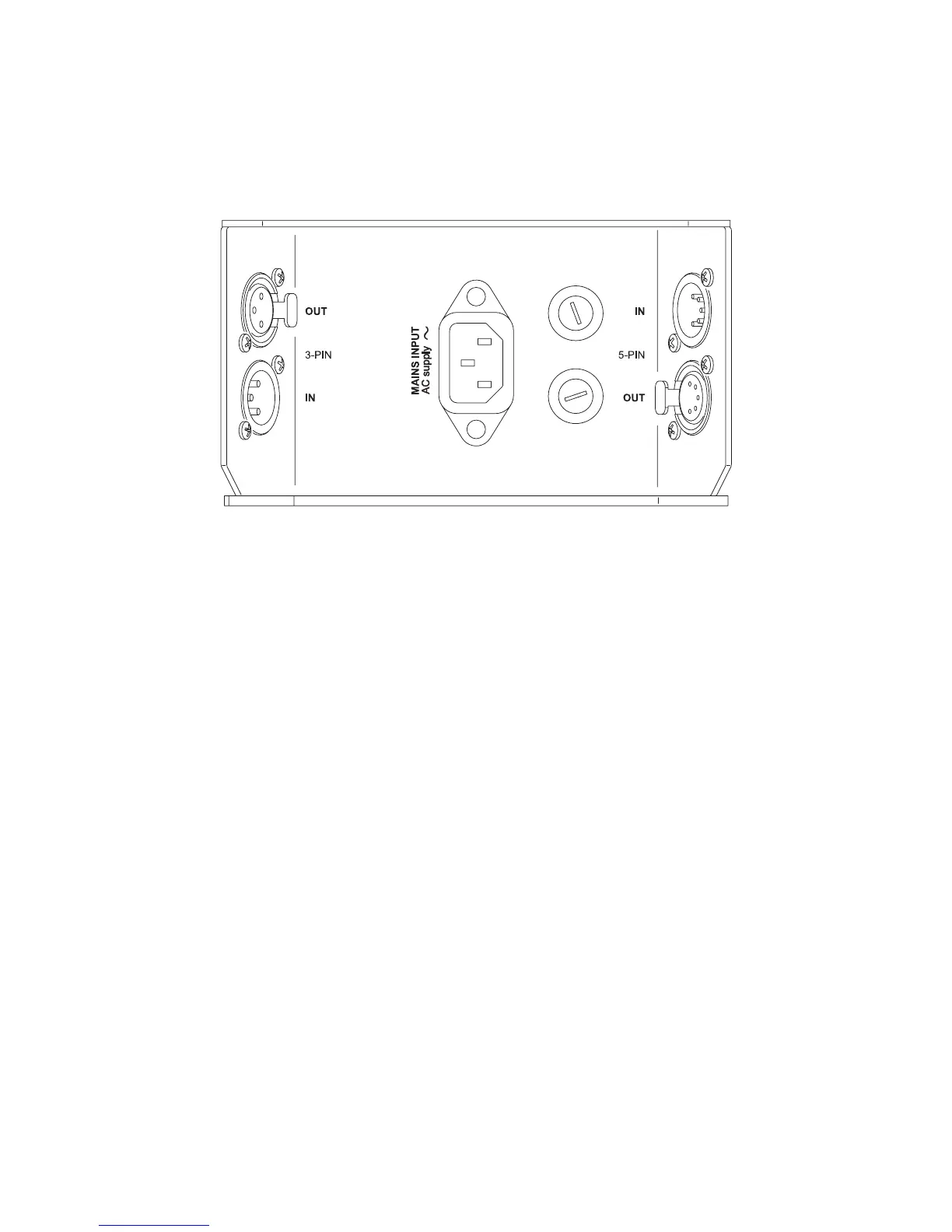

Figure 1: Connections panel overview
