Masibus LC5296-AT User Manual

Model: LC5296-AT /LC5248E-AT/LC5296V-AT masibus
Doc. Ref. no. : - m61C/om/301
Issue no. 13
User’s Manual Page 12 of 44
4.3 LC5248E-AT

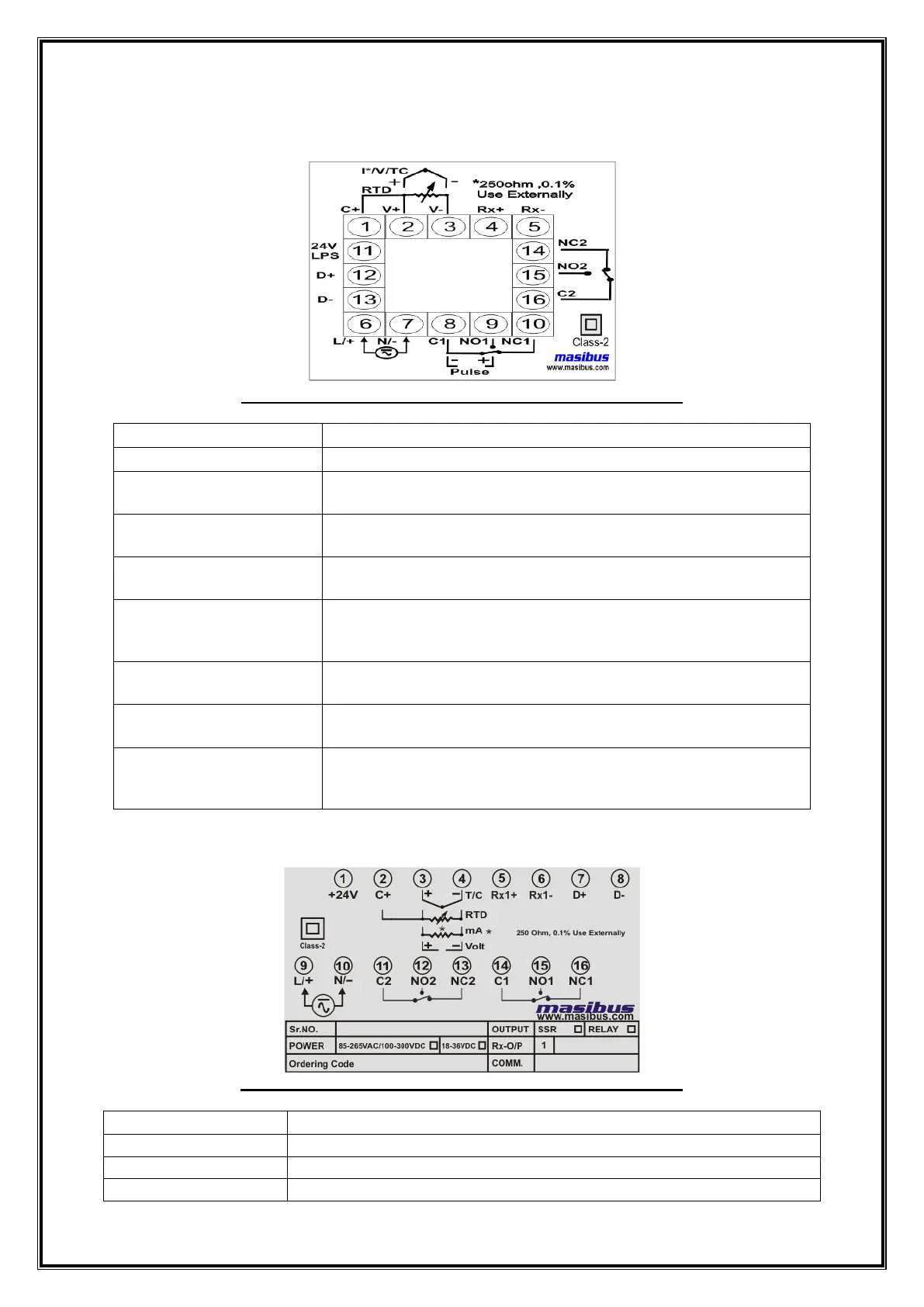

Fig 4.5: Terminal Connection Detail of LC5248E-AT
Terminal No.
Description
1
For RTD Input Only (Three wire Compensation).
2(TC+/ V+)
3(TC- / V- / LPS-)
For Thermocouple, RTD & Linear Input
4 (Rx1+)
5 (Rx1-)
 For Retransmission-1 output
6 (N/-)
7 (L/+)
Power Supply Input
8 (C1)
9 (NO1)
10 (NC1)
 For Relay-1 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
11 (LPS+)
24VDC Loop power supply Terminal 14 is ground
Reference.
12 (D+)
13 (D-)
 Modbus-RTU Communication Output
14 (NC2)
15 (NO2)
16 (C2)
 For Relay-2 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
4.4 LC5296V-AT
Fig 4.6: Terminal Connection Detail of LC5296V-AT
Terminal No.
Description
1 (LPS+)
24VDC Loop power supply Terminal 14 is ground Reference.
2
For RTD Input Only (Three wire Compensation).
3 (TC+/ V+)
For Thermocouple, RTD & Linear Input
