Model: LC5296-AT /LC5248E-AT/LC5296V-AT masibus
Doc. Ref. no. : - m61C/om/301
Issue no. 13
User’s Manual Page 9 of 44
2.6 Environmental Conditions
TEMPCO
For Input to PV Display < 100ppm. FOR Display to
Retransmission and Control output < 100ppm
Humidity
30% to 95% RH (Non-Condensing)
Instrument Warm-up Time
Approx. 15 minutes
Ambient temperature
0 to 55°C
Storage Temperature
0 to 80°C
3. PHYSICAL SPECIFICATIONS &MOUNTING DETAILS
3.1 LC5296-AT
Front Bezel
96 x 96 mm
Panel Cutout
92mm(+0.8) x 92mm(+0.8)
Depth Behind The Panel
65 mm withTerminal
Weight
300g Approx.
Encloser Material
ABS
Encloser Protection
IP20
Terminal Cable Size
2.5 mm
2

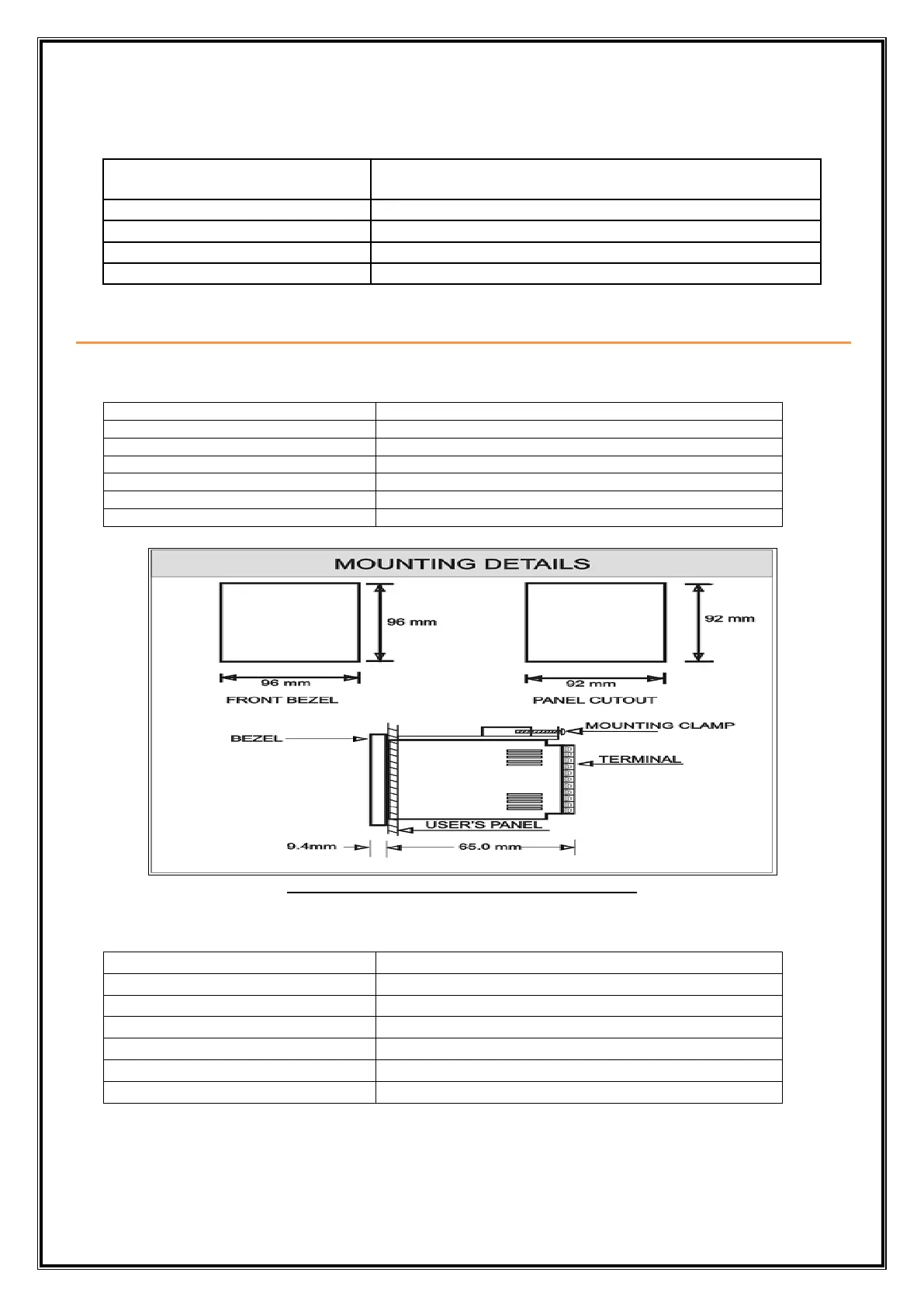

Fig 3.1: Mounting Details for LC5296-AT
3.3 LC5248E-AT
Front Bezel
48 x 48 mm
Panel Cutout
45 x 45 mm
Depth Behind The Panel
115mm
Weight
200g Approx.
Encloser Material
ABS
Encloser Protection
IP20
Terminal Cable Size
2.5 mm
2
