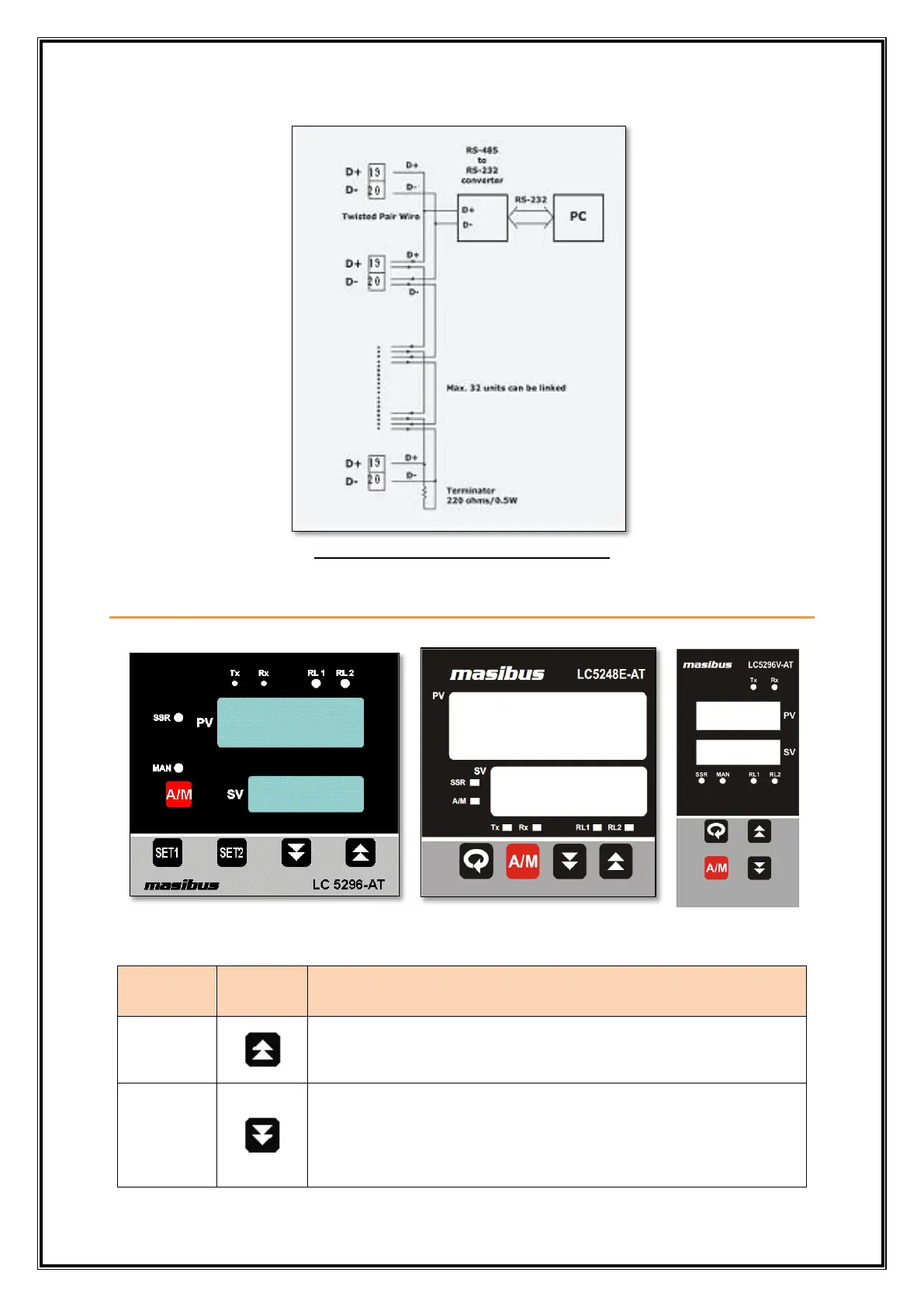

Fig 4.4: RS485 Connection Details
5. FRONT PANEL DETAILS
5.1 Front Panel Description of LC5296-AT
Name of
Part
Symbol
Function
Increment
Key
 Increment the Value of any Parameter.
 Shows ambient value for T/C Input in RUN mode.
 In Manual Mode this key is used to Increment the %Power.
Decremen
t Key
 Decrement the Value of any Parameter.
 Shows %Power value if Device is in Auto Mode in RUN
mode.
 In Manual Mode this key is used to Decrement the
%Power.
