Model: LC5296-H / LC5296 / 5006-RN / 408-M / LC5248E
Doc. Ref. no.:- m61C/om/101
Issue no. 13
User’s Manual Page 34 of 36

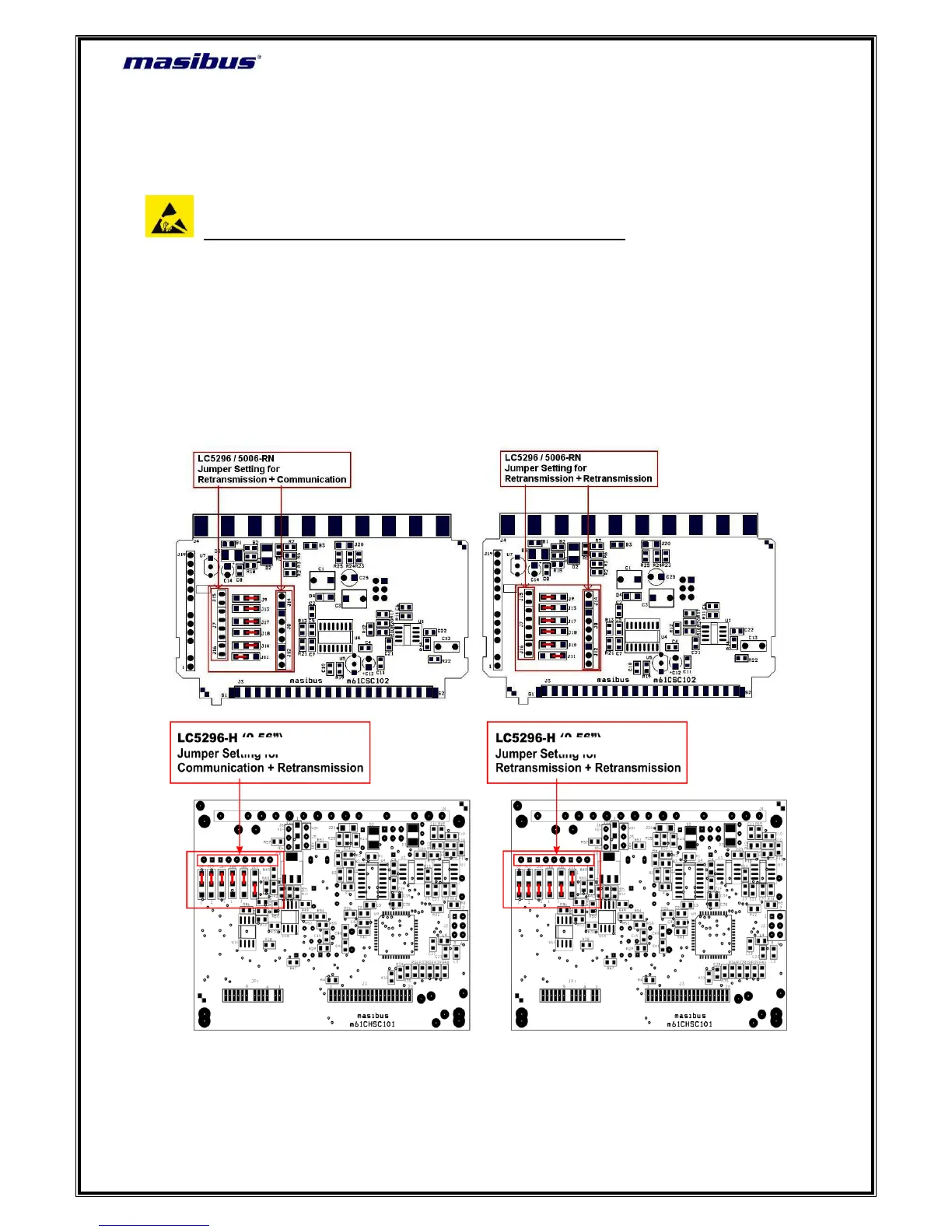

11.4 Jumper Settings for Add-on Card Selection & Retransmission
Output Type
(Applicable only for LC5296 / LC5296-H / 5006-RN, LC5248E)
These units come with different Variants differing by various Output option
available.
There are Two (One for LC5296-H (0.56”)) Addon Card Slots available on
PCB of Signal Card. Among them One Slot is fixed for Retransmission
(Analog) Output. And the other Slot can be used for either Retransmission or
RS-485 Communication Card by appropriate Jumper setting shown in below
figure.
0E (SMD 0805) Resistor is used for shorting the Jumper.
