Model: LC5
296-H / LC5296 /
5006
-
RN
/ 408-
M / LC5248E
Doc. Ref. no.:-
m61
C/
om
/101
Issue no. 13
User’s Manual
Page
10
of
36

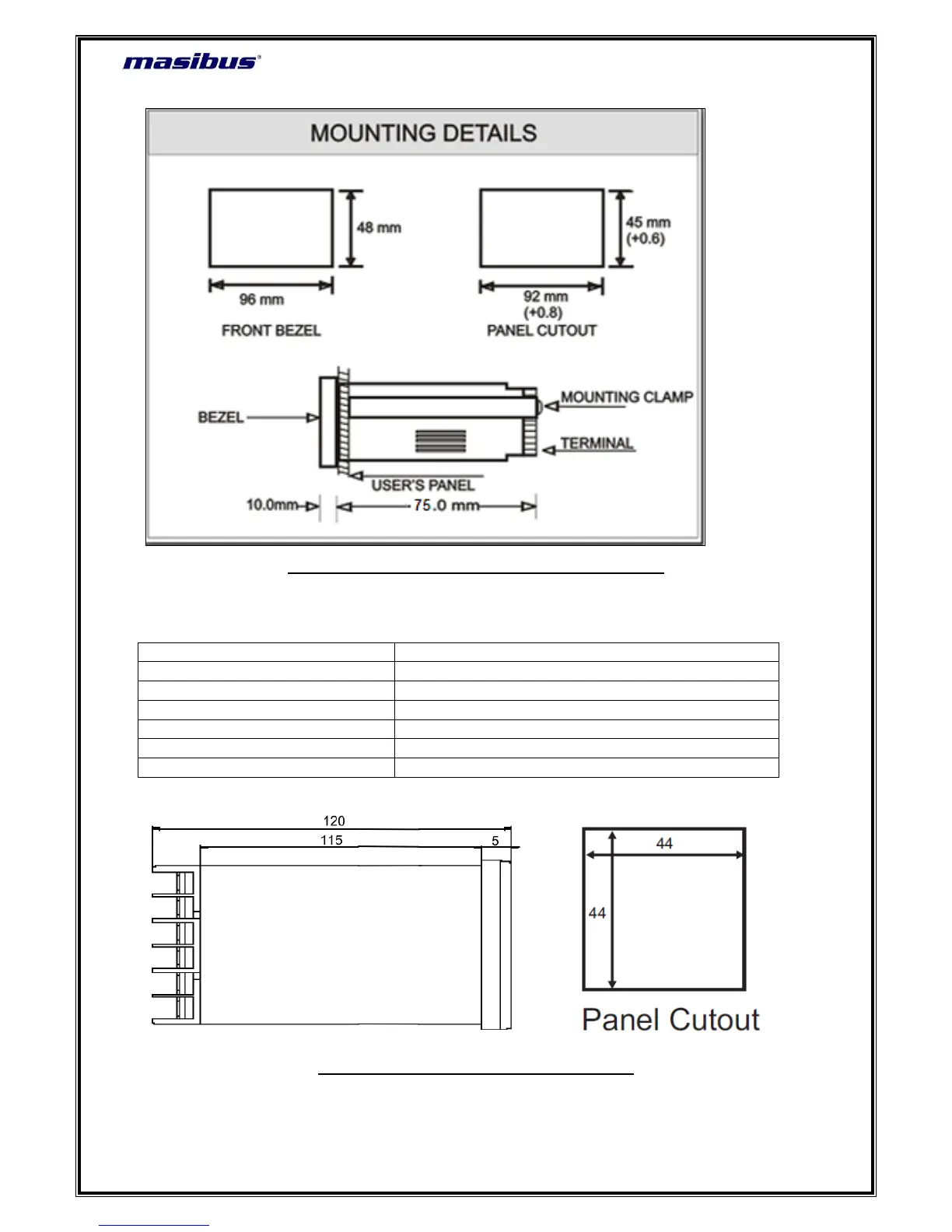

Fig 3.3: Mounting Details for LC5296-
H(0.56”)
3.
3
L
C
5
2
4
8
E
Front Bezel
48 x 48 mm
Panel Cutout
44 x 44
mm
Depth Behind The
Panel
115mm
Weight
200g Approx.
Encloser Materi
al
ABS
Encloser Protection
IP20
Terminal Cable Si
ze
2.5 mm
2
Fig 3.2: Mounting Details for LC5248E
9
11
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
Foreword
4
Notice
4
Trademarks
4
Product Ordering Code
4
List of Accessories
5
Safety Precautions
5
2 Specifications
6
Inputs
6
Display & Keys
7
Output Types
7
Communication Details
7
Power Supply
8
Environmental Conditions
8
Advance Feature
8
3 Physical Specifications & Mounting Details
9
Lc5296 / 5006-Rn
9
Lc5296-H / 408-M
9
Lc5248E
10
4 Terminal Connections
11
Lc5296 & 5006-Rn
11
Lc5296-H / 408-M
12
Lc5248E
12
How to Connect Wires
13
Issue no
13
5 Front Panel Details
15
Front Panel Description for LC5296, LC5296-H, 5006-RN & LC5248E
16
Front Panel Description for 408-M
17
6 Menu Layout for Lc5296, Lc5296-H, 5006-Rn, Lc5248E
18
Run Time Indication/Function
19
Set Point Setting
19
Configuration Mode
19
Calibration Mode
23
7 Menu Layout for 408-M
25
Run Time Indication/Function
26
Configuration Mode
26
Calibration Mode
27
8 Control Function
28
ON/OFF Control
28
9 Calibration Procedure
29
Procedure for CAL-Zero and CAL-Span
29
Procedure for RET-Zero and RET-Span
29
10 Communication Protocol-Modbus Rtu
30
Introduction
30
Parameter Address Details
30
Exceptional Response
31
11 Appendix
32
Troubleshooting
32
On-Off Logic
33
Retramission Output Table for Open /Over /Under Condition
33
Jumper Settings for Add-On Card Selection & Retransmission
34
Load Connection
36
