Masibus LC5296 User Manual

Model: LC5296-H / LC5296 / 5006-RN / 408-M / LC5248E
Doc. Ref. no.:- m61C/om/101
Issue no. 13
User’s Manual Page 11 of 36
4. TERMINAL CONNECTIONS
4.1 LC5296 & 5006-RN

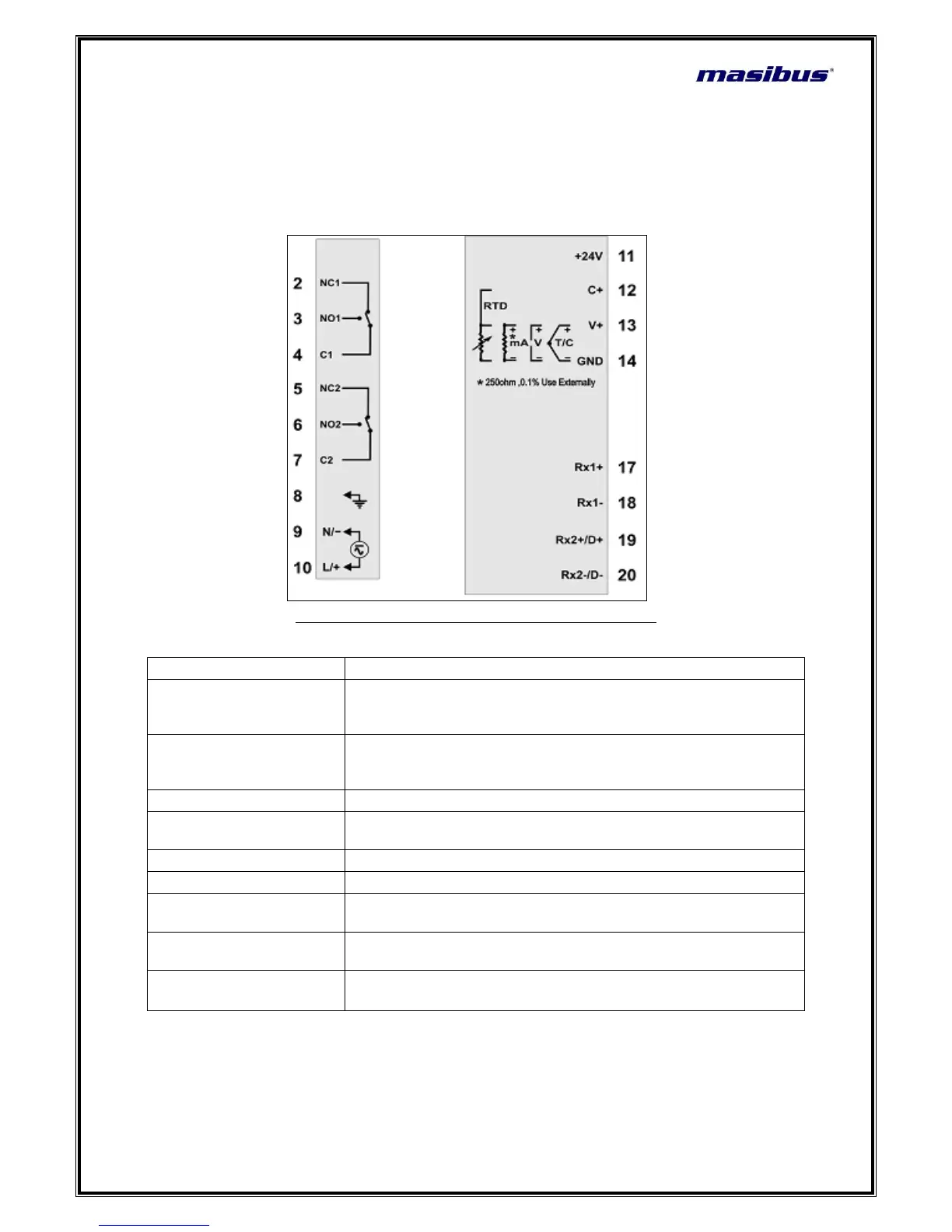

Fig 4.1: Terminal Connection Detail of LC5296 / 5006-RN
Terminal No.
Description
2 (NC1)
3 (NO1)
4 (C1)
 For Relay-1 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
5 (NC2)
6 (NO2)
7 (C2)
 For Relay-2 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
8 (Earth)
Earth Connection
9 (N/-)
10 (L/+)
Power Supply Input
11 (LPS+)
24VDC Loop power supply Terminal 14 is ground Reference.
12
For RTD Input Only (Three wire Compensation).
13 (TC+/ V+)
14 (TC- / V- / LPS-)
For Thermocouple, RTD & Linear Input
17 (Rx1+)
18 (Rx1-)
 For Retransmission-1 output
19 (Rx2+ / D+)
20 (Rx2- / D-)
 For Retransmission-2 output
 Modbus-RTU Communication Output
