Chapter 2: Description
This chapter contains the description of the Rad-5/5v physical features.
General System Description
The Rad
®
-5/5v includes the following:
 Rad-5/5v Device.
For a list of compatible sensors and cables, visit http://www.masimo.com.

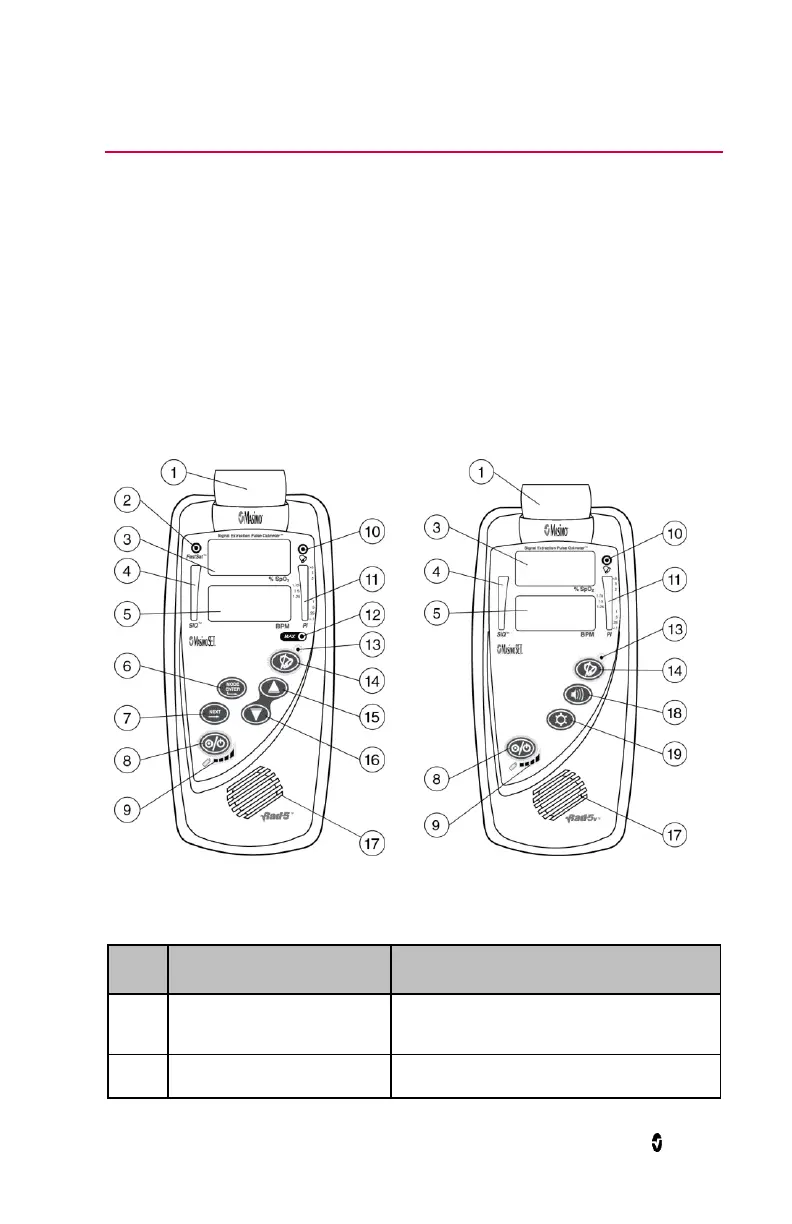

Front View
Rad-5
Rad-5v
No.
Control / Indicator
Description
1
Patient Cable Connector
Connects to Red Direct Connect Series Spot
Check sensor or Masimo Patient Cable.
2*
FastSat indicator
Illuminates when FastSat mode is enabled.
