Rad-5/5v Chapter 4: Operation
www.masimo.com 33 Masimo
Sample Trend Output
07/21/04 09:56:08 SpO2=000 PR=000 PI=00.00 EXC=820:OffPat,SET
07/21/04 09:56:10 SpO2=000 PR=000 PI=00.00 EXC=828:Search,OffPat,SET
07/21/04 09:56:12 SpO2=097 PR=069 PI=04.69 EXC=800:SET
07/21/04 09:56:14 SpO2=096 PR=074 PI=02.28 EXC=C00:LowSigIQ,SET
07/21/04 09:56:16 SpO2=098 PR=078 PI=03.64 EXC=800:SET
07/21/04 09:56:18 SpO2=000 PR=000 PI=00.00 EXC=800:SET
07/21/04 09:56:20 SpO2=000 PR=000 PI=00.00 EXC=820:OffPat,SET
07/21/04 09:56:22 SpO2=096 PR=078 PI=02.68 EXC=800:SET

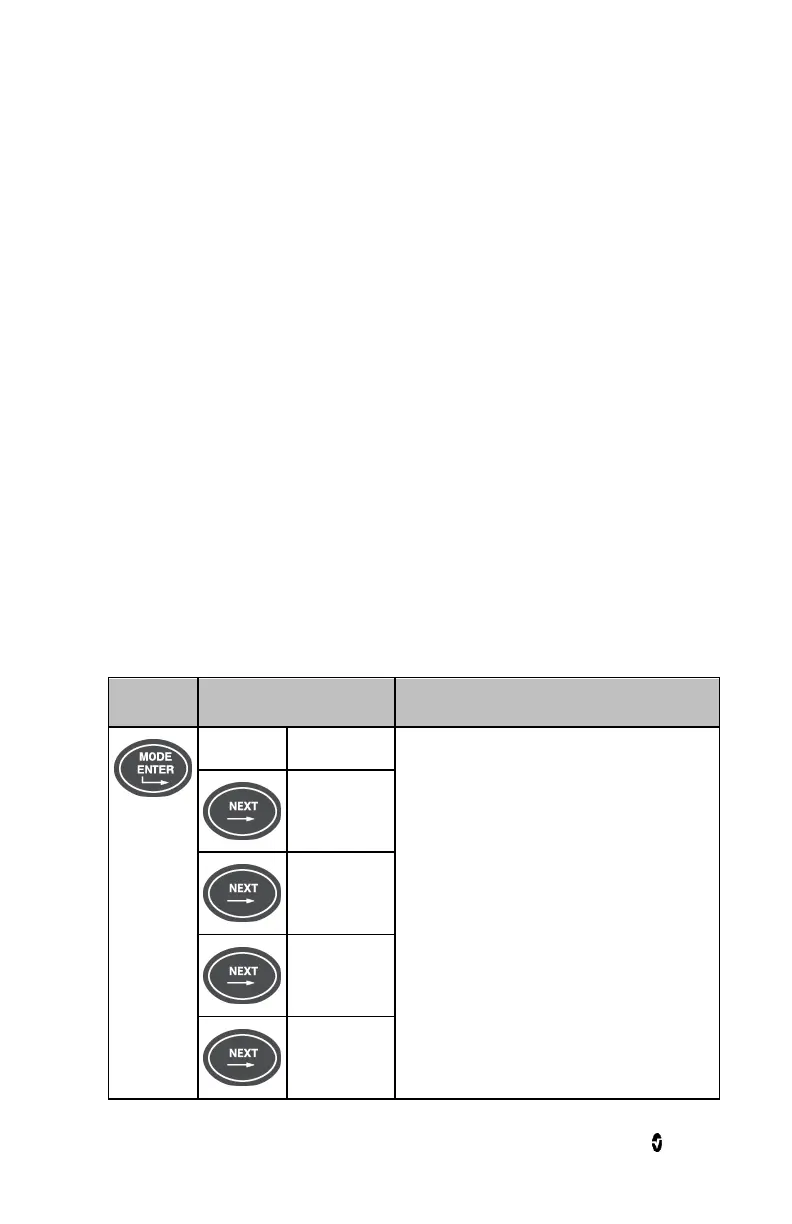

Menu Navigation
The Rad-5 settings and configuration options are accessed through the menu system. The
Mode/Enter key is used to enter the menu system and to move through the different menu
levels. Within each level of the system, the Next key is used to move from one option to the
next. The Up and Down arrow keys are used to select values within each option. The
parameter is set/selected when either the Mode/Enter or Next keys are pressed.
Menu Level 1 - Alarm Limit and Alarm Volume
Use Up or Down Arrow Keys to adjust
parameter to desired setting.
Note: The parameter is set/selected when the
Mode/Enter and Next buttons are pressed.
For alarm limit information, see Alarm Limits
on page 30.
To Next Page
