3-16 MASTERFLEX
®
Digital Pump Drive Operating Manual Masterflex
Section 3
Operation

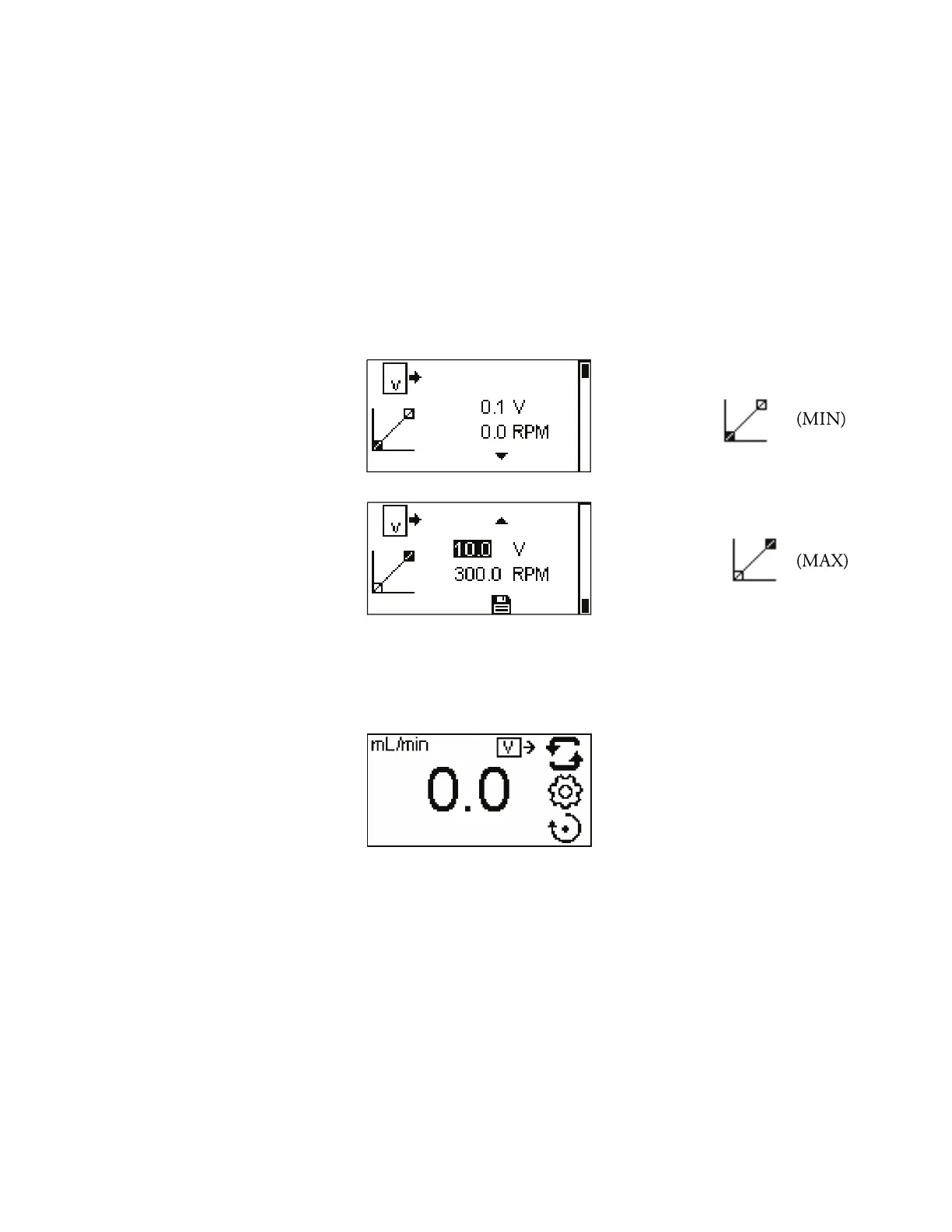

is will take you to the setpoint screen. e user has an option to adjust
the minimum and maximum setpoints for voltage and RPM. e setpoints
being edited will be blinking on the slope. To change which setpoint to
edit use the UP or DOWN to select screen. By default the minimum
(MIN) voltage is set to 1V DC and the RPM is set to 0.0. e maximum
(MAX) is set to 10.0V DC and the RPM is set to maximum. e scaling
can be inverted, if necessary. e voltage is linear between these two
points. After both setpoints have been adjusted, save both setpoints from
the upper setpoint setting screen by highlighting the save icon and pressing
ENTER.
To confirm VOLTAGE OUTPUT MODE is ON, press the BACK key
until the CONTINUOUS PUMP MODE screen appears. e Voltage
output icon will be displayed.
NOTE: When Voltage Output is selected the drive will not start until the
VOLTAGE OUTPUT is ON and in CONTINUOUS PUMP MODE.
NOTE: e Voltage Output indicates the Running Command Speed. Use
the Motor Running relay (normally open) to indicate if pump is running.
Remote Control
Voltage Output Menu
(continued)
