Digital Pump Drive Operating Manual 3-7Masterflex
Section 3
Operation
Both operation mode screens contain a SETTINGS icon that gives
quick access to the SETTINGS Menu. e exact options that can be
accessed through the SETTINGS Menu will depend on the operating
mode currently in use:
1. Selecting the SETTINGS Menu: In any of the operating modes, use
the UP/DOWN or ENTER key to select the SETTINGS icon from
the mode operation screen.
2. Navigating the SETTINGS Menu: Use the UP/DOWN keys to
highlight desired setting and press ENTER.
A breakdown of the setting features common to all modes follows. Other
settings are related to the specific operating mode currently in use.
Flow Unit: Select desired flow unit to be displayed. Pressing the ENTER
key on this screen goes to the Flow Unit selection screen. NOTE: When
switching to Copy Dispense Mode, flow rate adjustments are displayed
in RPM only.
Settings Menu

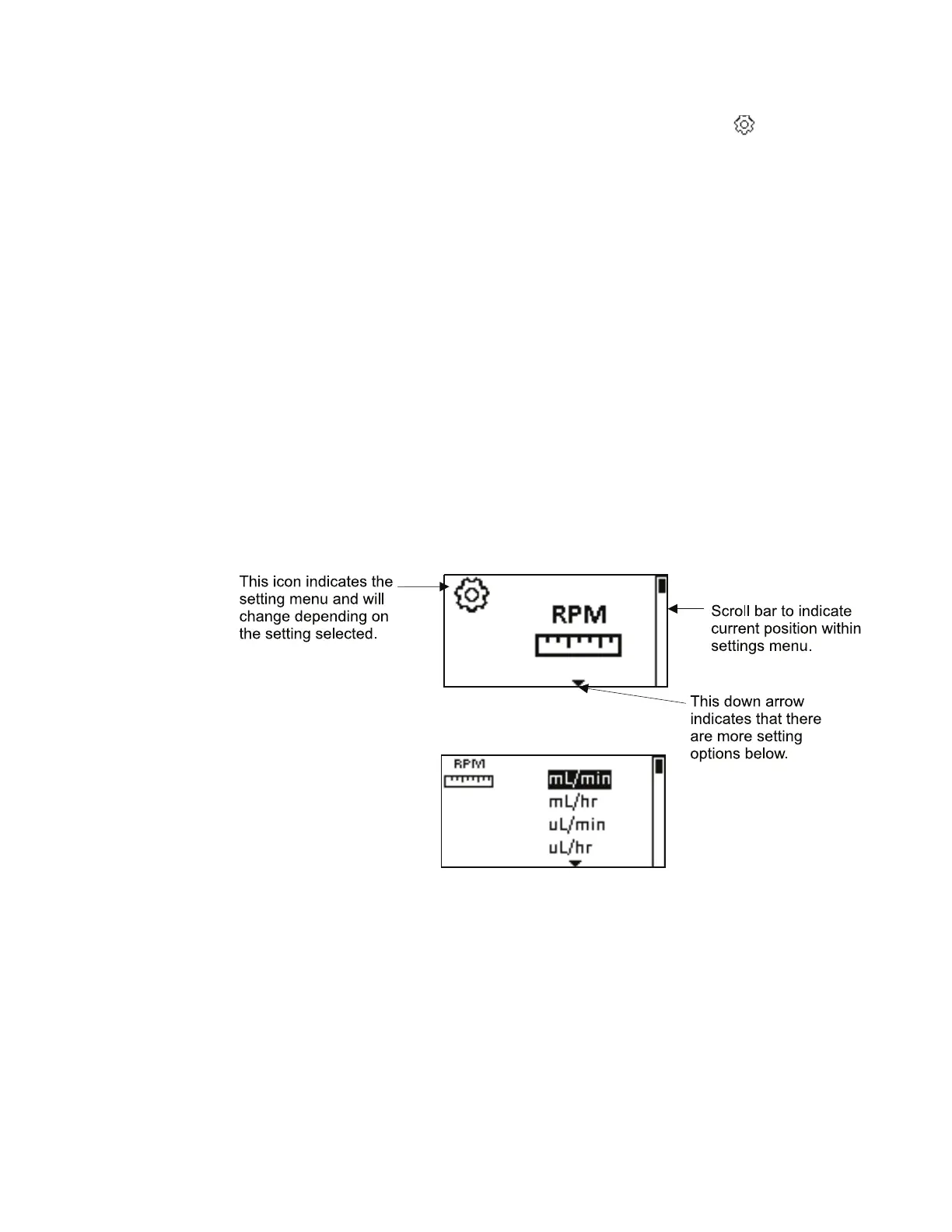

Figure 3-4. Flow Unit Selection Screens.
