59
8.4 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 8: ELLIPTICAL TRAINER SPECIFICATIONS AND ASSEMBLY GUIDE

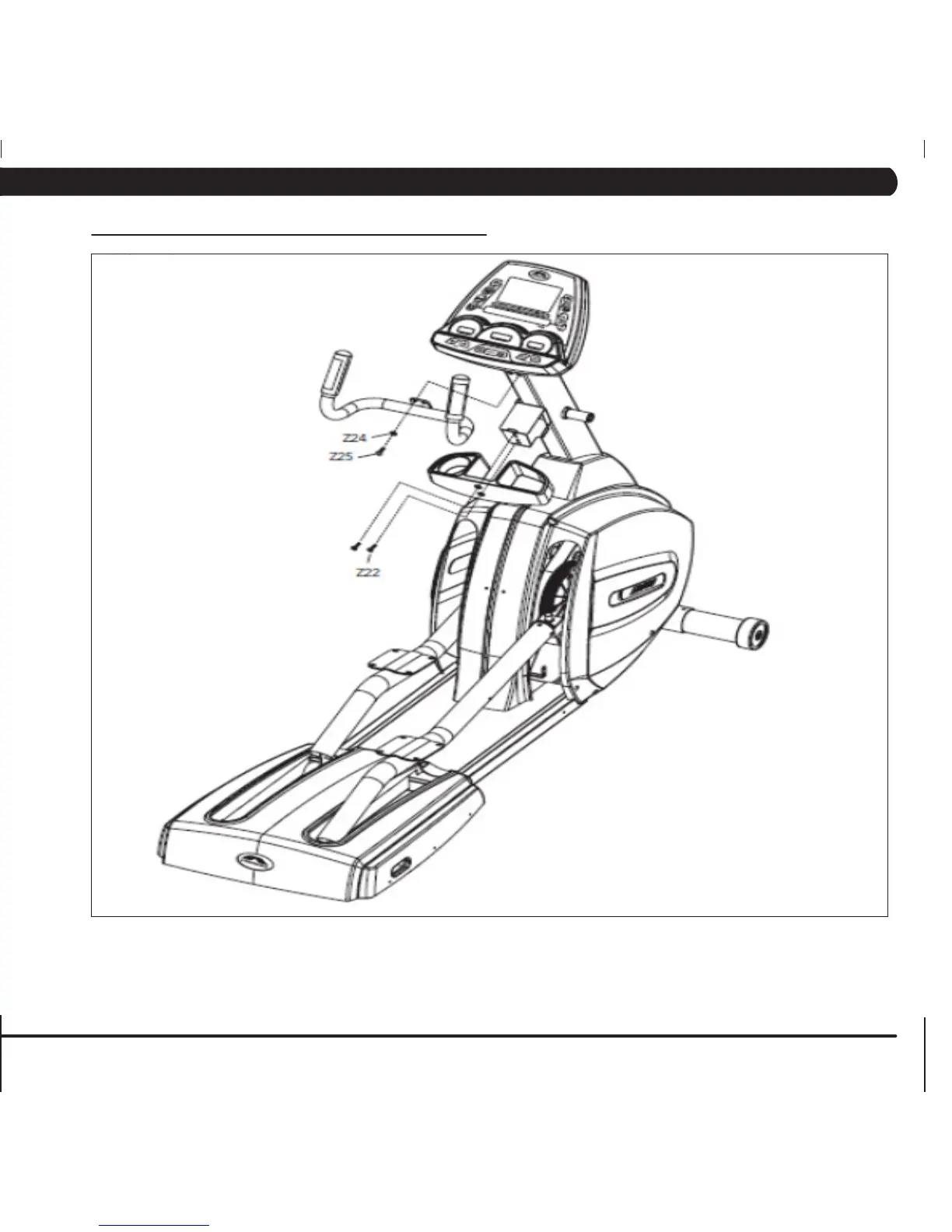

HR HANDLEBAR
1) Plug in the heart rate wires to the wires from the Console Mast.
2) Attach the Heart Rate Handlebar to the Console Mast using four screws (Z25) and four washers (Z24).
CUP HOLDER
Attach the Cup Holder to the Cup Holder Bracket using two screws (Z22).
STEP 3
