8.4 ASSEMBLY INSTRUCTIONS - CONTINUED

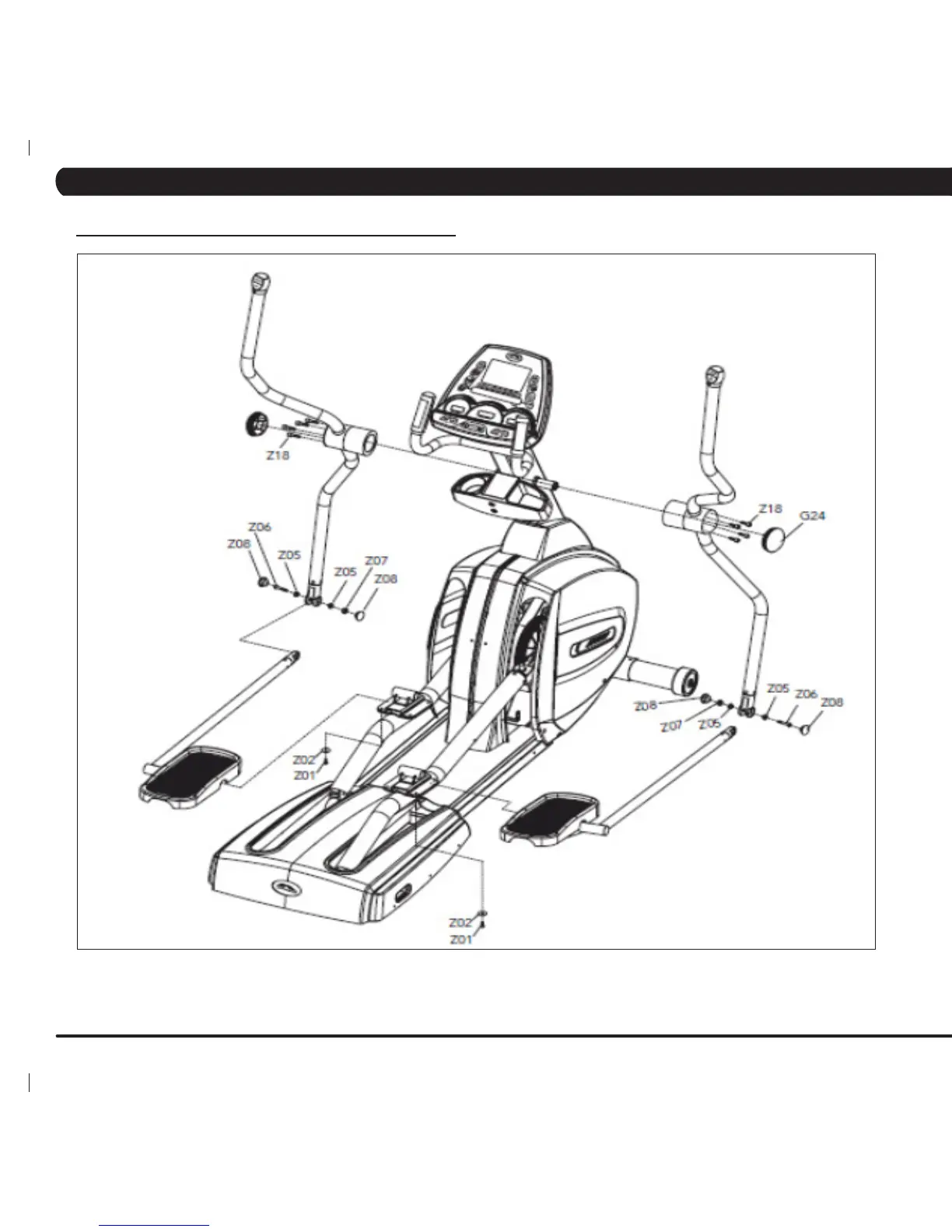

1) Attach the Dual Action Handlebars (R) and (L) to the Console Mast using eight screws (Z18), and place the handlebar caps (G24) around the
handlebars.
2) Fasten the Link Arms (R) and (L) to the Pedal Arms using eight screws (Z01) and eight washers (Z02).
3) Attach the Dual Action Handlebars to the Link Arms using two bolts (Z06), four bushings (Z05), and two nylon nuts (Z07).
4) Align the cut out inside the Link Arm Caps (Z08) with the link arm mounting hole. Apply pressure to the cap until it snaps into place.
STEP 4
