Matrix SATATYA NVR0801X System Manual

Matrix SATATYA Devices Manual 177
In NVRX Series variant, CPU Usage and Up Time, CPU Temperature of the connected devices is

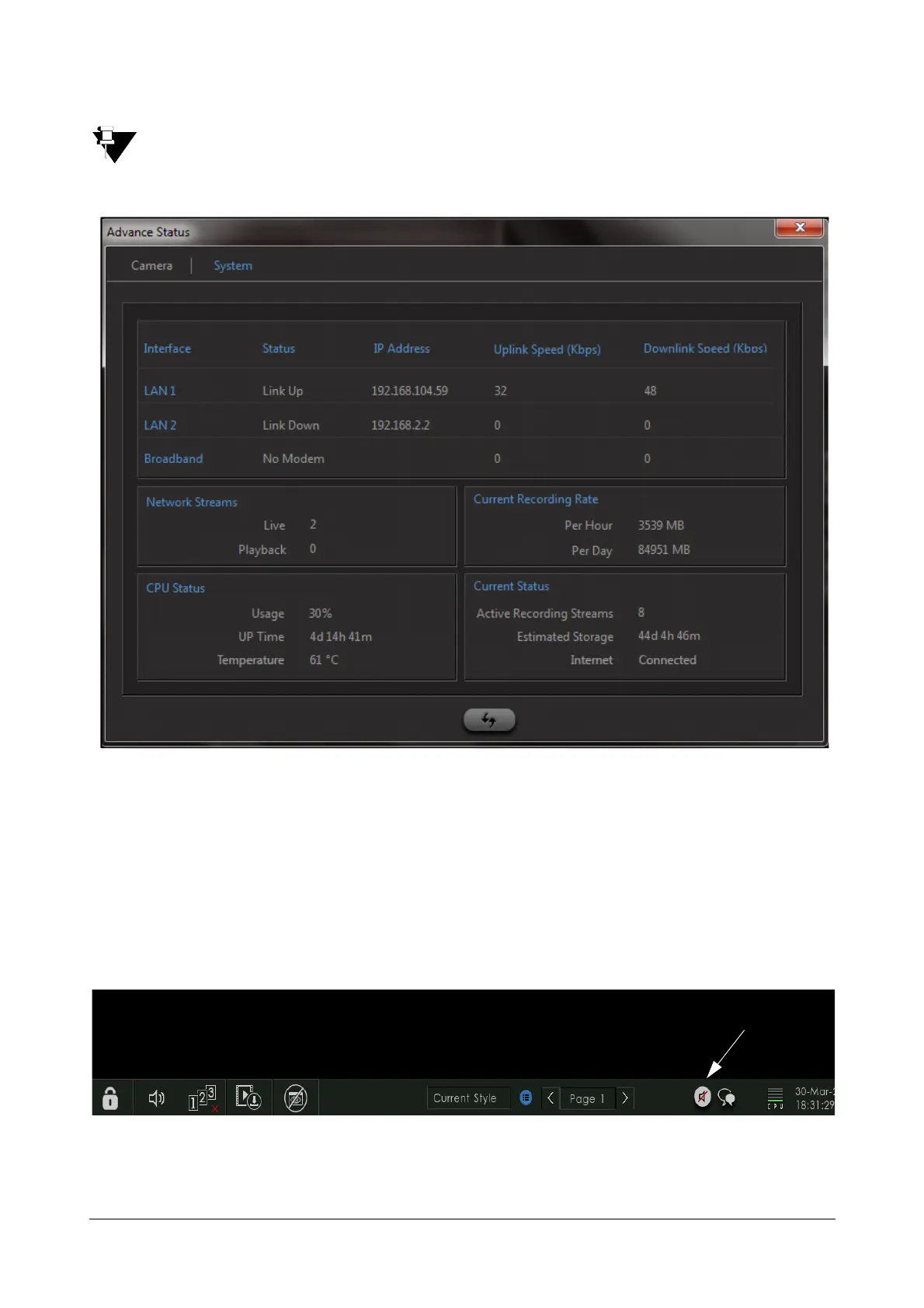

displayed. The screen below displays the Advance Status screen in NVRX series variant.
CPU Temperature Indication at High Temperature.
User will be notified with the help of buzzer when the CPU temperature of the system reaches to 100 degree
Celsius. It will continue ringing till 105 degree Celsius after which the system will get shutdown.
To know more about the Buzzer status, See “NVRX LED And Buzzer State” on page 13.
The buzzer will be stopped automatically when the temperature drops from 100 degree Celsius.
The buzzer can also be stopped manually by clicking the buzzer icon on the toolbar that appears when the event is
triggered. You can see that in the figure below.

Matrix SATATYA NVR0801X Specifications

General

Brand	Matrix
Model	SATATYA NVR0801X
Category	DVR
Language	English
