210 Matrix SATATYA Devices Manual
Device Client:
Enable to activate auto configuration of the camera and click Set button to configure the Auto configuration
settings.

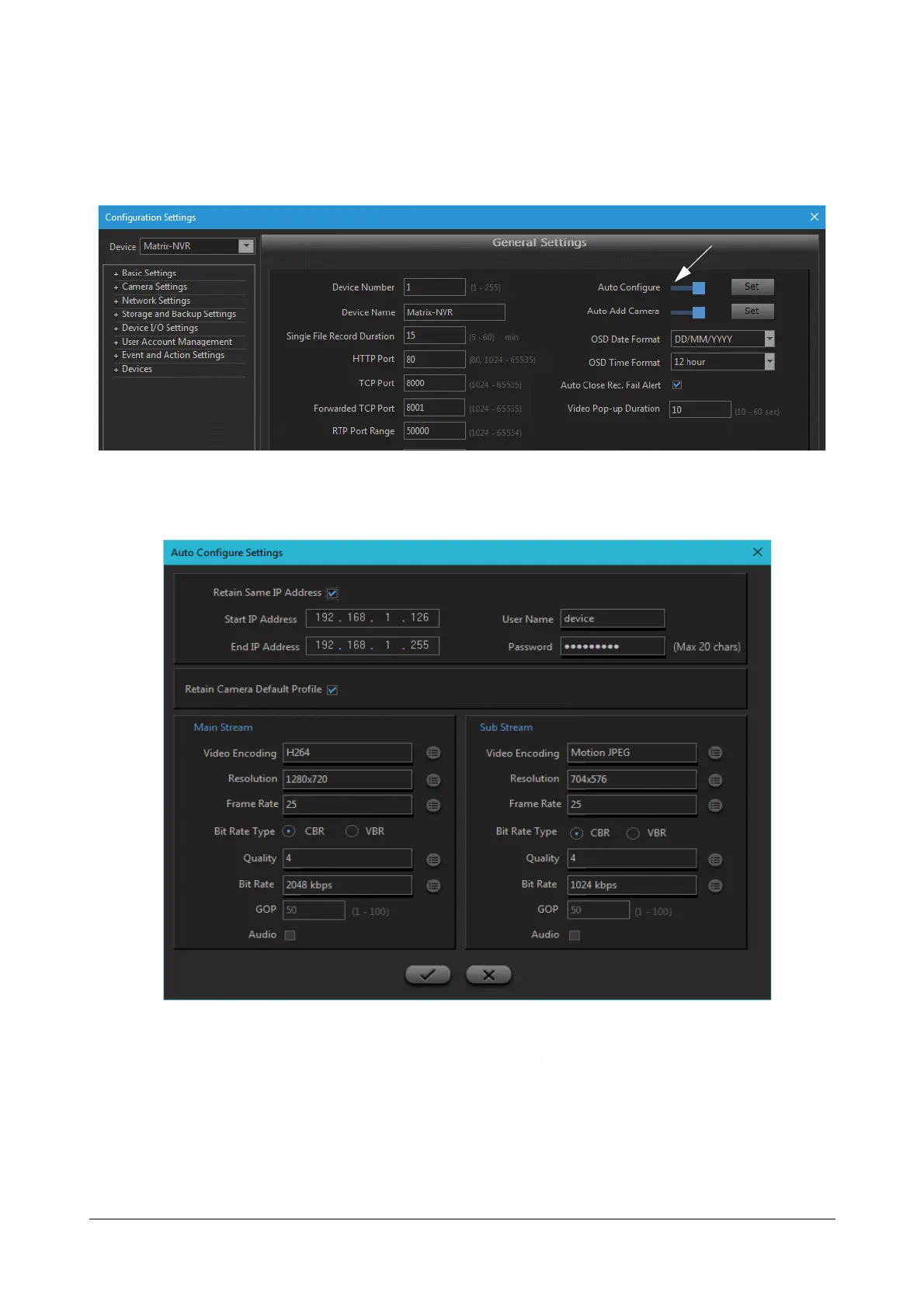

• Auto Configure Settings pop-up:
Clicking on Set button will open a Auto Configure Settings pop-up window as shown below.
• Retain same IP Address: If the box is checked then searched camera(s) will be added with same
searched IP Address. If the box is not checked then user can define the range to auto configure. All the
cameras will be assigned IP address from the defined range.
By default, this checkbox is enabled.
• Auto Configure Range: This is the range in which identified cameras will be auto configured.
• Start/End IP Range: Define a range in which you want to assign IP address to the camera by
specifying start and end IP address.
