SIMADO GFX11 System Manual
Getting to Know GFX11

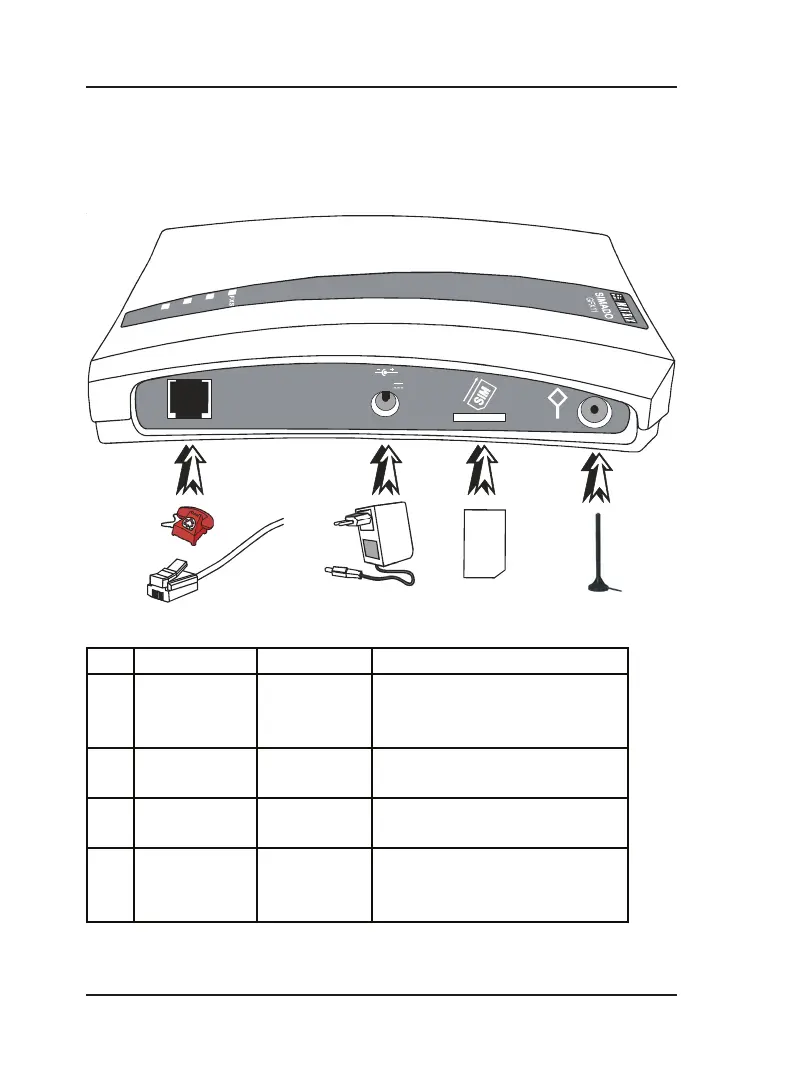

This Matrix product has all the ports located on the side panel and
LED’s located on the front panel as shown below:
Side Panel Ports:
NW
S
I
M
O
N
0.5A
(
Max
)
9VDC
FXS ANTENNA
(2)
(1)
(3)
(4)
S
I
M
Various interfaces for connection are as mentioned below:
No. Port Name Connector Description
1 Power DC Jack Power Adaptor
Output : 9Volt, 1Amp.
Input: 90-265VAC, 47-65Hz.
2 FXS RJ11 To connect analog telephone
with CLI display.
3 SIM Card Slot To insert the SIM card from
Service Provider.
4 Antenna TNC To connect the Antenna
provided with GFX11 with
cable or without cable type.
