Chapter 2, Matrox Monarch HD Hardware and Connections
Matrox Monarch HD hardware
This section explains the Matrox Monarch HD hardware components. For
hardware technical specifications, see Appendix C, “Matrox Monarch HD
Specifications.”
Streaming and recording
This section details the Monarch HD hardware components that are used for
streaming and recording.
Stream button
The Stream button’s functionality depends on the selected stream mode (RTSP or
RTMP). The Stream button is disabled when Monarch HD is set to Record-only
operating mode. For information on specifying your stream settings, see “About
page” on page 46.

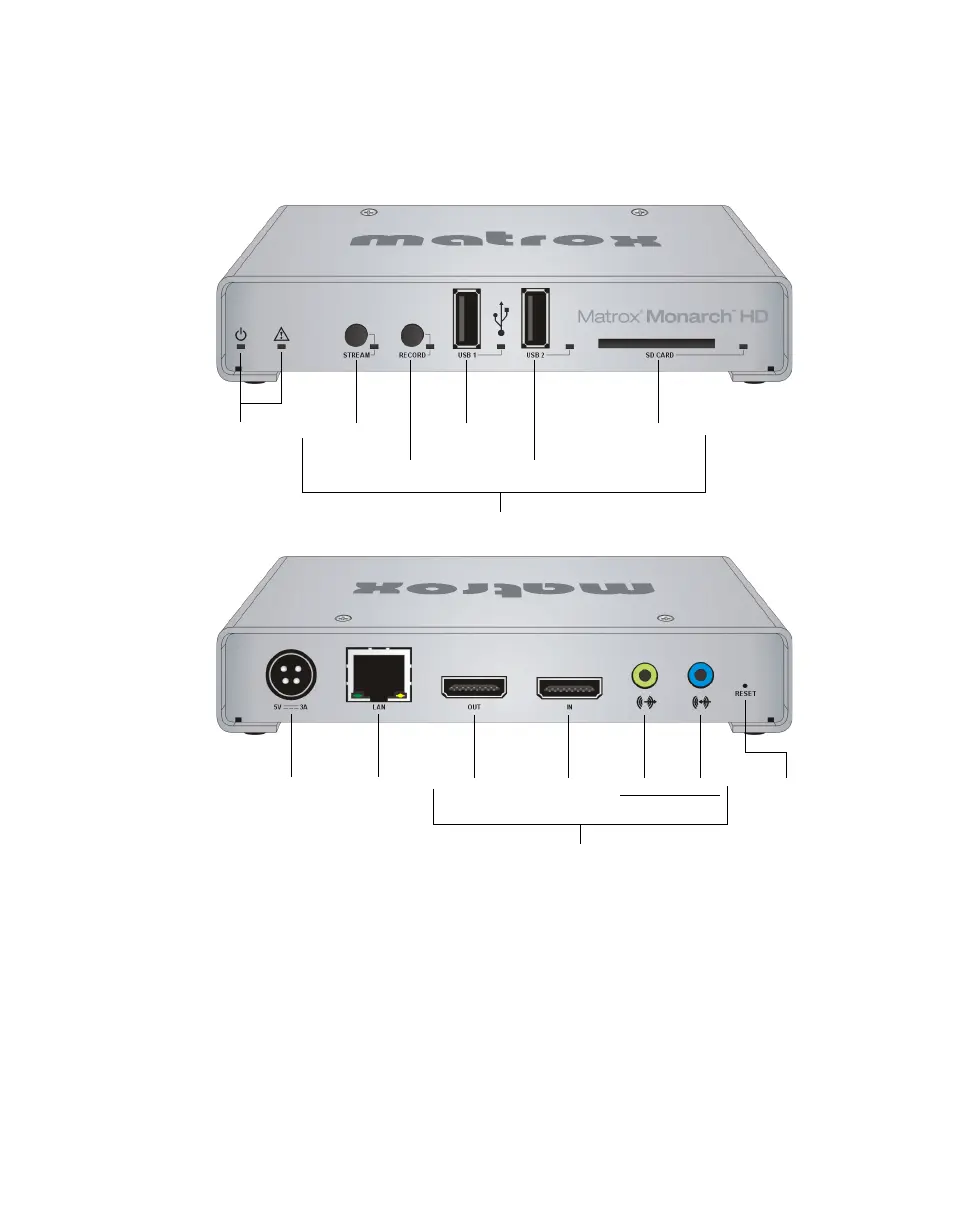

Stream button
Record button
USB port 1
USB port 2
SD card slot
LAN
HDMI out
Power
HDMI in output
Analog audio
Reset
button
Streaming and recording
input
Video/audio inputs and outputs
See “Status
LEDs” on
page 12.
