To build your own cable, you can purchase the following parts:
These parts can be purchased from third parties such as Digi-Key Corporation
(www.digikey.com).
External auxiliary I/O connector 1 on the dual DBHD-15 cable
adapter bracket
External auxiliary I/O connector 1 on the Matrox Solios eV-CLBL and Matrox
Solios eV-CLFL dual DBHD-15 cable adapter bracket is a high-density
D-subminiature 15-pin (DBHD-15
*
) male connector. It is used to
transmit/receive auxiliary signals for acquisition path 1.
❖ Auxiliary I/O connector 1 on the Matrox Solios eV-CLBL and Matrox Solios
eV-CLFL dual DBHD-15 cable adapter bracket is not compatible with display
devices. Connecting the DBHD-15 connector on the cable adapter bracket to a
VGA monitor or any other display device might damage both the device and the
board.
The pinout for external auxiliary I/O connector 1 on the Matrox Solios eV-CLBL
and Matrox Solios eV-CLFL dual DBHD-15
cable adapter bracket is identical to
the pinout for external auxiliary I/O connector 1 on the Matrox Solios eV-CLB
and Matrox Solios eV-CLF cable adapter bracket with a DBHD-15 connector;
refer to that section for the pinout table.

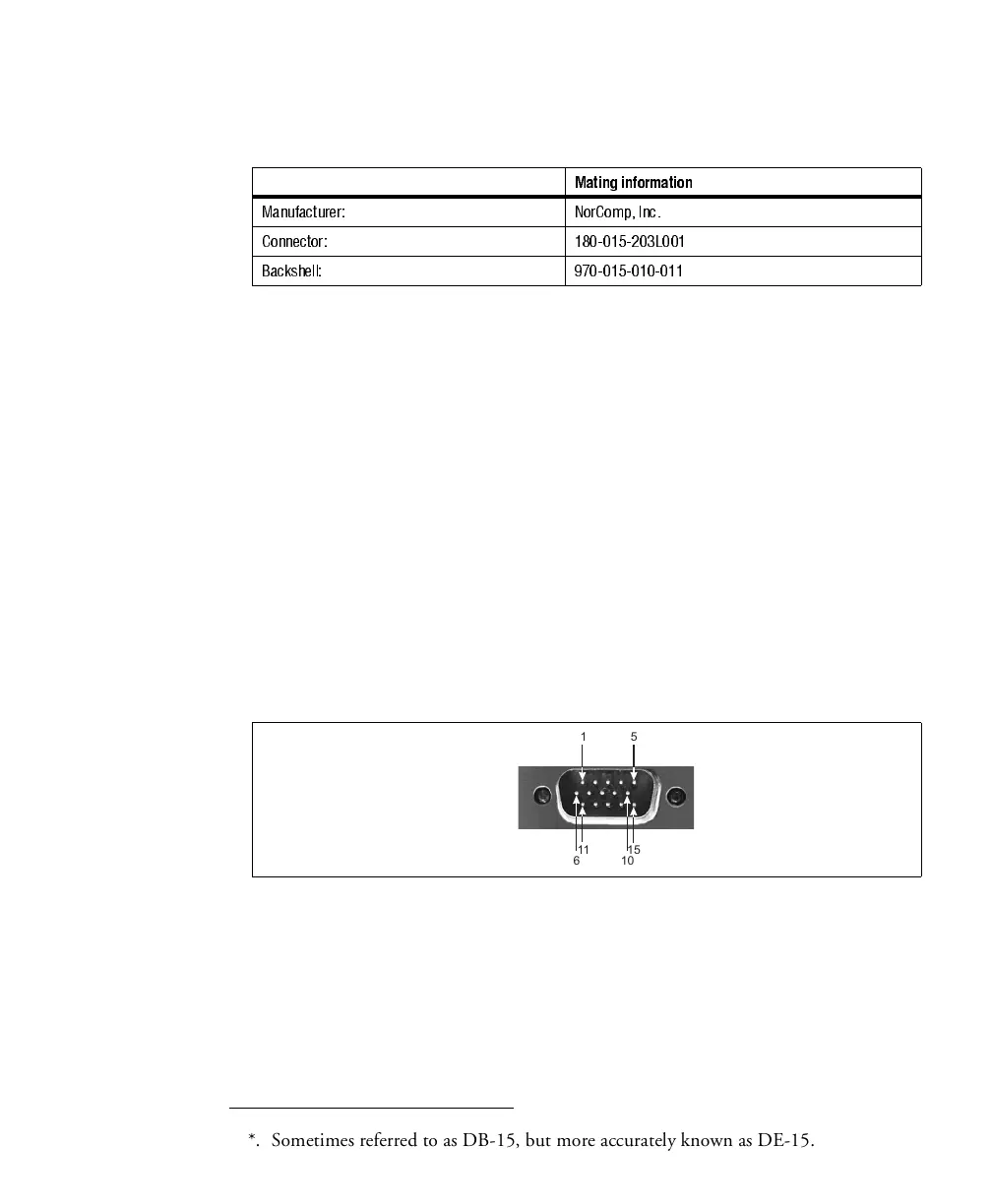

Mating information
Manufacturer: NorComp, Inc.
Connector: 180-015-203L001
Backshell: 970-015-010-011
*. Sometimes referred to as DB-15, but more accurately known as DE-15.
1
5
15
1
0
11
6
