Connectors on Matrox Solios eV-CLB and eV-CLF boards 81
Connectors on Matrox Solios eV-CLB and
eV-CLF boards

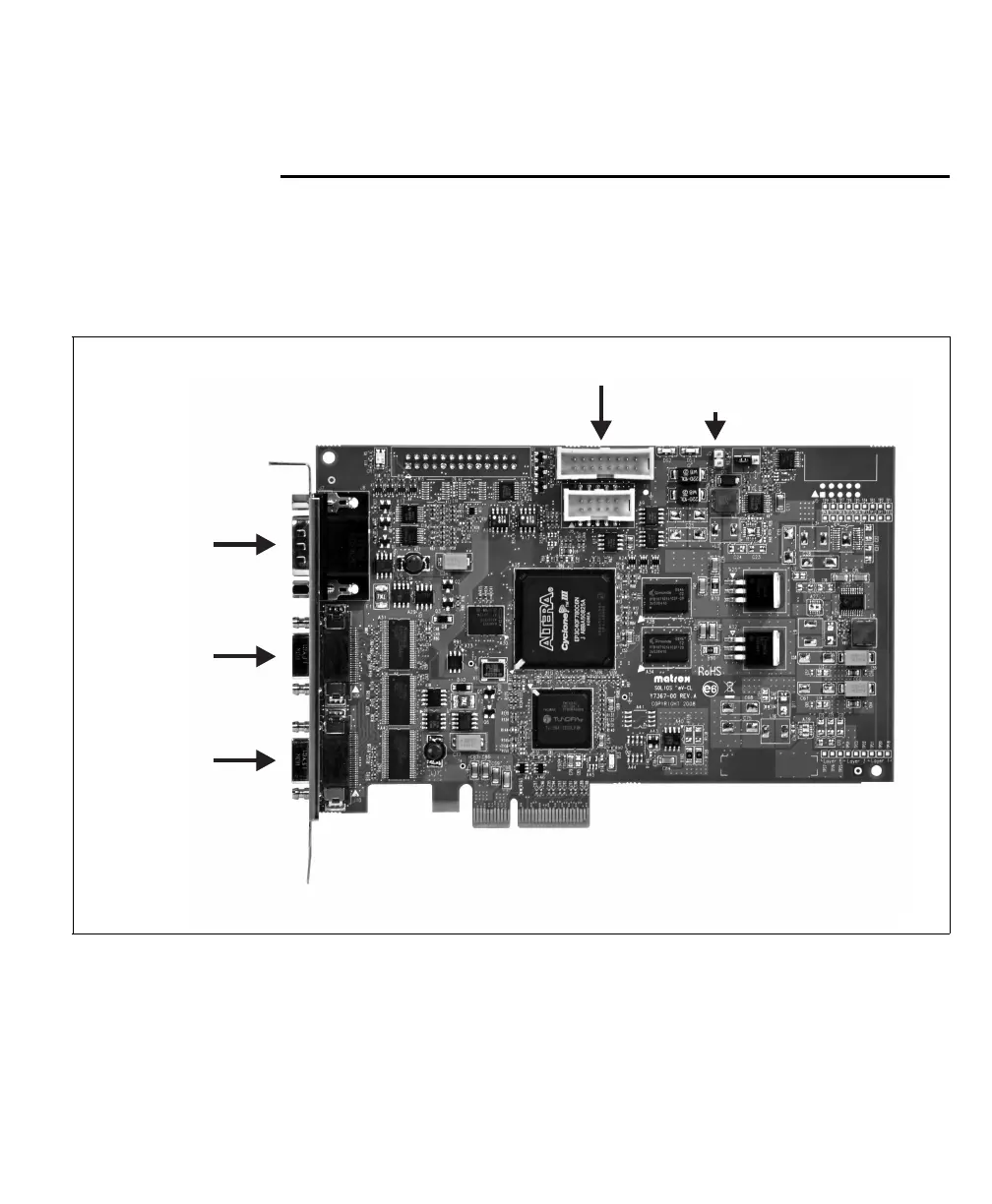

On the Matrox Solios eV-CLB and Matrox Solios eV-CLF boards, there are several
interface connectors. On their bracket, there are two mini Camera Link video
input connectors and an auxiliary I/O connector. In addition, close to the top
edge of the boards, there are two internal auxiliary I/O connectors.
Auxiliary I/O
Connector 0
Camera Link
Video Input
Connector 0
Camera Link
Video Input
Connector 1
Internal 16-pin Auxiliary I/O Connector (top)*
Internal 10-pin Auxiliary I/O Connector (bottom)*
I/O Acquisition Path Connector
*Use the 16-pin auxiliary I/O connector to connect to the DBHD-15 cable adapter bracket;
use the 10-pin auxiliary I/O connector to connect to the DB-9 cable adapter bracket.
