92 Appendix B: Technical information
Internal I/O acquisition path jumper block
The internal I/O acquisition path jumper block is a 0.1" spacing, 2-pin connector.
It is used to establish if auxiliary I/O connector 0 and auxiliary I/O connector 1
swap their pinout description.

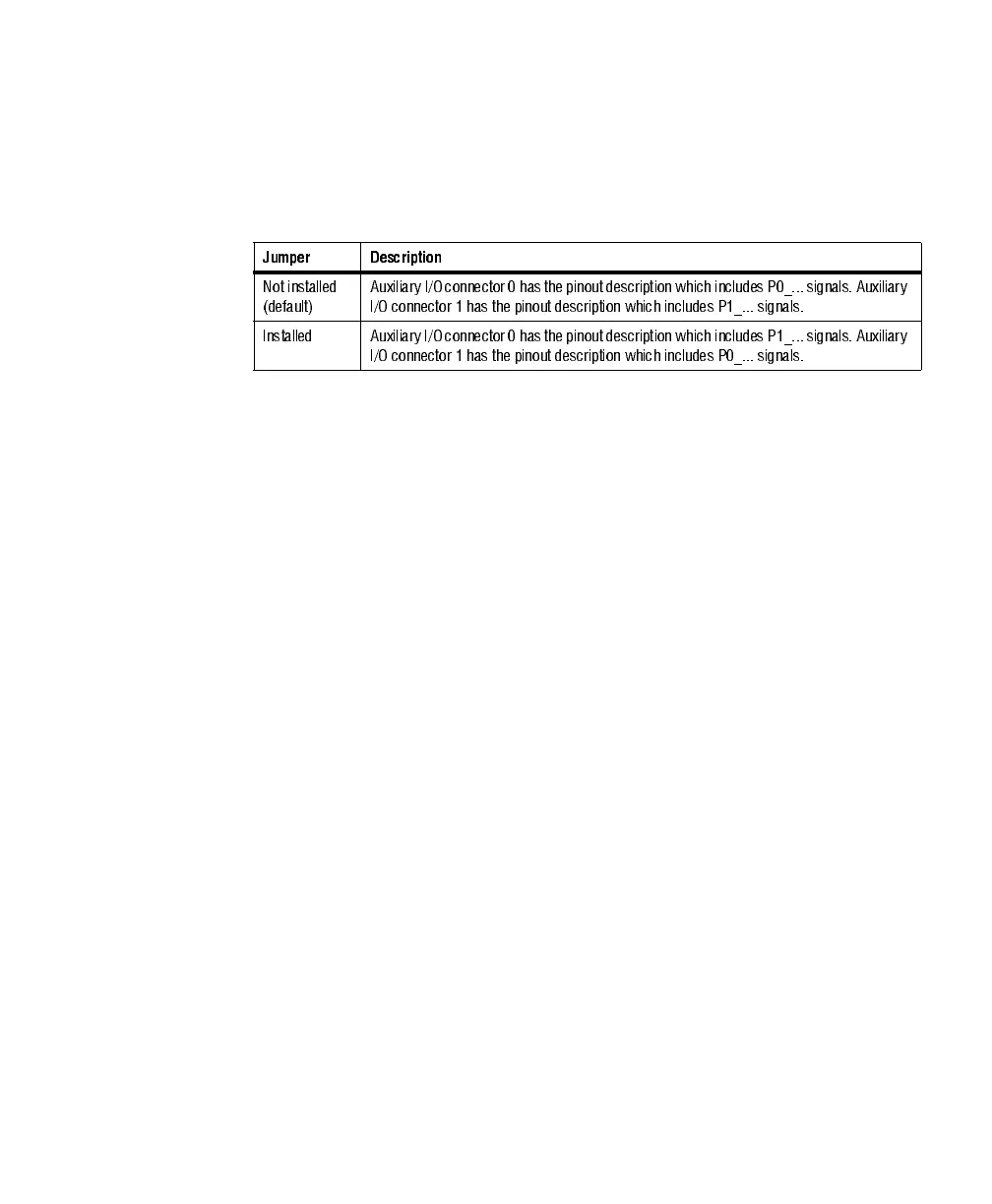

Jumper Description
Not installed
(default)
Auxiliary I/O con nector 0 has the pinou t descrip tion which in cludes P0_ ... signals. Auxili ary
I/O connector 1 has the pinout description which includes P1_... signals.
Installed Auxi liary I/O connector 0 has the pinou t descrip tion which in cludes P1_ ... signals. Auxiliary
I/O connector 1 has the pinout description which includes P0_... signals.
