Board summary 75
Technical features of Matrox Solios eV-CL
Features common to all Matrox Solios eV-CL boards
• Has a x4 PCIe Host interface.
• Supports a maximum clock frequency of up to 85 MHz. Clock frequency is also
dependent on the length of the cable used. The following are rough guidelines for
the maximum clock frequencies that can be achieved; contact your cable
manufacturer for the actual maximum clock frequency that can be achieved for
your specific cable.
• Supports frame and line-scan video sources. The min/max length for an image
and min/max width for a line are as follows:
• Can convert captured data to RGB24, RGB32, or YUV16 format. In addition,
data can be converted to 8-bit, 10-bit, 12-bit, 14-bit and 16-bit monochrome data.
• Supports line reversal and frame reversal during acquisition. Can only perform
frame reversal during data transfer to Host.

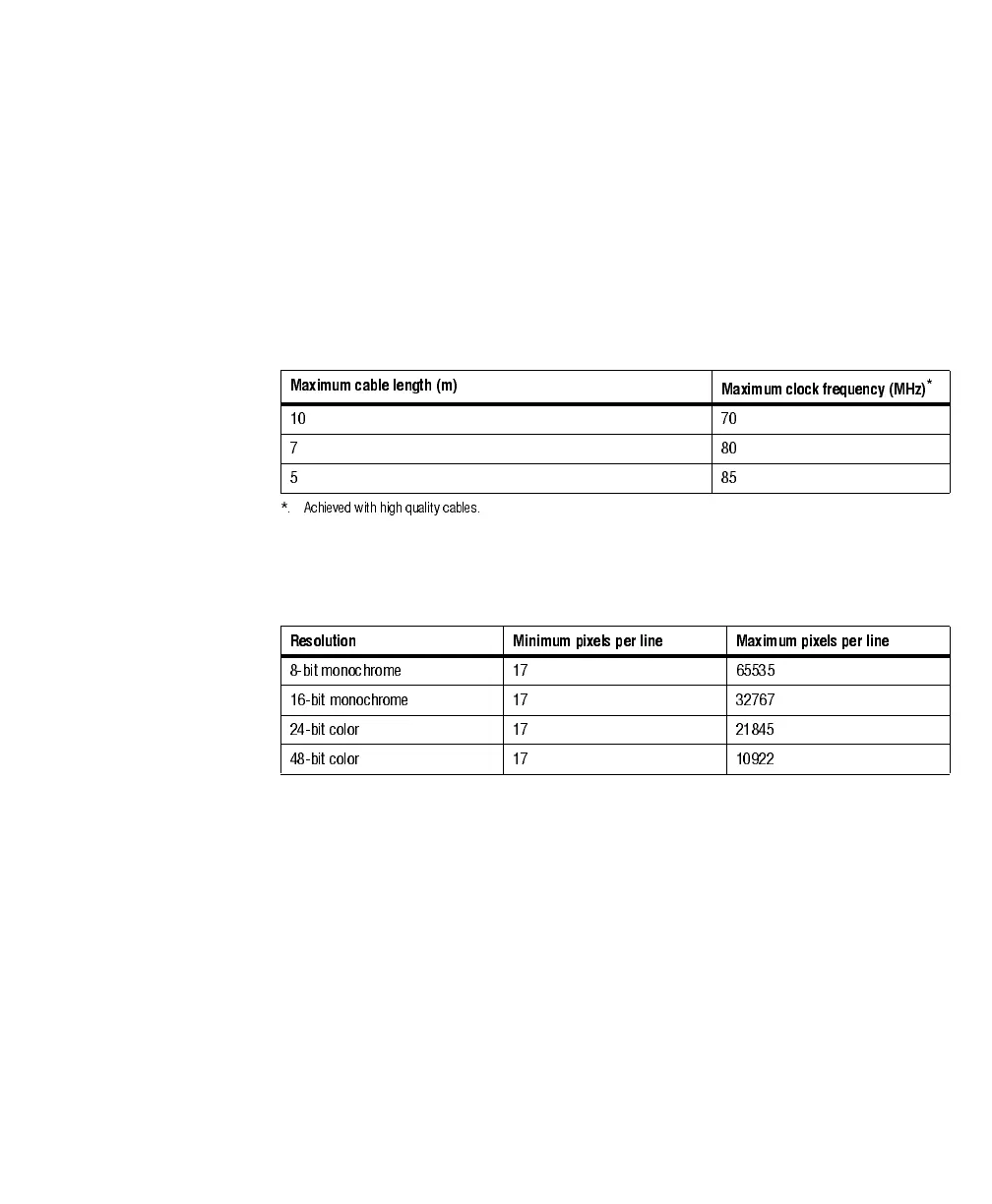

Maximum cable length (m)
Maximum clock frequency (MHz)
*
*. Achieved with high quality cables.
10 70
780
585
Resolution Minimum pixels per line Maximum pixels per line
8-bit monochrome 17 65535
16-bit monochrome 17 32767
24-bit color 17 21845
48-bit color 17 10922
