38 Chapter 4: Matrox Solios eV-CL hardware reference
Performance

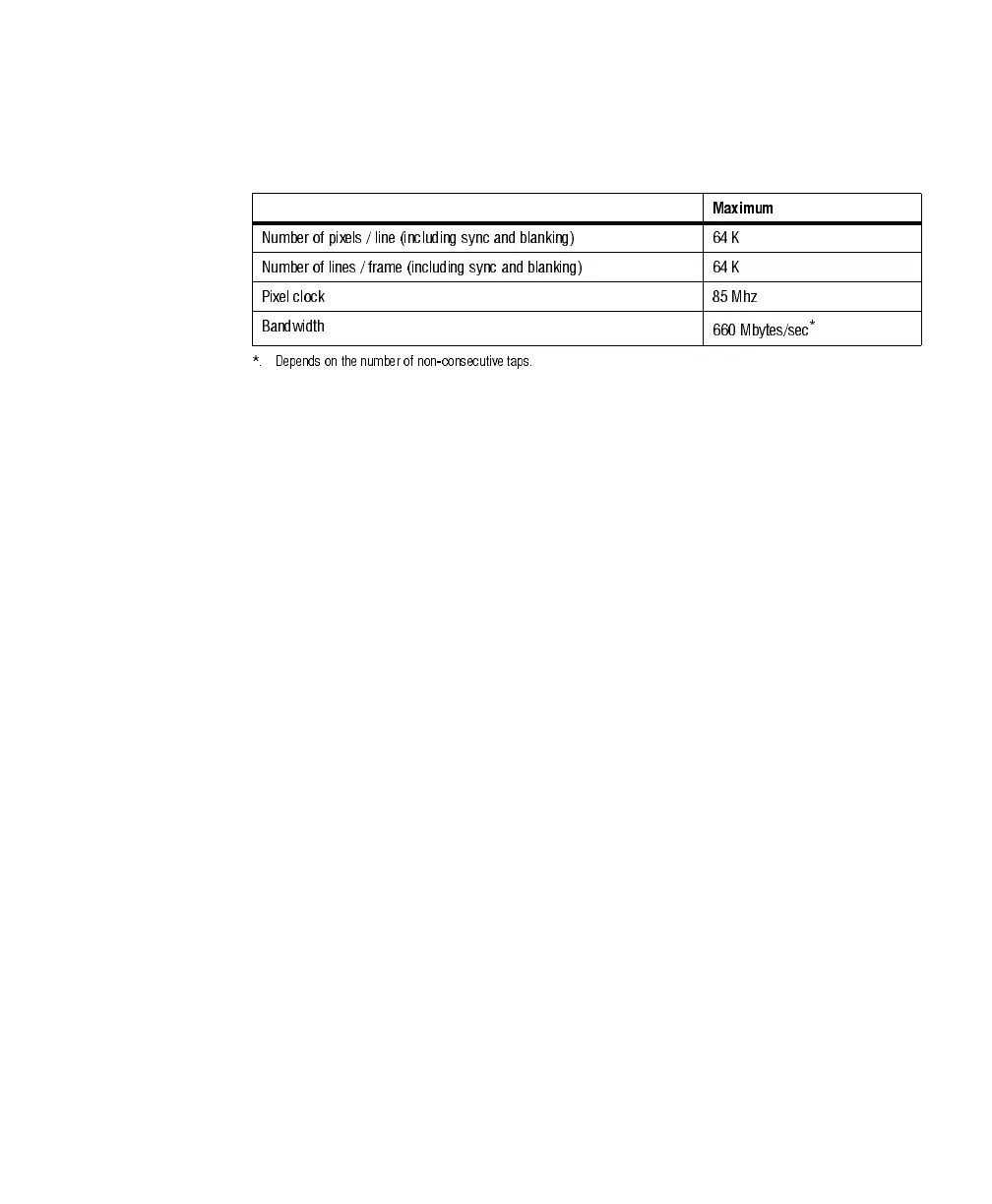

The video timing parameters supported by the board are as follows:
The maximum pixel clock frequency is dependent on the length of the cable used.
Refer to the Technical features of Matrox Solios eV-CL subsection of the Board
summary section in Appendix B: Technical information.
Acquisition
A Base-type acquisition path supports a maximum of 24 bits of video data when
acquiring from Camera Link-compliant video sources or up to 32 bits when
acquiring from non-standard time-multiplexed video sources. Similarly, a
Medium-type acquisition path can grab up to 48 bits of video data when acquiring
from Camera Link-compliant sources or up to 64 bits when acquiring from non-
standard time-multiplexed sources. Finally, a Full-type acquisition path supports
up to 64 bits of video data when acquiring from Camera Link-compliant video
sources and up to 80 bits when acquiring from non-standard video sources.
Maximum
Number of pixels / line (including sync and blanking) 64 K
Number of lines / frame (including sync and blanking) 64 K
Pixel clock 85 Mhz
Bandwidth
660 Mbytes/sec
*
*. Depends on the number of non-consecutive taps.
