Matrox Solios eV-CL - Electrical Specifications

Electrical specifications 79

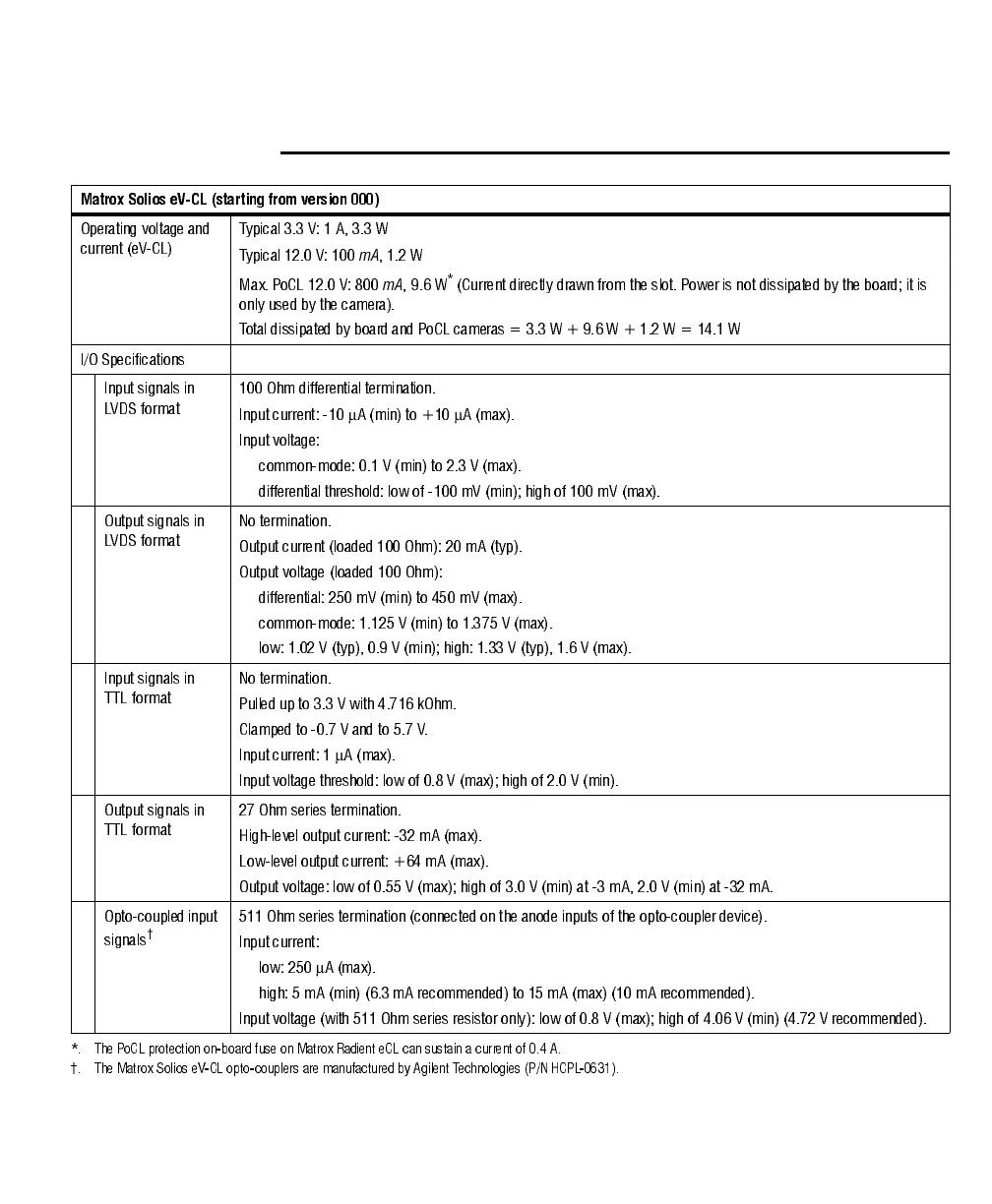

Electrical specifications
Matrox Solios eV-CL (starting from version 000)
Operating voltage and
current (eV-CL)
Typical 3.3 V: 1 A, 3.3 W
Typ ical 12.0 V: 100
mA , 1.2 W
Max. PoCL 12.0 V: 800
mA , 9.6 W
*
(Current directly drawn from the slot. Power is not dissipated by the board; it is
only used by the camera).
Total dissipated by board and PoCL cameras = 3.3 W + 9.6 W + 1.2 W = 14.1 W
I/O Specifications
Input signals in
LVDS format
100 Ohm differential termination.
Input current: -10
μ A (min) to +10 μ A (max).
Input voltage:
common-mode: 0.1 V (min) to 2.3 V (max).
differential threshold: low of -100 mV (min); high of 100 mV (max).
Output signals in
LVDS format
No termination.
Output current (loaded 100 Ohm): 20 mA (typ).
Output voltage (loaded 100 Ohm):
differential: 250 mV (min) to 450 mV (max).
common-mode: 1.125 V (min) to 1.375 V (max).
low: 1.02 V (typ), 0.9 V (min); high: 1.33 V (typ), 1.6 V (max).
Input signals in
TTL format
No termination.
Pulled up to 3.3 V with 4.716 kOhm.
Clamped to -0.7 V and to 5.7 V.
Input current: 1
μ A (max).
Input voltage threshold: low of 0.8 V (max); high of 2.0 V (min).
Output signals in
TTL format
27 Ohm series termination.
High-level output current: -32 mA (max).
Low-level output current: +64 mA (max).
Output voltage: low of 0.55 V (max); high of 3.0 V (min) at -3 mA, 2.0 V (min) at -32 mA.
Opto-coupled inp ut
signals
†
511 Ohm series termination (connected on the anode inputs of the opto-coupler device).
Input current:
low: 250
μ A (max).
high: 5 mA (min) (6.3 mA recommended) to 15 mA (max) (10 mA recommended).
Input voltage (with 511 Ohm series resistor only): low of 0.8 V (max); high of 4.06 V (min) (4.72 V recommended).
*. The PoCL protection on-board fuse on Matrox Radient eCL can sustain a current of 0.4 A.
†. The Matrox Solios eV-CL opto-couplers are manufactured by Agilent Technologies (P/N HCPL-0631).
