Connectors on Matrox Solios eV-CLBL and Matrox Solios eV-CLFL boards 93
Connectors on Matrox Solios eV-CLBL and
Matrox Solios eV-CLFL boards

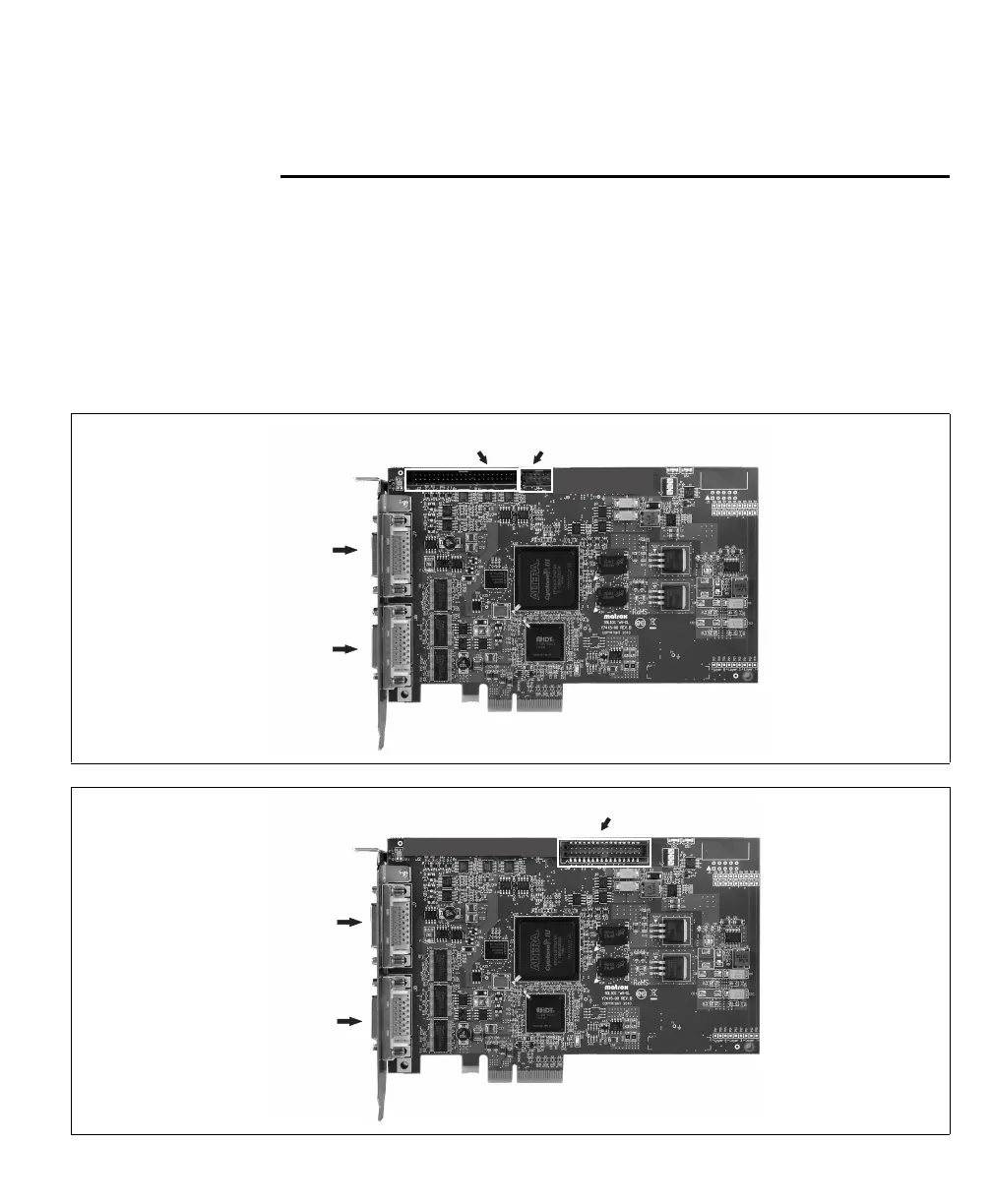

On the Matrox Solios eV-CLBL and the Matrox Solios eV-CLFL boards, there
are several interface connectors. On their bracket, there are two Camera Link video
input connectors. In addition, depending on the cable adapter bracket received,
there is either a 44-pin and 10-pin set of internal auxiliary I/O connectors for use
with the DBHD-44/DB-9 external auxiliary I/O connectors, or there is a 32-pin
internal auxiliary I/O connector for use with the dual DBHD-15 external auxiliary
I/O connectors, as shown in the following two images.
Camera Link
Video Input
Connector 0
Camera Link
Video Input
Connector 1
Internal 44-pin
Auxiliary I/O Connector
Internal 10-pin
Auxiliary I/O Connector
Internal 32-pin
Auxiliary I/O Connector
Camera Link
Video Input
Connector 0
Camera Link
Video Input
Connector 1
