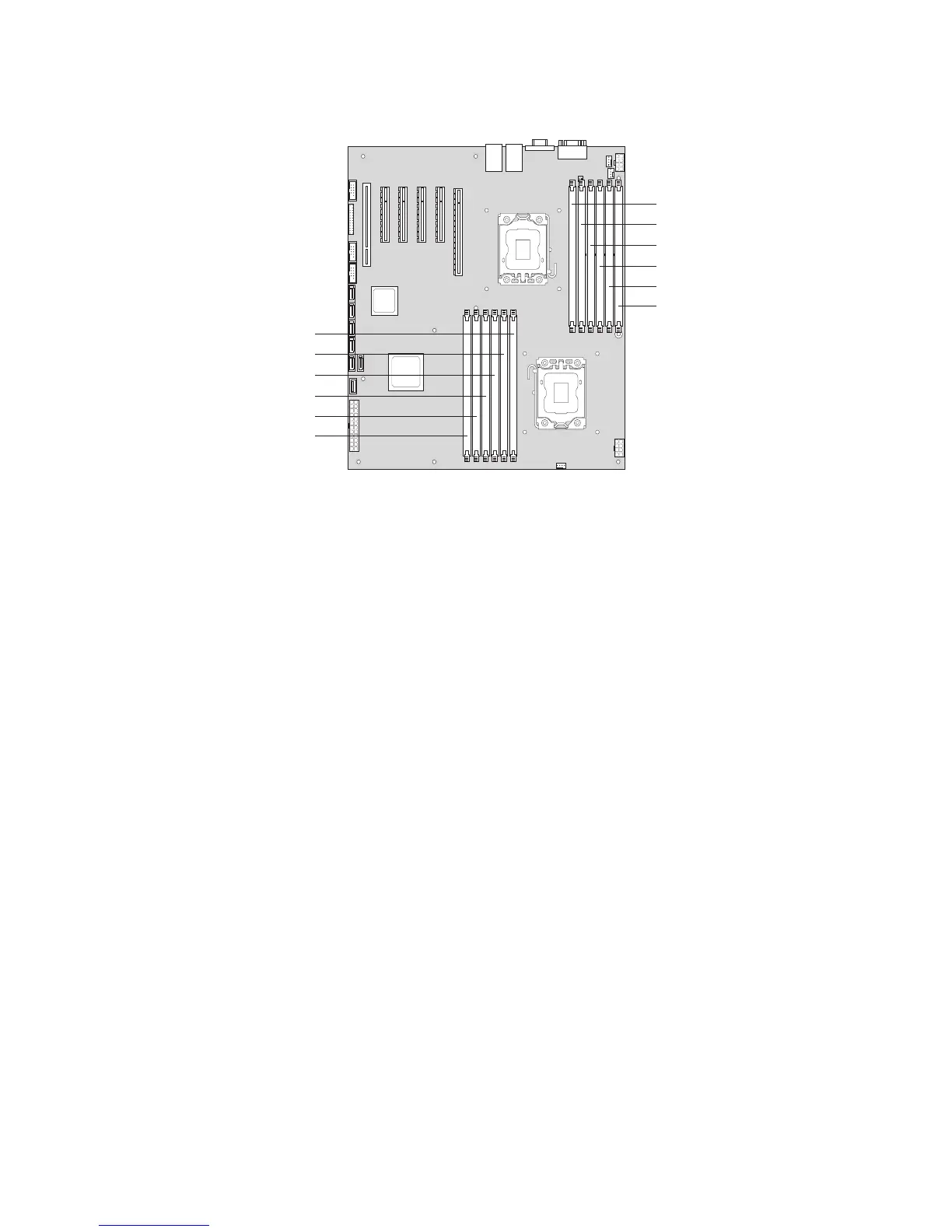

DIMM configuration is shown in the following figure.
Figure 23. DIMM Sockets
Supported memory modules:
• 1.5 V DDR3 DIMMs, registered (RDIMMs) or unbuffered (UDIMMs, with or without ECC)
• Mixing of RDIMMs and UDIMMs is not permitted
• If at least one UDIMM is installed without ECC, the entire memory is operated without ECC.
• The following DIMM and DRAM technologies are supported:
• RDIMMs:
- Single, dual and quad rank
- x4 or x8 DRAM with 1 Gbit and 2 Gbit technology; 2 GB or 4 GB RDIMMs based on 2 Gbit
DRAM are not supported
- DDR3 1333 (only single and dual rank), DDR3 1066 and DDR3 800
• UDIMMs:
- Single and dual rank
- x8 DRAM with 1 Gbit or 2 Gbit technology
- DDR3 1333, DDR3 1066 and DDR3 800
DIMM A2
DIMM A1
DIMM B2
DIMM B1
DIMM C2
DIMM C1
DIMM D2
DIMM D1
DIMM E2
DIMM E1
DIMM F2
DIMM F1
