9MAXDATA Server PLATINUM 3200 I M7
Front Panel Controls and Indicators

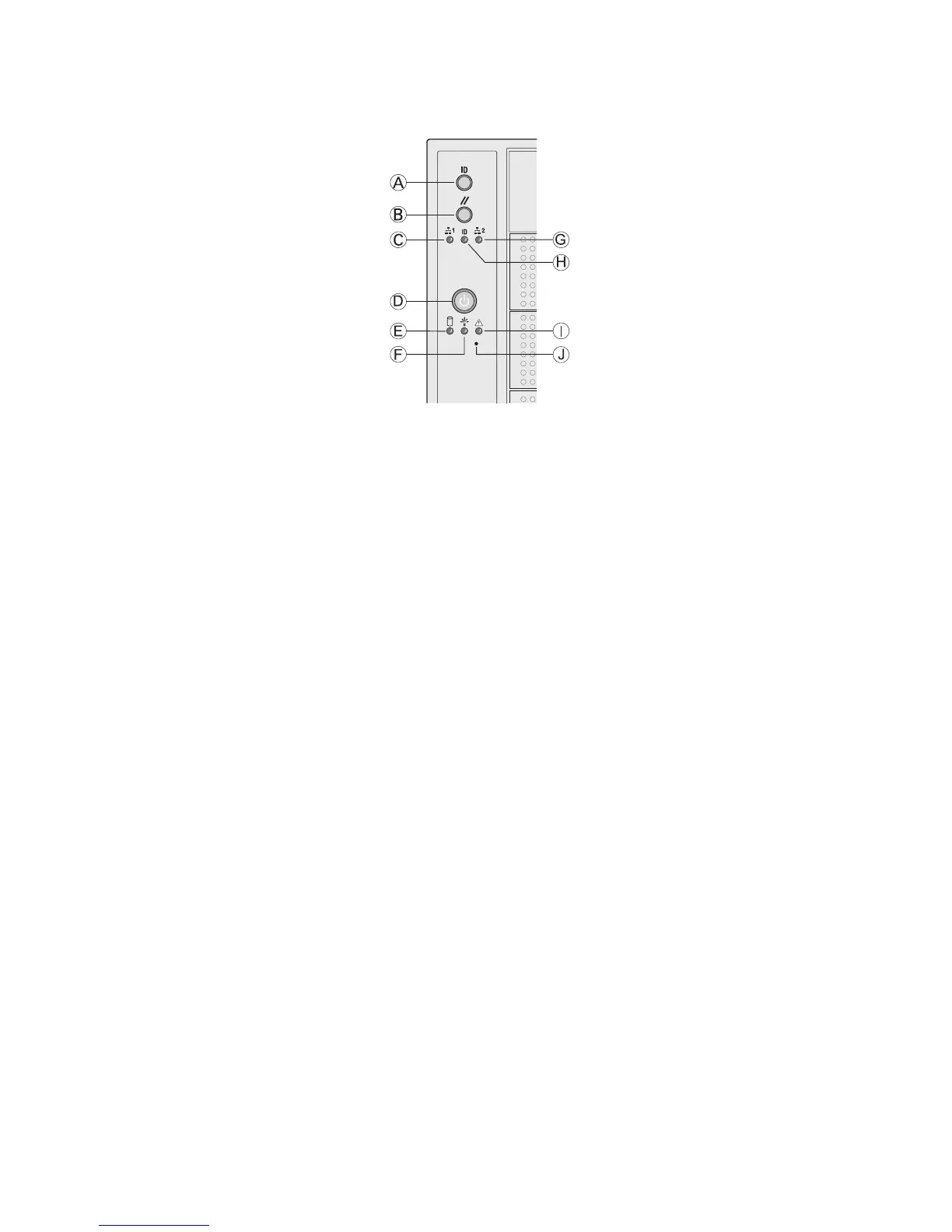

Figure 2. Pedestal Controls and Indicators
A. ID Toggle Switch F. Power/Sleep LED (green)
B. Reset Button G. NIC 2 Activity LED (green)
C. NIC 1 Activity LED (green) H. ID LED (blue)
D. Power Button I. Status LED (bi-color)
E. Hard Drive Activity LED (green) J. NMI Button
