Introduction
Part names (continued)
• Any button marked with “*” is not supported on this projector (70).
• Some keys are unavailable when OSD MESSAGE is set to INHIBIT(
56).
NOTE

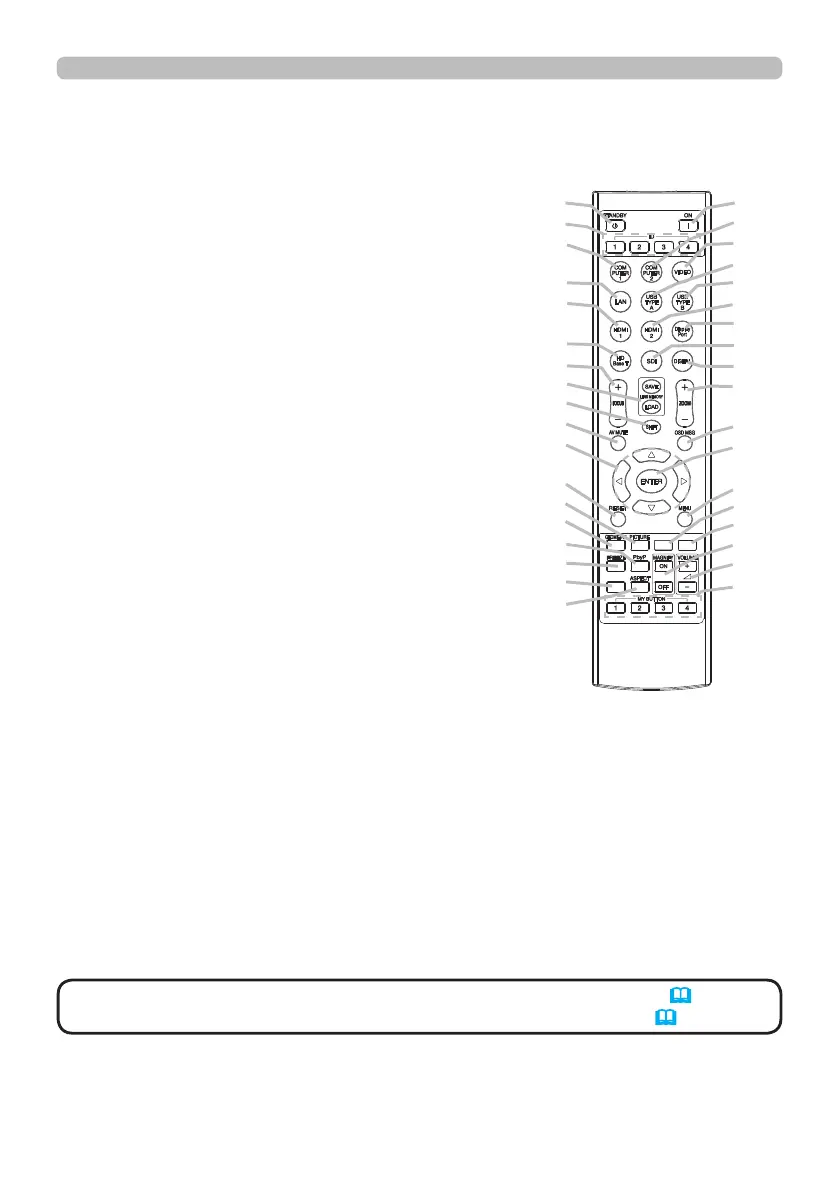

Remote control
(1) STANDBY button
(2) ON button
(3) VOLUME + / - buttons *
(4) AV MUTE button
(5) COMPUTER 1 button
(6) COMPUTER 2 button
(7) VIDEO button *
(8) LAN button *
(9) USB TYPE A button *
(10) USB TYPE B button *
(11) HDMI 1 button
(12) HDMI 2 button
(13) Display Port button *
(14) HDBaseT button
(15) SDI button
(16) DIGITAL button
(17) FOCUS + / - button
(18) LENS MEMORY SAVE / LOAD button
(19) SHIFT button
(20) ZOOM + / - buttons
(21) GEOMETRY button
(22) ASPECT button
(23) PICTURE button
(24) FREEZE button
(25) PbyP button
(26) MAGNIFY ON / OFF buttons
(27) MY BUTTON - 1 / 2 / 3 / 4 buttons
(28) MENU button
(29) RESET button
(30) ENTER button
(31) ▲/▼/◄/► cursor buttons
(32) ID-1 / 2 / 3 / 4 buttons
(33) OSD MSG button
(34) NETWORK button
(35) INTERACTIVE button *
(36) INFO button
(2)
(6)
(7)
(9)
(10)
(12)
(13)
(15)
(16)
(20)
(33)
(30)
(28)
(34)
(35)
(26)
(3)
(27)
INFO
NETWORK
INTERACTIVE
(1)
(32)
(5)
(8)
(11)
(14)
(17)
(18)
(19)
(4)
(31)
(29)
(23)
(21)
(25)
(24)
(36)
(22)
