Maxim Integrated MAX2771 - Page 11

(MAX2771 EV kit, V
CC
= 2.7V to 3.3V, T
A
= -40°C to +85°C. Registers are set to the default power-up states. LNA input is driven from
a 50Ω source. LNA input has specied external matching circuit. All RF measurements are done in the analog output mode with ADC
bypassed. PGA gain is set to GAININ = 111010 except for IF lter response plots in which case it is set to GAININ = 000100. For IF lter
response plots, MIXPOLE = 1. Maximum IF output load is not to exceed 10kΩ||7.5pF on each pin. Typical values are at V
CC
= 2.85V
and T
A
= +25°C, unless otherwise noted.)
-50
-40
-30
-20
-10
0
10
0 1 2 3 4 5 6 7 8 9 10
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
3
RD

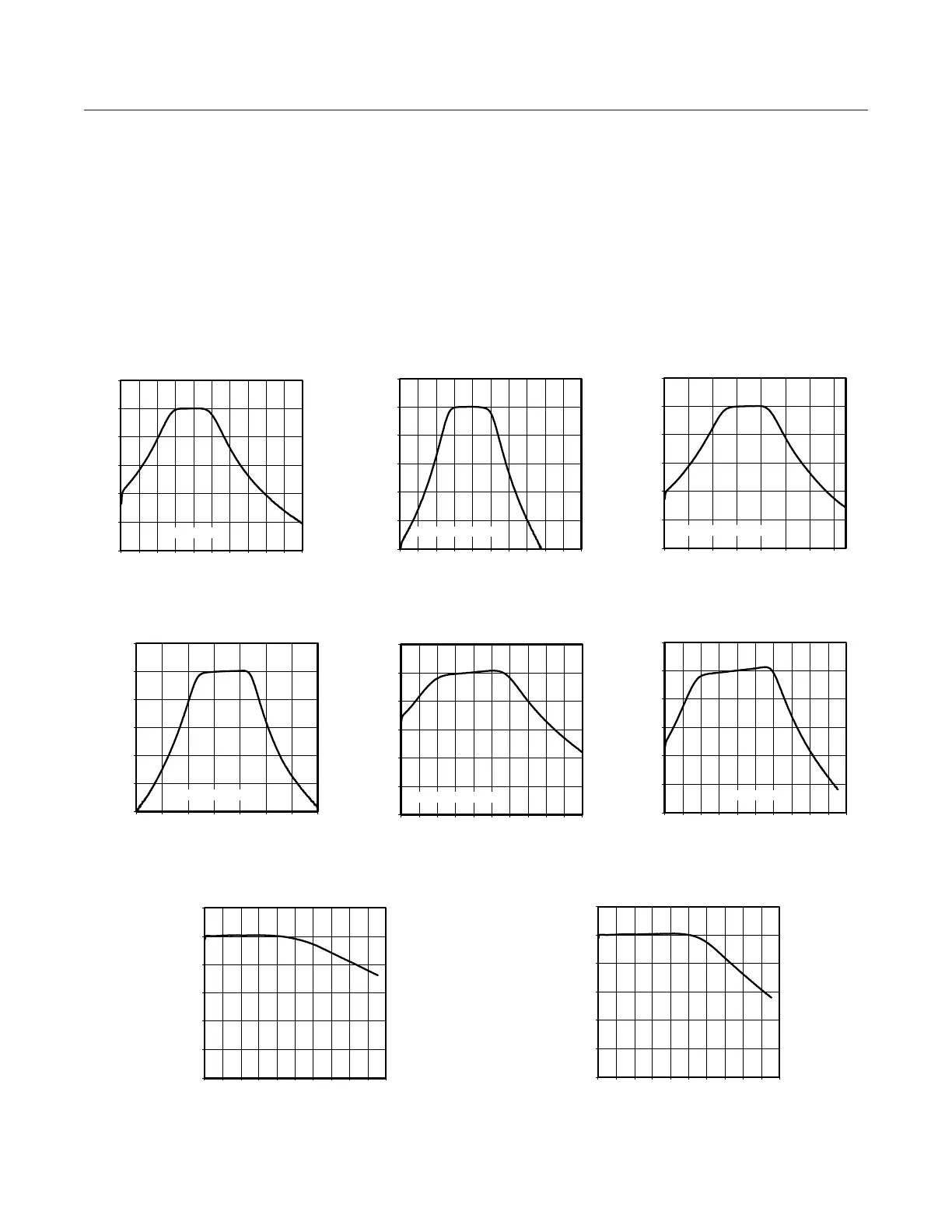

-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 000)
toc09
FCEN = 1011000
Typical Operating Characteristics (continued)
-50
-40
-30
-20
-10
0
10
0 1 2 3 4 5 6 7 8 9 10
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
5
TH
-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 000)
toc10
FCEN = 1011000
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14 16 18 20
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
3
RD
-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 001)
toc13
FCEN = 1101001
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14 16 18 20
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
5
TH
-ORDER LOW-PASS FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 011)
toc16
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
3
RD
-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 010)
toc11
FCEN = 1011000
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14 16 18 20
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
5
TH
-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 001)
toc14
FCEN = 1101001
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
5
TH
-ORDER POLYPHASE FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 010)
toc12
FCEN = 1011000
-50
-40
-30
-20
-10
0
10
0 2 4 6 8 10 12 14 16 18 20
MAGNITUDE (dB)
BASEBAND FREQUENCY (MHz)
3
RD
-ORDER LOW-PASS FILTER RESPONSE
vs. BASEBAND FREQUENCY (FBW = 011)
toc15
