1.1 Information regarding this manual
Maximator gas boosters can be used for a variety of applications. They are used
to deliver gases and compress them to high pressures. This manual applies to all
gas boosters with the following options in the order code: DLE, 8DLE, 14DLE,
MDLE, SDLE and a serial number above 20000001.
The general drawing included is an integral part of this manual, and must be
stored with it.
1.2 Order code

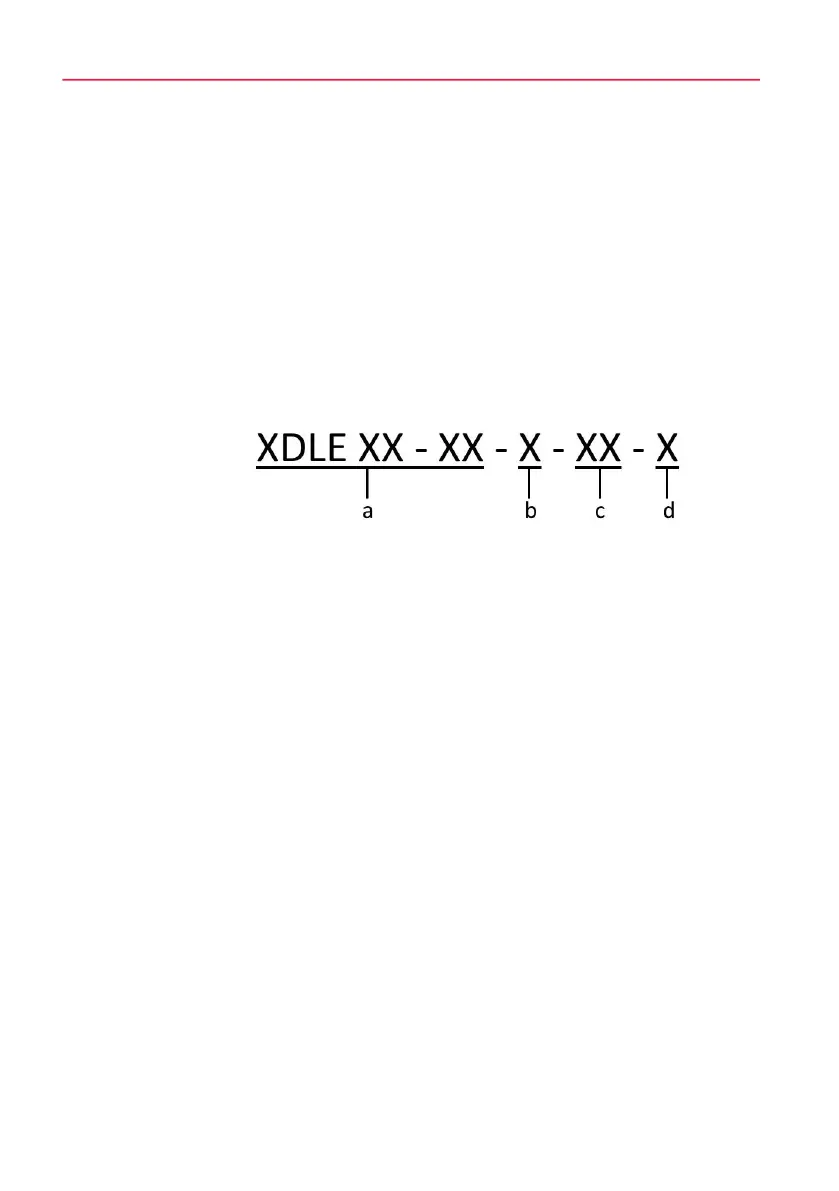

The order code for gas boosters is structured as follows:
a Model
b Number of drive pistons
without = 1 drive piston
2= 2 drive pistons
3= 3 drive pistons
c Thread (gas inlet and outlet)
G = pipe thread (standard)
U = high-pressure connection (UNF)
N = NPT
d Option code
Additional codes for device options and/or variants may be en-
tered here.
