General information
0000000141 - 002 - EN 6
1.3 Rating plate
The rating plate is located on the drive cylinder of the gas booster and contains
the following information:
1
:

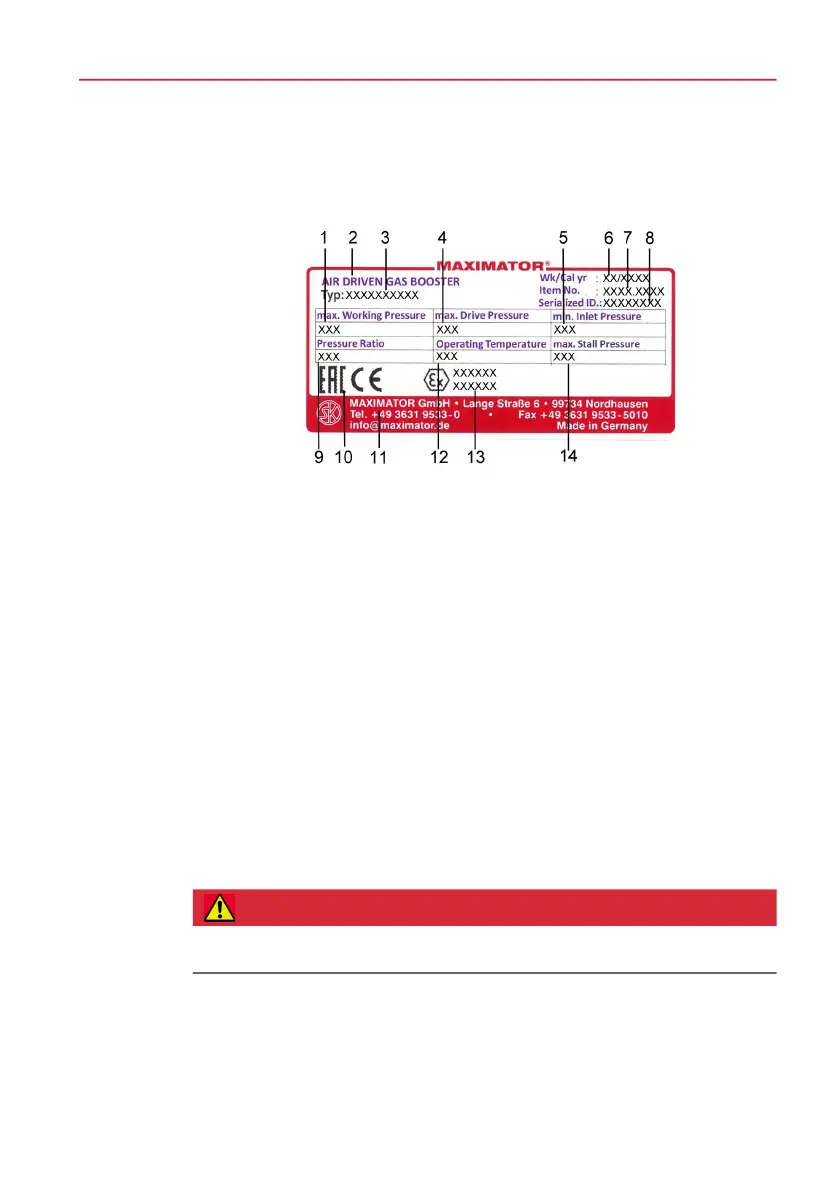

Fig. 1-1 Gas booster rating plate
1.4 Explanation of symbols
DANGER
This combination of symbol and signal word indicates a hazardous situation
which - if not avoided - may lead to severe injuries or death.
1
Individual gas boosters may have different rating plates, e.g. made of metal
1 Maximum permitted operating
pressure
2 Compressed air driven gas boost-
er
3 Type (specifications from the or-
der code)
4 Maximum drive pressure
5 Minimum inlet pressure
6 Calendar week/year of manufac-
ture
7 Article number
8 Serial number
9 Pressure ratio
10 EAC label
11 Manufacturer contact informa-
tion
12 Operating temperature range
13 ATEX label
14 Maximum standstill pressure
