maxon motor control
ESCON Servo Controller Document ID: rel4734
3-15
ESCON Module 50/5 Hardware Reference Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
3.3.2 Hall Sensor

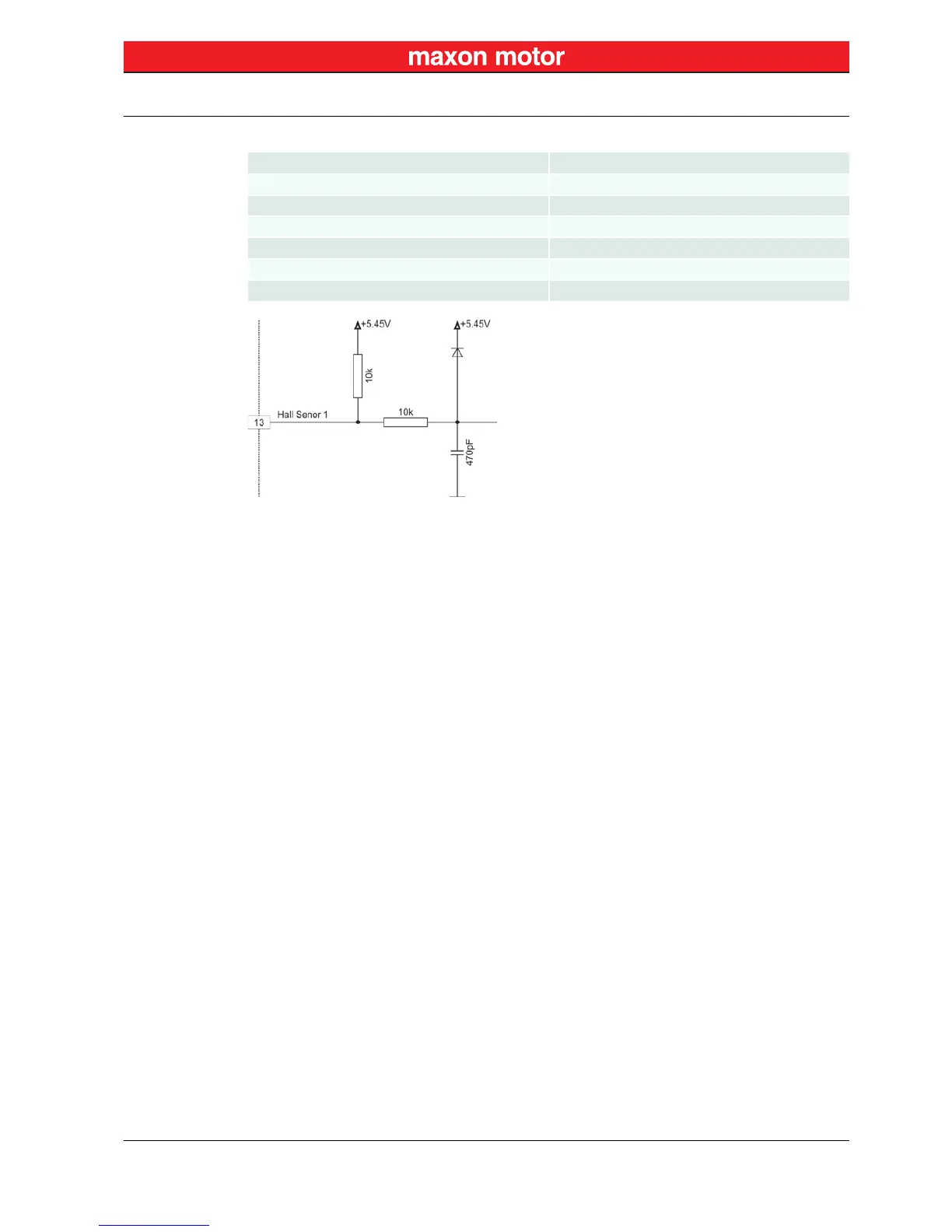

Figure 3-4 Hall Sensor 1 Input Circuit (analogously valid also for Hall Sensors 2 & 3)
Hall sensor supply voltage +5 VDC
Max. Hall sensor supply current 30 mA
Input voltage 0…24 VDC
Max. input voltage +24 VDC
Logic 0 typically <1.0 V
Logic 1 typically >2.4 V
Internal pull-up resistor 10 kΩ (referenced to +5.45 V)
