maxon motor ESCON Module 50/5 - Page 46

Motherboard Design Guide
ESCON Module Motherboard (438779)
maxon motor control
5-46 Document ID: rel4734 ESCON Servo Controller
Edition: November 2014 ESCON Module 50/5 Hardware Reference
© 2014 maxon motor. Subject to change without prior notice.
5.7.3 Wiring
Note
The USB interface is located directly at the ESCON Module 50/5.
Note
The subsequent diagrams feature this symbol:
• Ground safety earth connection (optional)
5.7.3.1 DC Motors
MAXON DC MOTOR

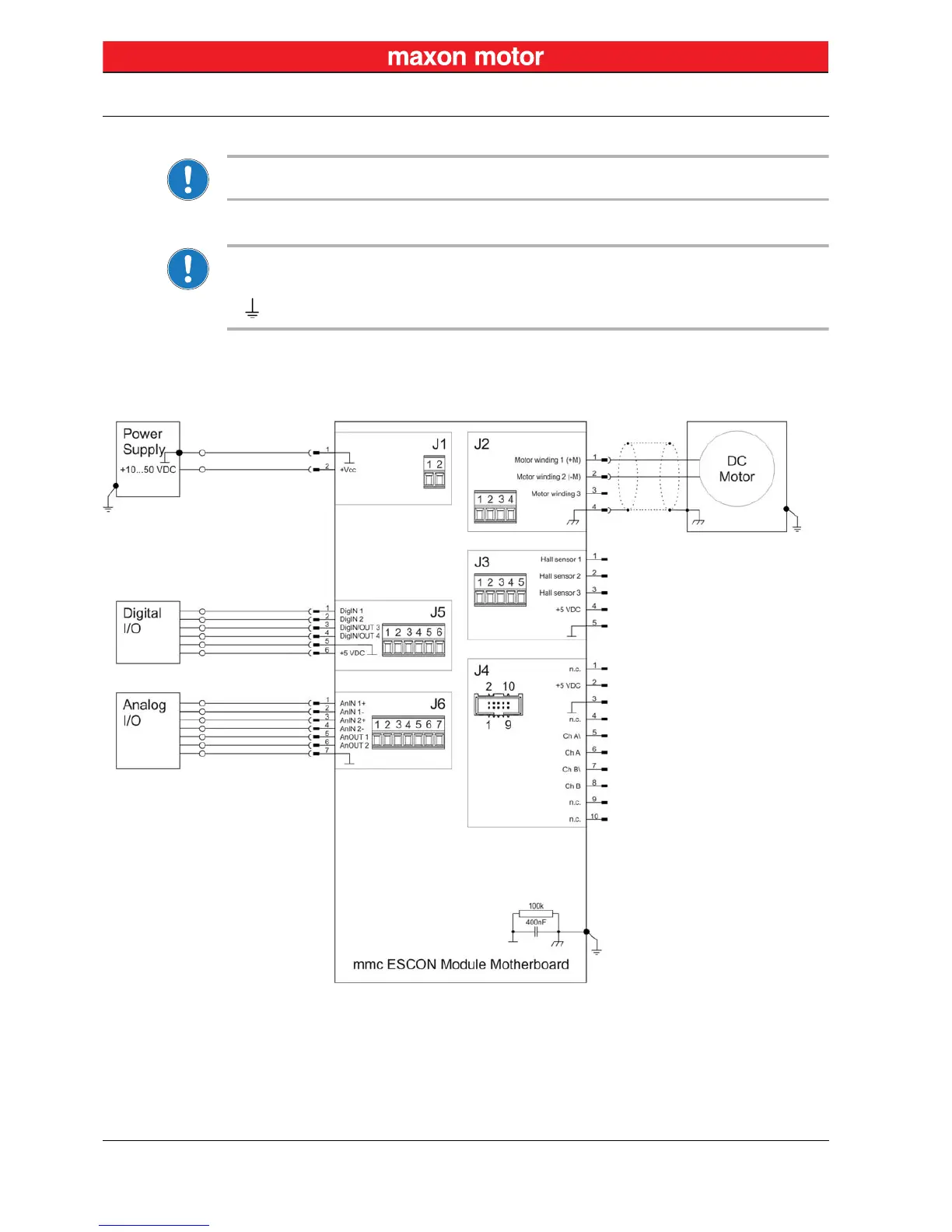

Figure 5-35 ESCON Module MoBo – maxon DC motor (J2)
