Motherboard Design Guide
ESCON Module Motherboard (438779)
maxon motor control
ESCON Servo Controller Document ID: rel4734
5-47
ESCON Module 50/5 Hardware Reference Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
MAXON DC MOTOR WITH DC TACHO

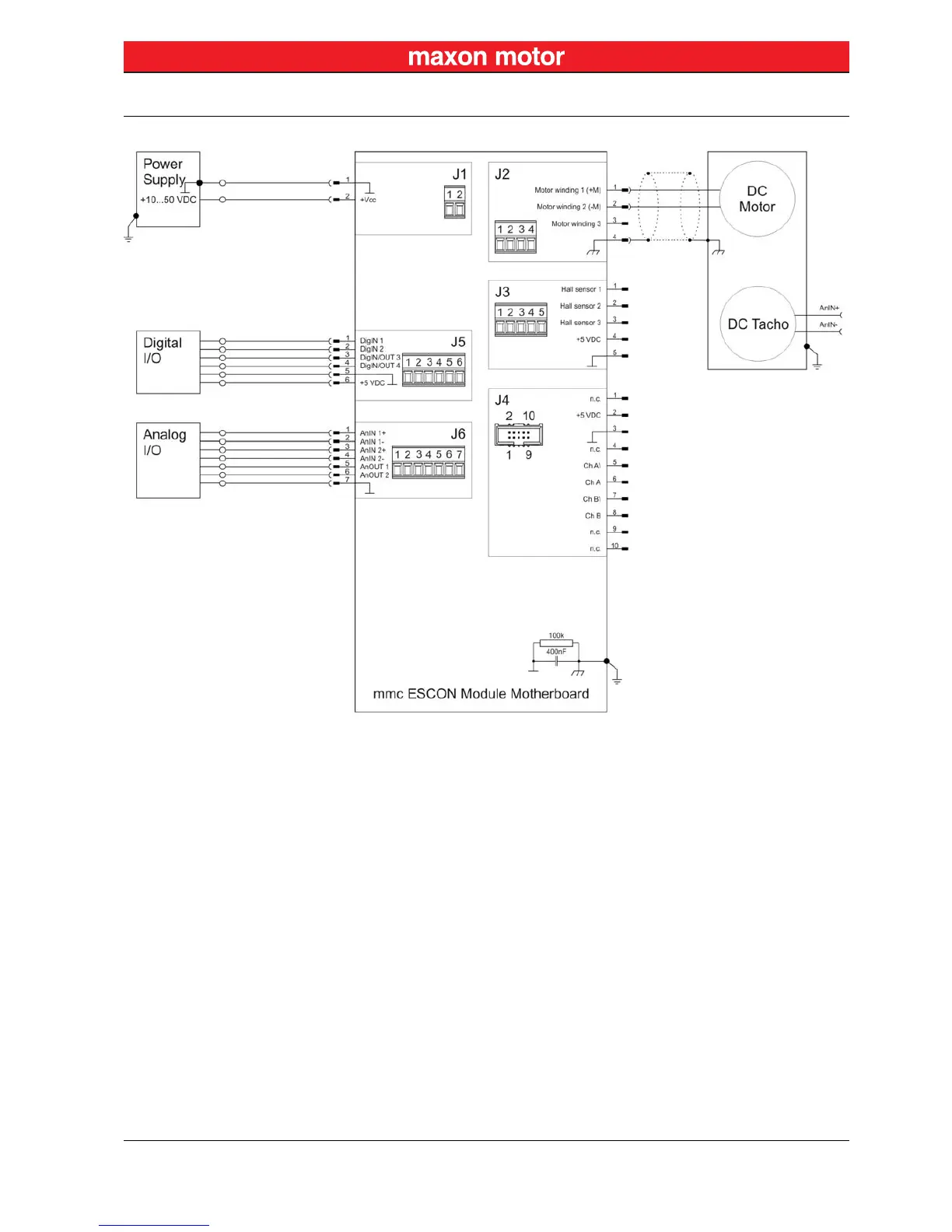

Figure 5-36 ESCON Module MoBo – maxon DC motor with DC Tacho (J2)
