MaxxOne Falcon - 1.2 Rear Panel Connections

USER MANUAL
2
1.2 Rear Panel

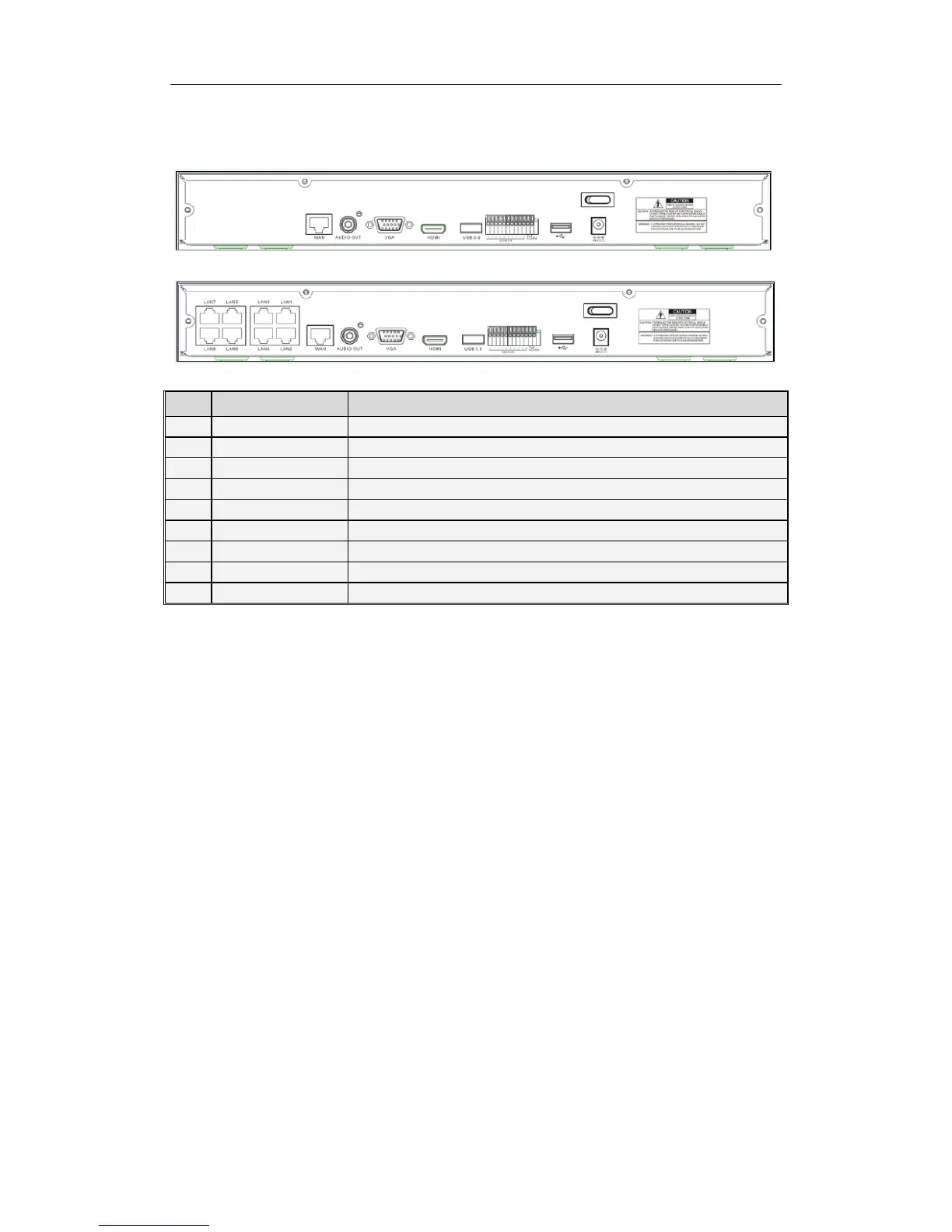

NVR Rear Panel（For reference only）
Item
Physical Port
Connection Method
1
Power Port
Startup and shutdown
2
Power Switch
Connect the attached power supply
3
USB Port
Connect USB devices, such as USB mouse and USB flash disk.
4
Sensor/Alarm
Connect to sensor or alarming device
5
HDMI Port
HDMI high definition port
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
AUDIO OUTPUT
Audio signal output, RCA interface
8
WAN Port
Network input interface of the router/Connect to web camera.
9
LAN Port
LAN network interface, support POE, can supply power to the camera.
Table 1-2
